TPT-10500EQ 1 Ohm
TPT-10500EQ 1 Ohm is backordered and will ship as soon as it is back in stock.
Warranty Information
Warranty Information
Timpano Audio warrants all new products from any manufacturing defects in materials or workmanship under normal usage for a period not to exceed (1) year from the original purchase date.
If you need assistance for a warranty claim, please choose visit this page - Warranty Center
Delivery and Shipping
Delivery and Shipping
FREE SHIPPING! - 48-States on Orders Over $18 - Order before 1PM EST and Your Order will Ship on the Same Day
Description
Description

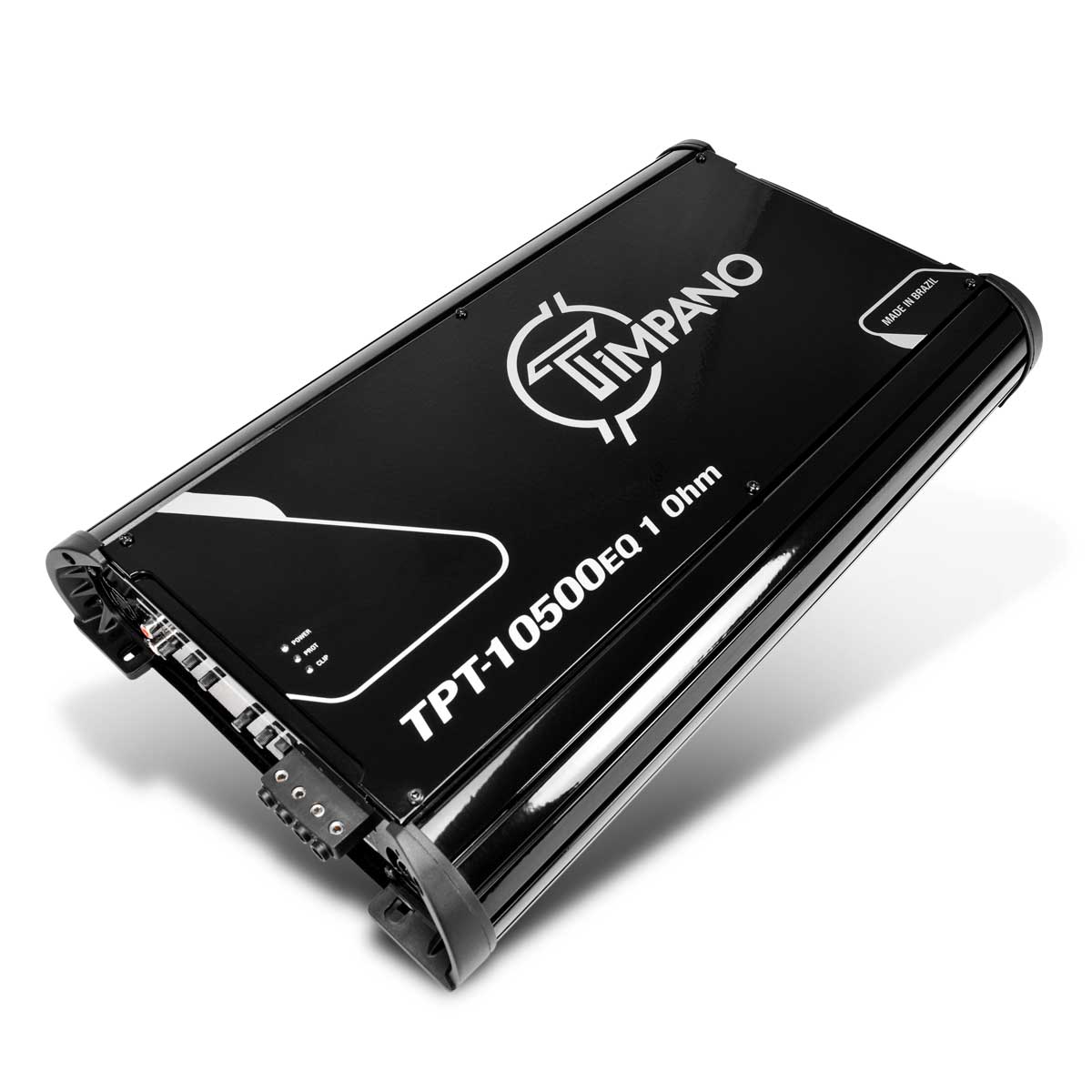

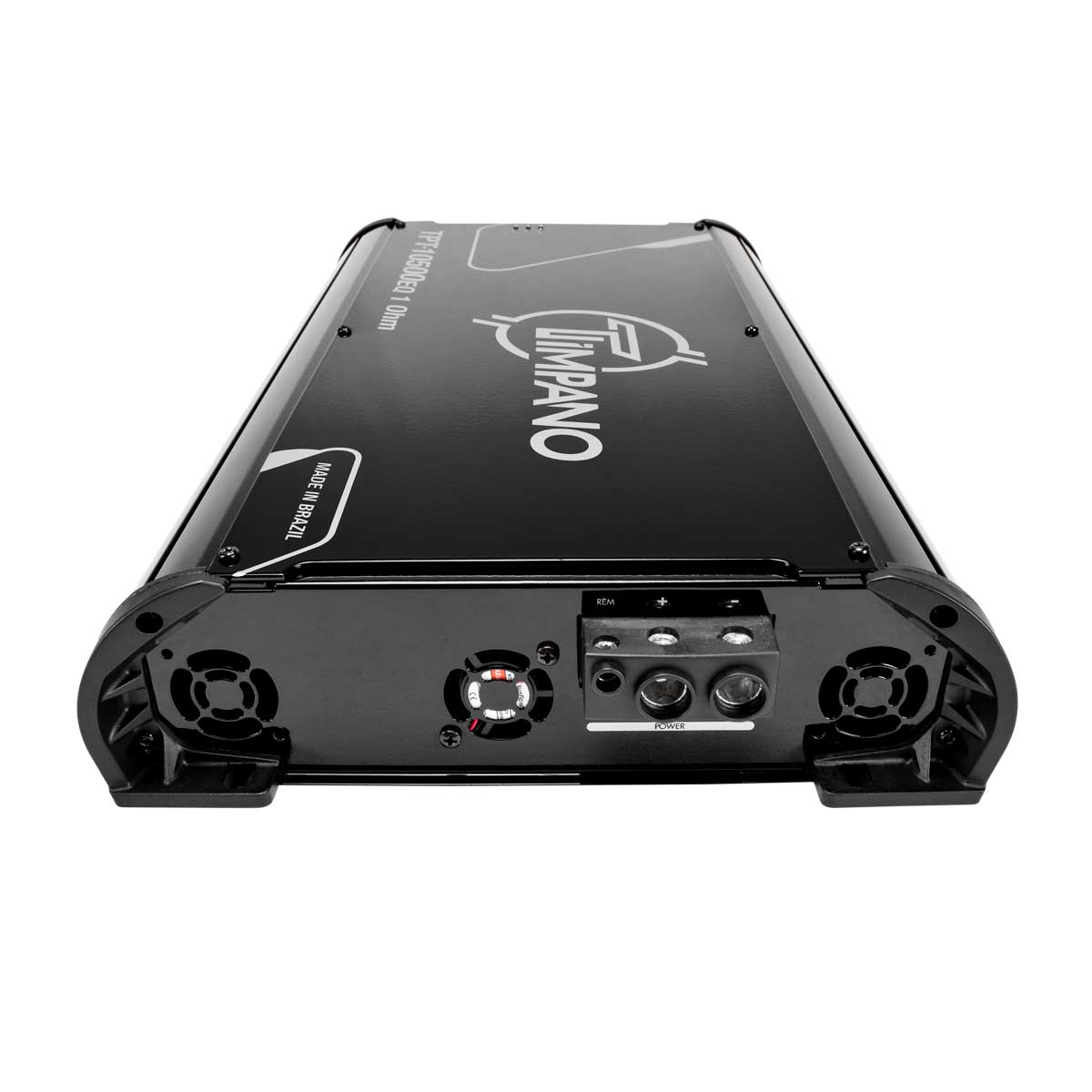

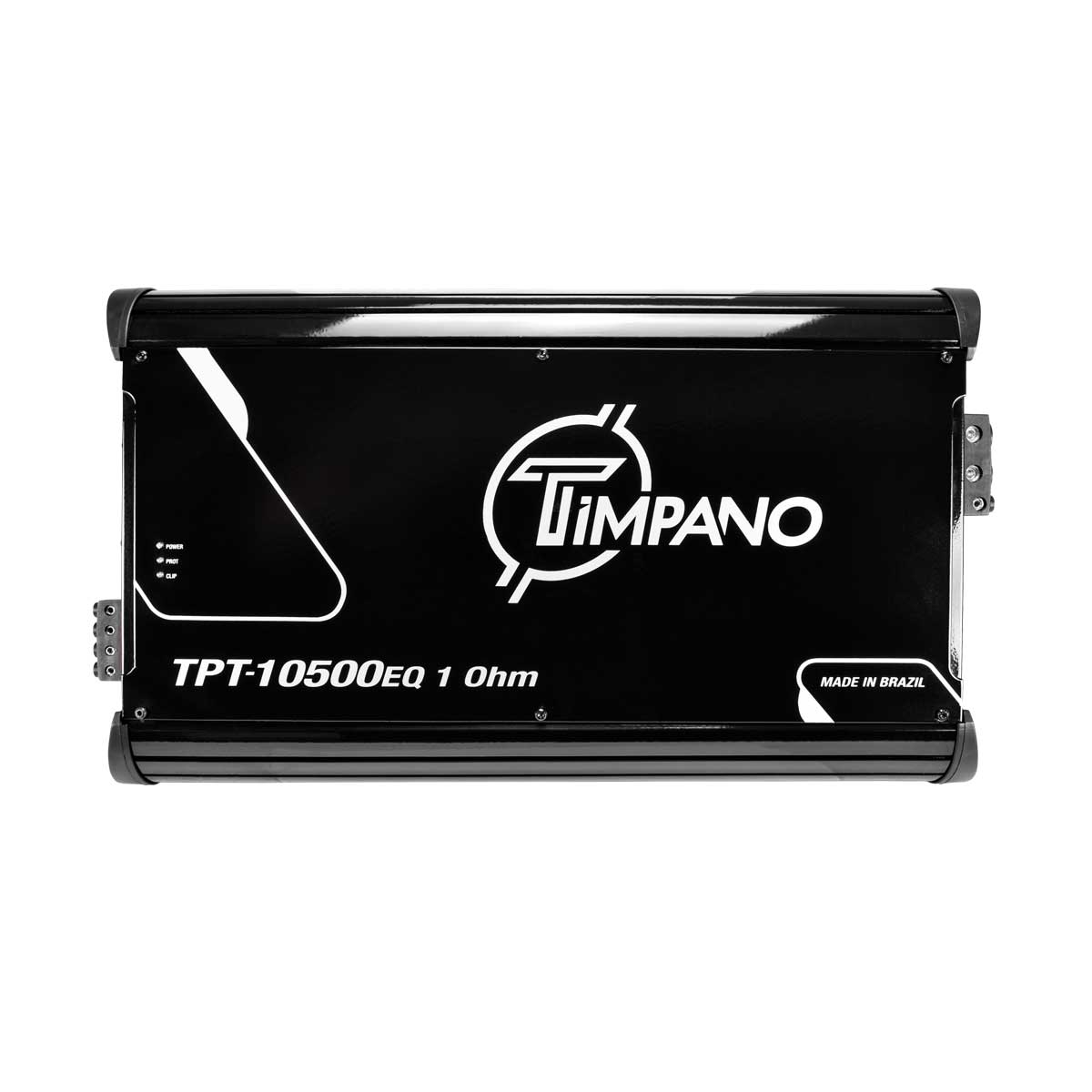

Timpano 1 Channel TPT-10500EQ 1 Ohm Car Audio Amplifier
Small Footprint Technology!
Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact fullrange amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 85-95% in a compact Class D fullrange amplifier.
Additional Information:
- Number of Channels: 1
- RMS Power at 1 Ohm 12.6V: 10500W RMS
- RMS Power at 2 Ohm 12.6V: 6400W RMS
- RMS Power at 4 Ohm 12.6V: 3900W RMS
- RMS Power at 1 Ohm 14.4V: 11600W RMS
- RMS Power at 2 Ohm 14.4V: 7300W RMS
- RMS Power at 4 Ohm 14.4V: 4800W RMS
- Supply Voltage: 9.5 ~ 15V
- Frequency Response: 10Hz ~ 15KHz
- Crossover Low Pass: 50Hz ~ 15KHz
- Crossover High Pass: 10Hz ~ 700Hz
- Signal to Noise: > 90 dB
- Harmonic Distortion: < 0.9 % THD
- Input Sensitivity: 0.2V
- Input Impedance: 25K Ohm
- Impedance Output: 1 Ohm
- Consumption with Signal Musical: 6.7A ~ 495A
- Consumption with Signal Bass: 6.7A ~ 990A
- Dimensions (L x W x H): 11.57” x 20” x 3”
- Weight: 16.50 Lbs
Features:

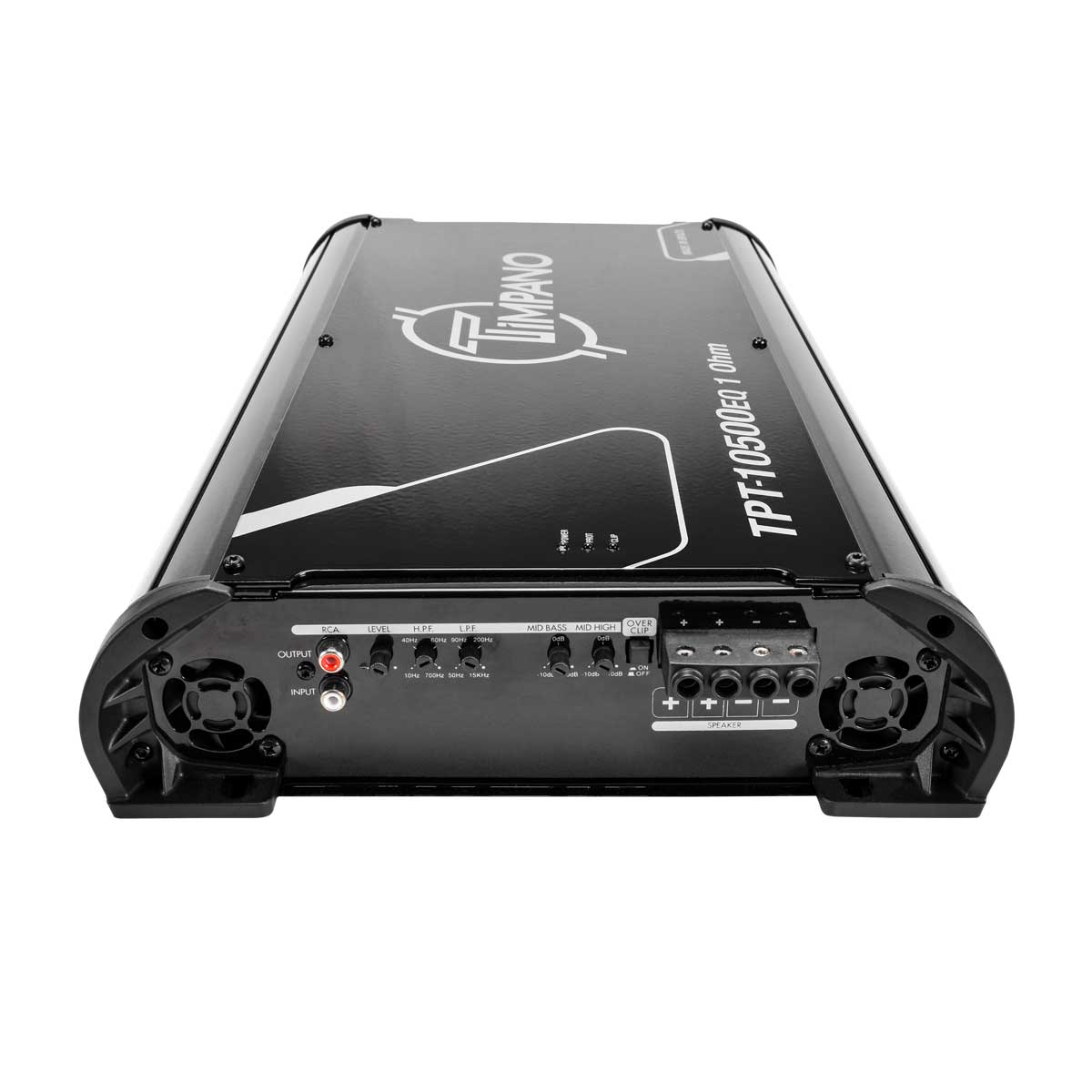

The TPT-10500EQ offer 1 channel with advanced individual equalization features for Bass, Midbass and Midhigh, plus the traditional Level, High Pass and Low Pass features. Its Fullrange frequency response from 10Hz to 15KHz allows the installation of Subwoofers, Speakers, Drivers and Tweeters.
Use the guide Below for recommended applications, where you can get the full potential of your amplifier.
Before Installing:
You must follow the instructions for the product’s installation and connections to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
• Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to the equipment connected to the amplifier;
• Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;
• Always use 100% Copper cables and good quality connectors. This guarantees the sound’s quality and fidelity;
• To avoid damaging the cables, make sure that they do not touch sharp metal edges.Important: Use a 400A fuse 12 inches away from the battery as a safety precaution
The power rated data are based on equipment from the PRV Audio Group laboratory. Frequency reference of 1Khz with THD+N to ≤10% in impedances referring to the indicated in each measurement. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.
