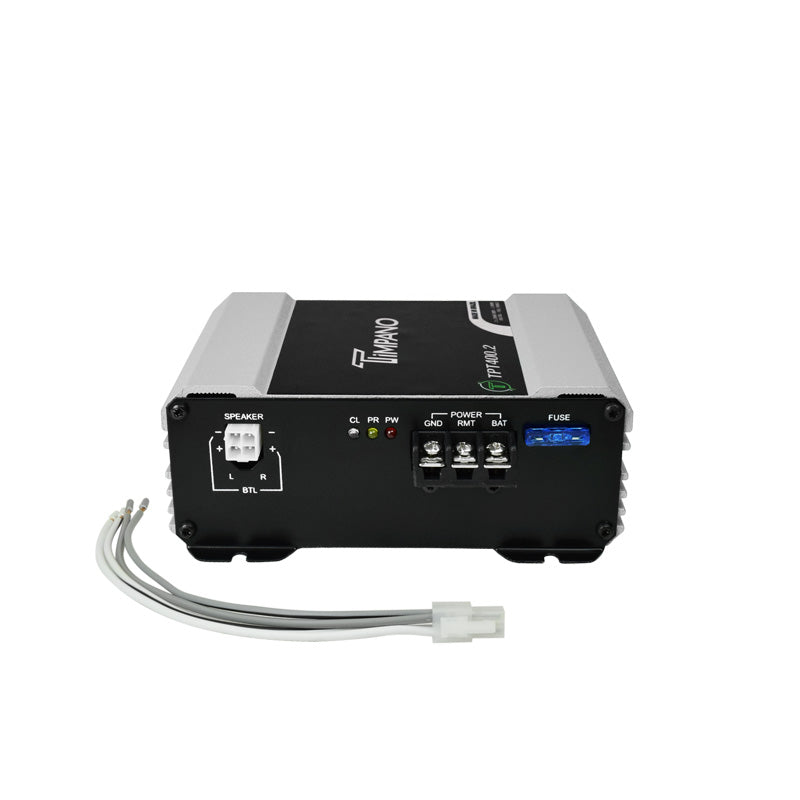

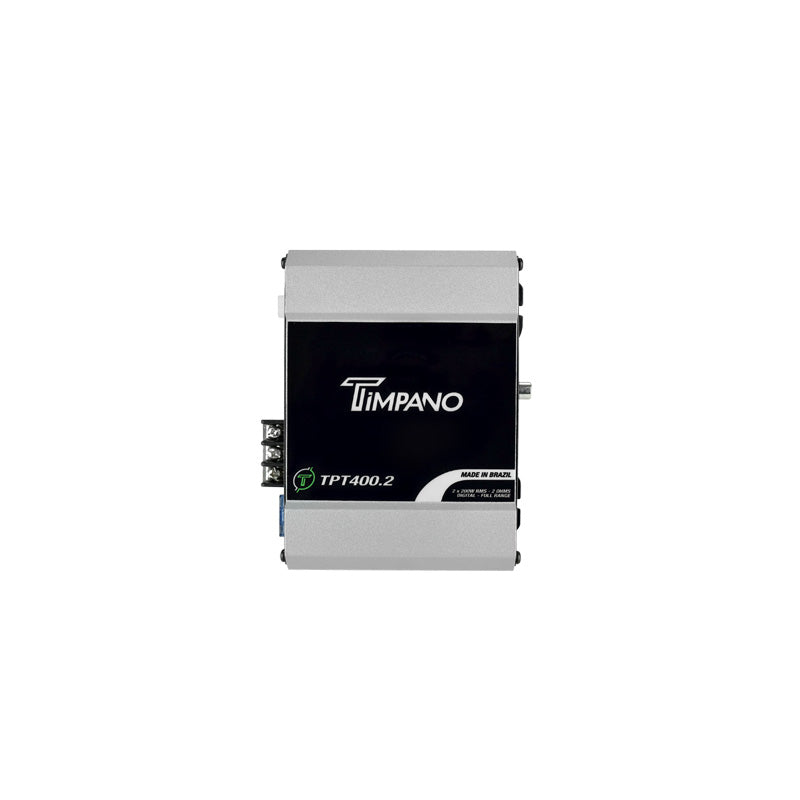

TPT-400.2 2 Ohm
TPT-400.2 2 Ohm is backordered and will ship as soon as it is back in stock.
Warranty Information
Warranty Information
Timpano Audio warrants all new products from any manufacturing defects in materials or workmanship under normal usage for a period not to exceed (1) year from the original purchase date.
If you need assistance for a warranty claim, please choose visit this page - Warranty Center
Delivery and Shipping
Delivery and Shipping
FREE SHIPPING! - 48-States on Orders Over $18 - Order before 1PM EST and Your Order will Ship on the Same Day
Description
Description
Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact full range amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 85-95% in a compact Class D full range amplifier.
Number of Channels: 2
RMS Power at 2 Ohm 12.6V: 2x 150W RMS
RMS Power at 4 Ohm 12.6V: 2x 75W RMS
Bridged RMS Power at 4 Ohm 12.6 Volts: 1x 300 Watts RMS
RMS Power at 2 Ohm 14.4V: 2x 200W RMS
RMS Power at 4 Ohm 14.4V: 2x 100W RMS
Supply Voltage: 11 ~ 16Vdc
Frequency Response: 20Hz ~ 20KHz
Crossover Low Pass: 100Hz
Crossover High Pass: 125Hz
Signal to Noise: > 90 dB
Harmonic Distortion: < 0.9 % THD
Input Sensitivity: 0.16V
Input Impedance: 10K OHM
Impedance Output: 2 OHM
Consumption with Signal Musical: 2A ~ 8A
Consumption with Signal Bass: ——
Dimensions (L x W x H): 5.57” x 4.64” x 2”
Weight: 1.25 Lbs
