TPT-D250X + TPT-HL11-25

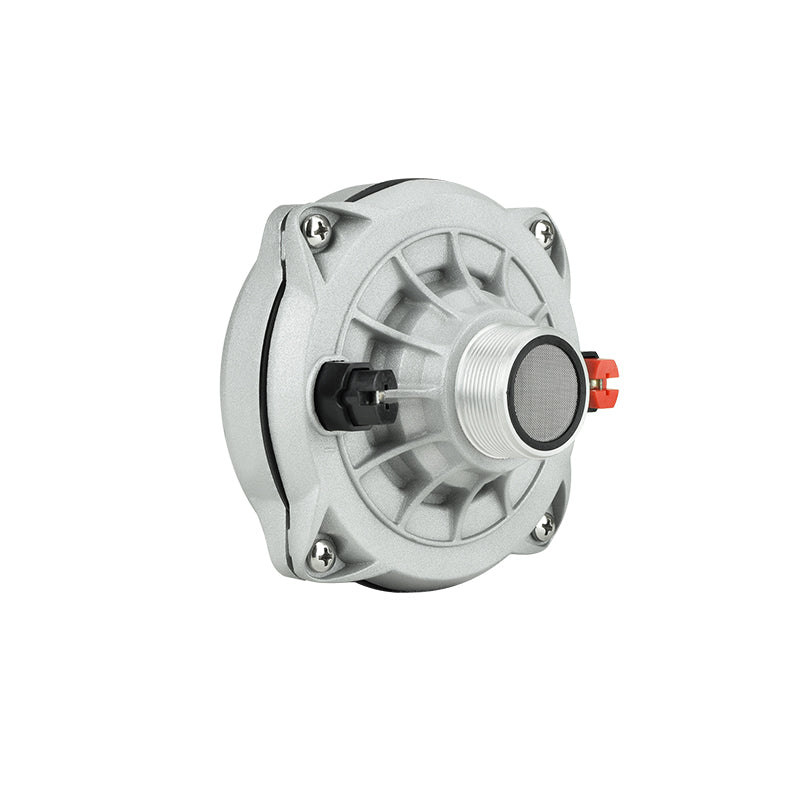

The Timpano TPT-D250X, Pro Audio 1″ Exit Phenolic Compression Driver 250 Watts 8 Ohm Light weight and offers unsurpassed vocal and midrange reproduction.
The TPT-D250X horn driver offers outstanding performance for midrange reproduction in professional PA systems, stage monitors, studio monitors, and stage speaker enclosures where additional midrange support is required. Its 1-3/8″-18 TPI threaded exit is compatible with many popular screw-on horns, such as TPT-HL11-25.

• A phenolic diaphragm and 2″ voice coil provide natural low frequency response and durability
• More output with less power, 107 dB efficiency for high output capability with PRO Audio loudspeakers
• With a frequency response of 400 to 8,000 Hz, this midrange driver is designed for vocal reinforcement in 3-way car audio systems

With a nearly indestructible phenolic diaphragm and a 2 inch voice coil, this technology delivers natural vocal midrange response at an efficient of 107 dB sensitivity

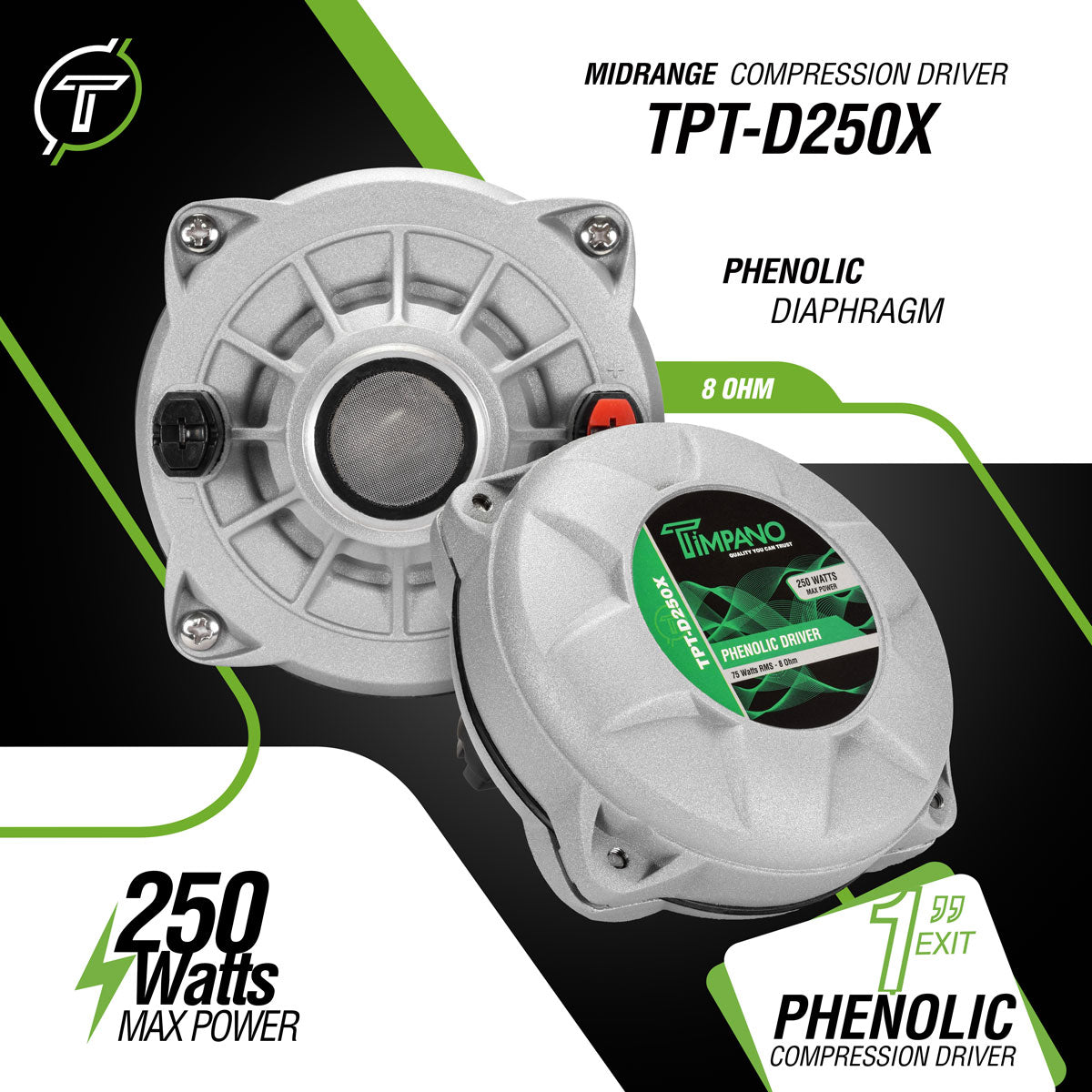

Specs:
250 Watts Max Power
75 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 107 dB
Frequency Response: 400 – 8,000Hz
Voice Coil: 2”
Phenolic Diaphragm with a 2″ voice coil
Recommended High Pass Filter:
700 Hz under 125 Watts of Amplifier RMS Power with 18dB Slope
600 Hz under 75 Watts of Amplifier RMS Power with 12dB Slope
Sizing:
Overall Size: 4.41″ x 4.41″ x 2.99″ Height
Weight: 3.11 Lbs

Original Manufacturer Replacement Diaphragms that Maintain Peak Performance are available: TPT-RPD250X

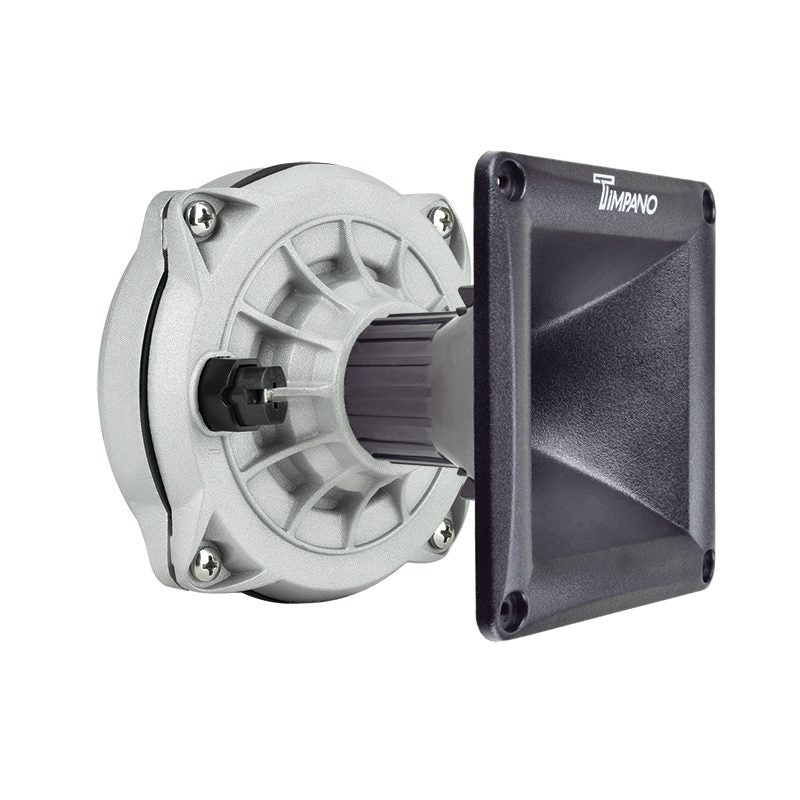

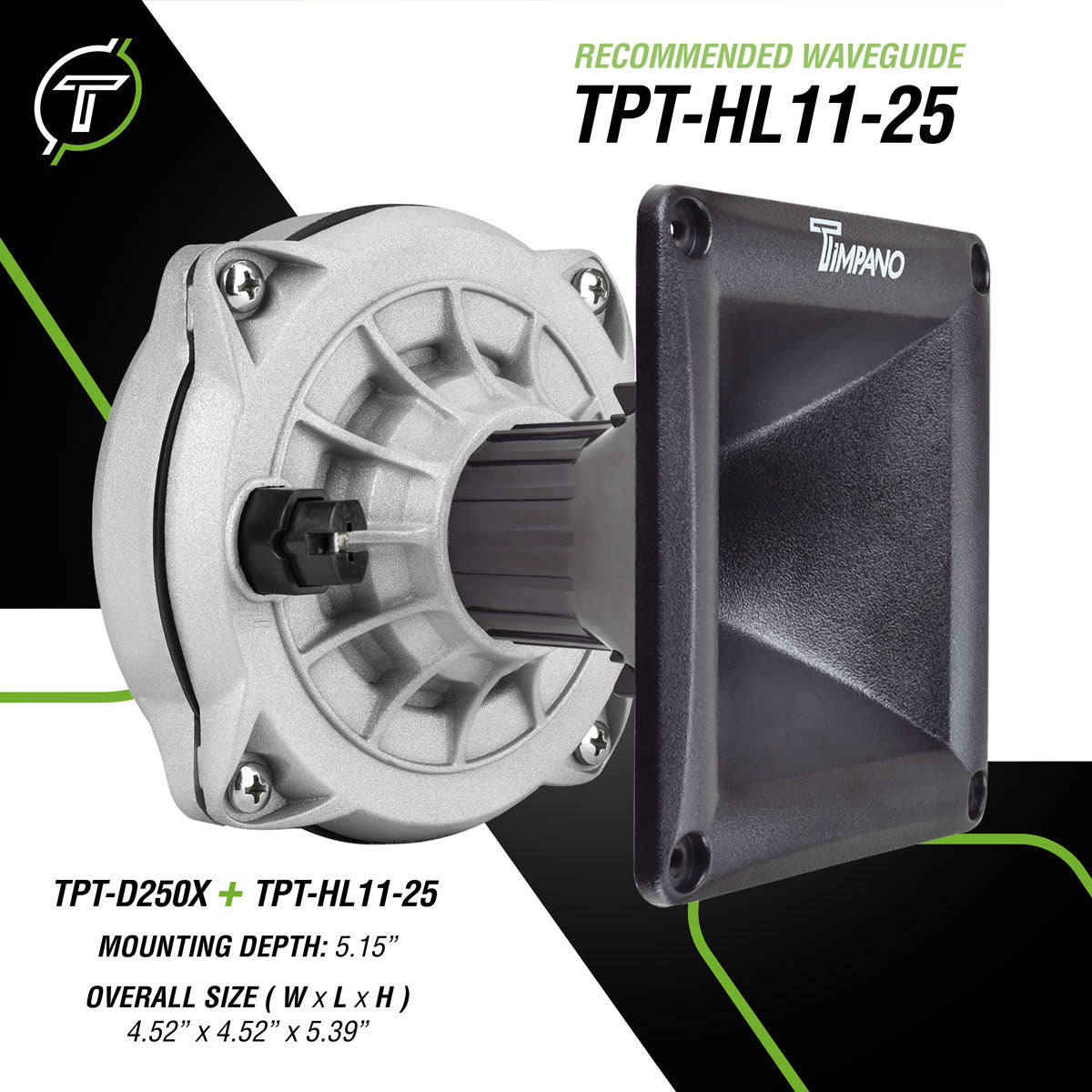

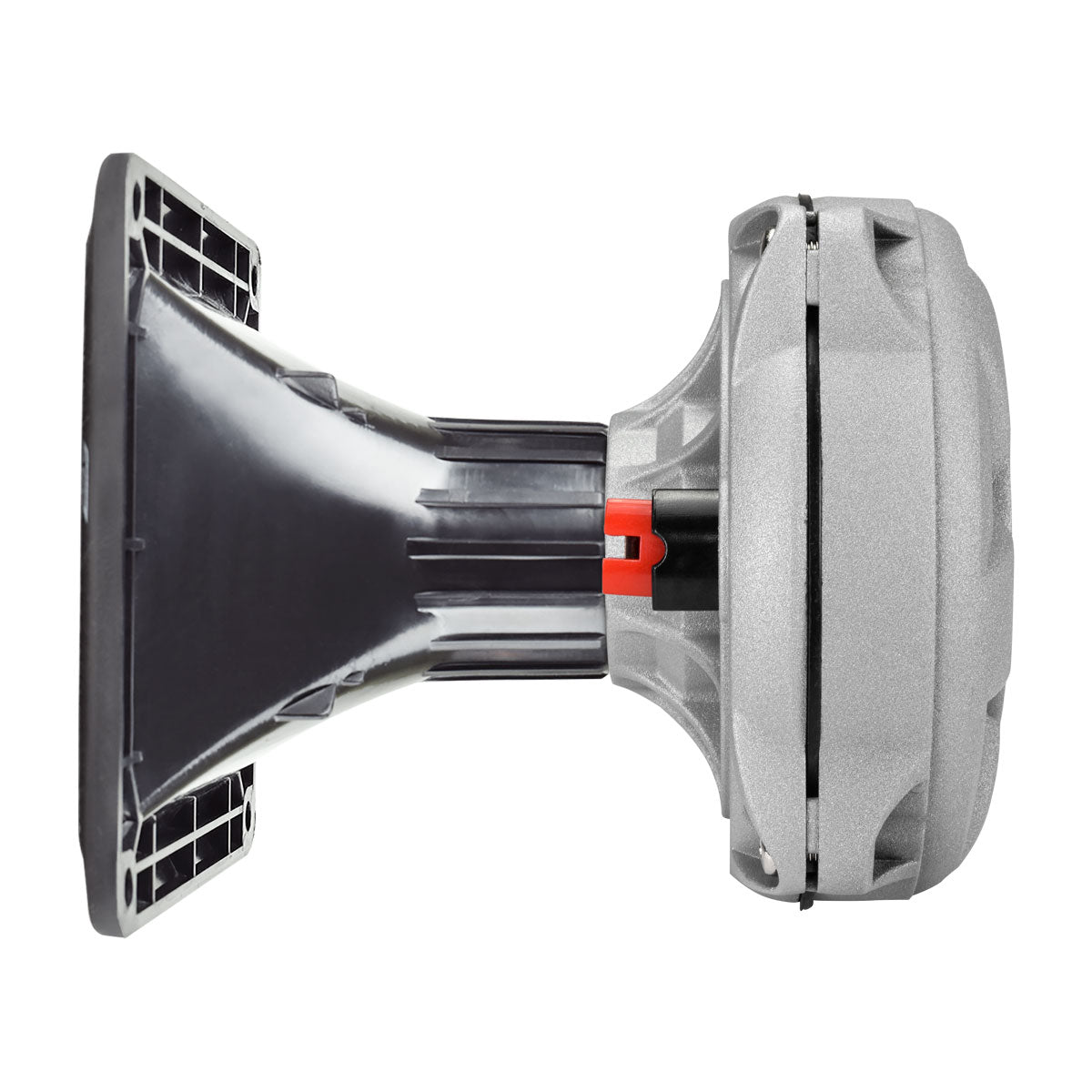

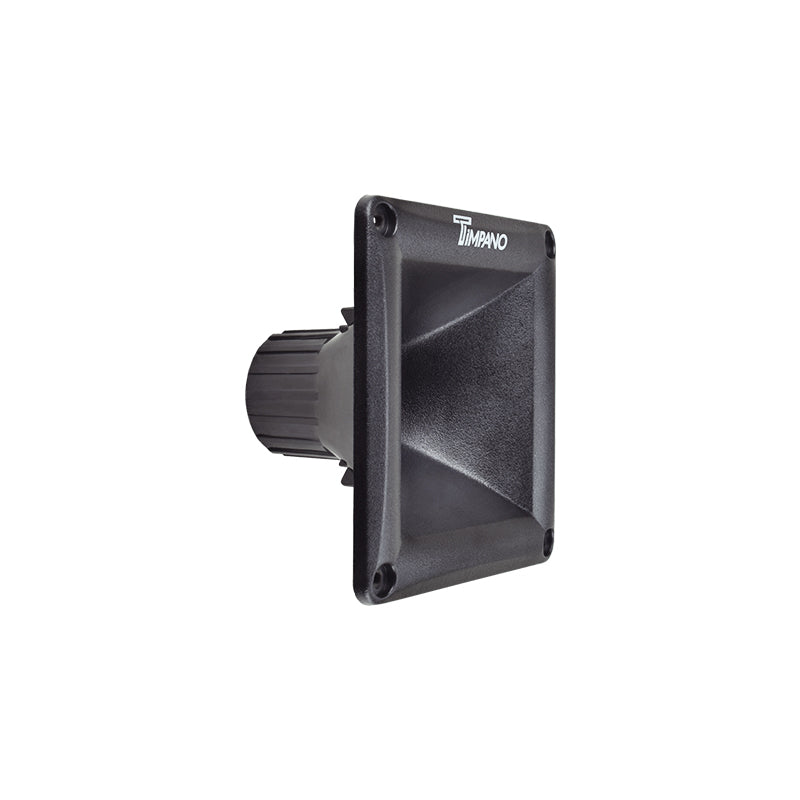

TPT-HL11-25 Slim Compact Horn

-1″ Exit Screw-On horn
-Size: 4.52″ x 4.52″ x 2.95″
-Compact size
-60° x 60° Nominal Coverage

Installation Tip:

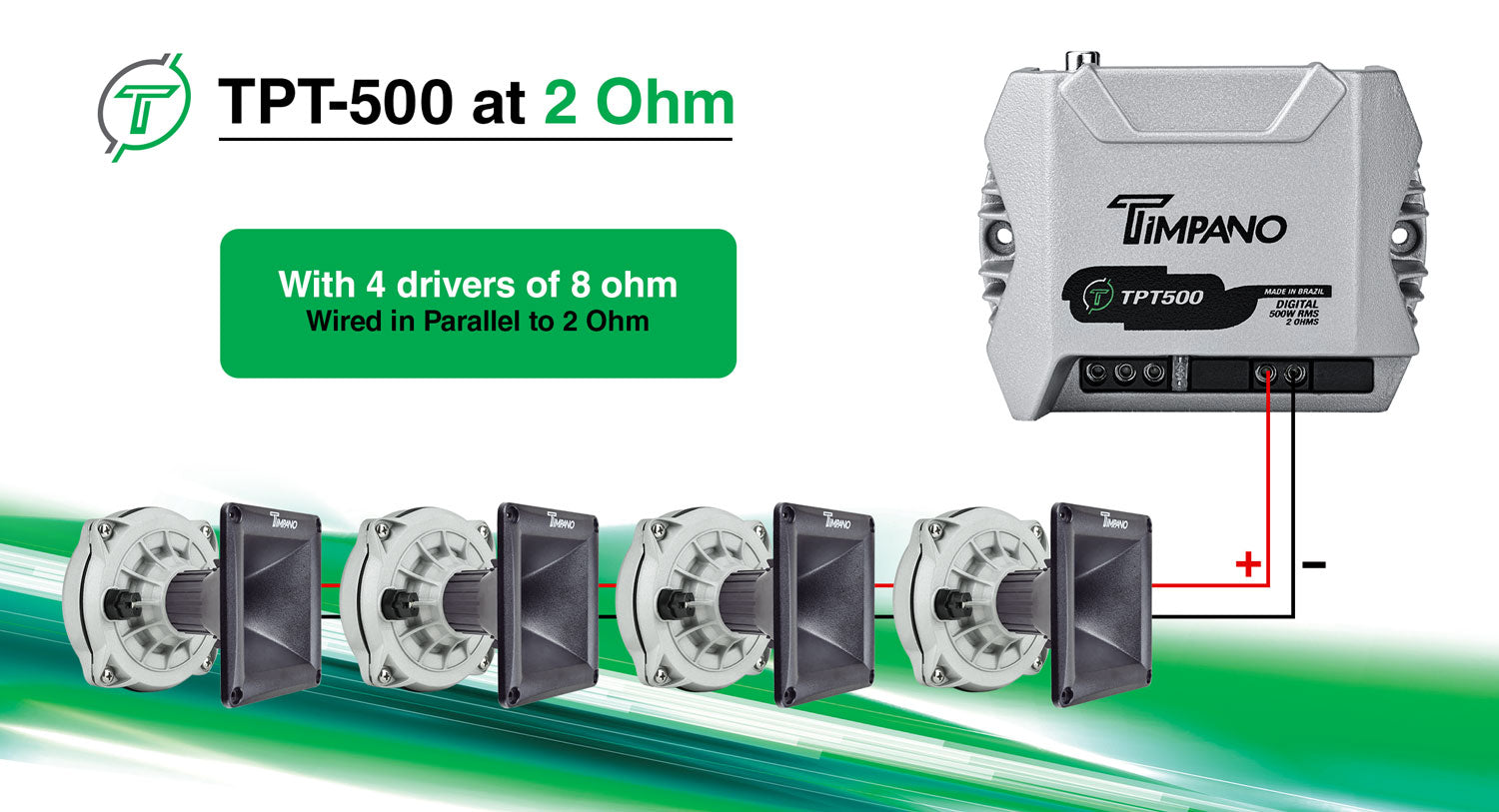

4x TPT-D250X + TPT-HL11-25 wired in parallel on a TPT-500 2 Ohm Amplifier
