TPT-MD10 PRO

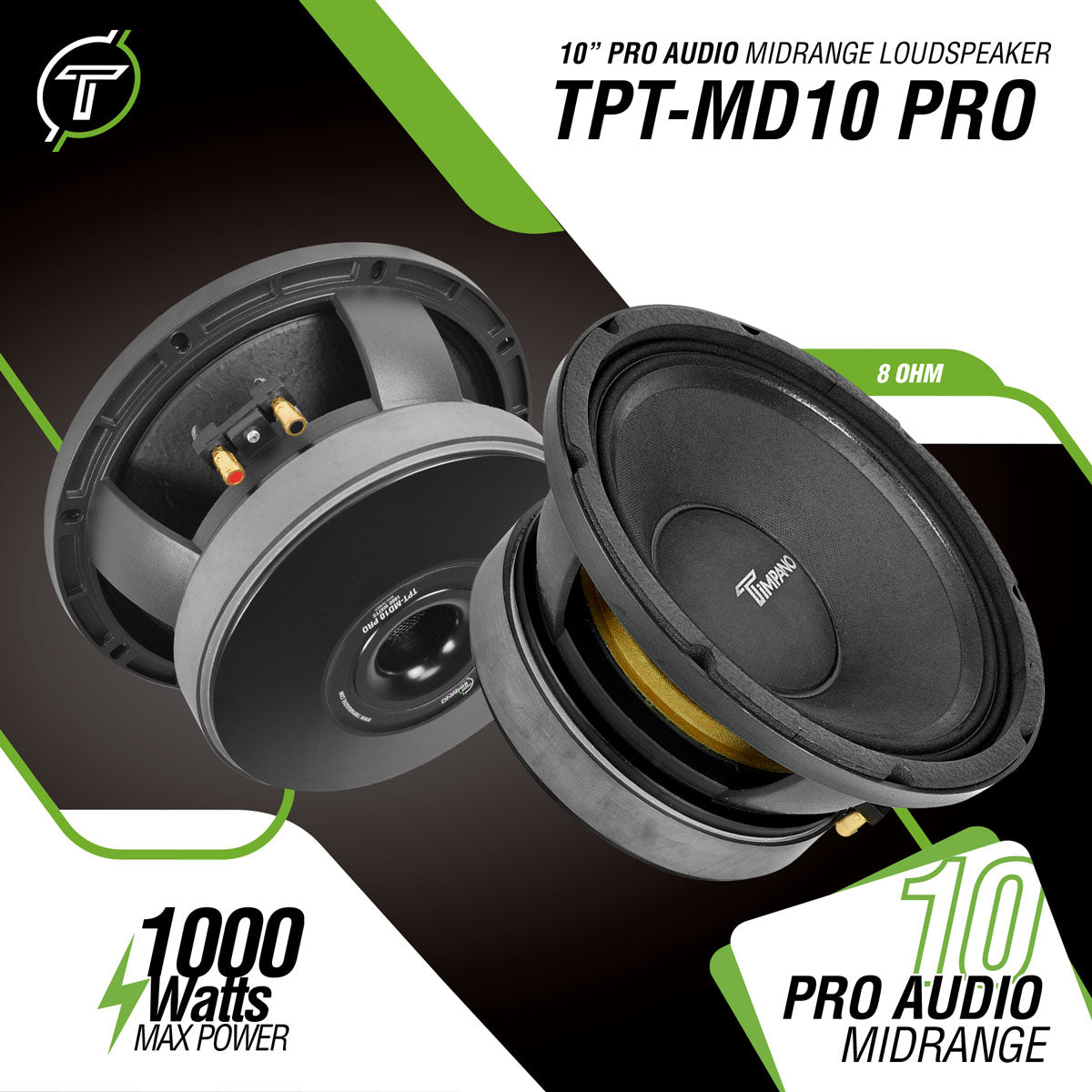

TPT-MD10 Pro 10″ Pro Audio Midrange Loudspeaker

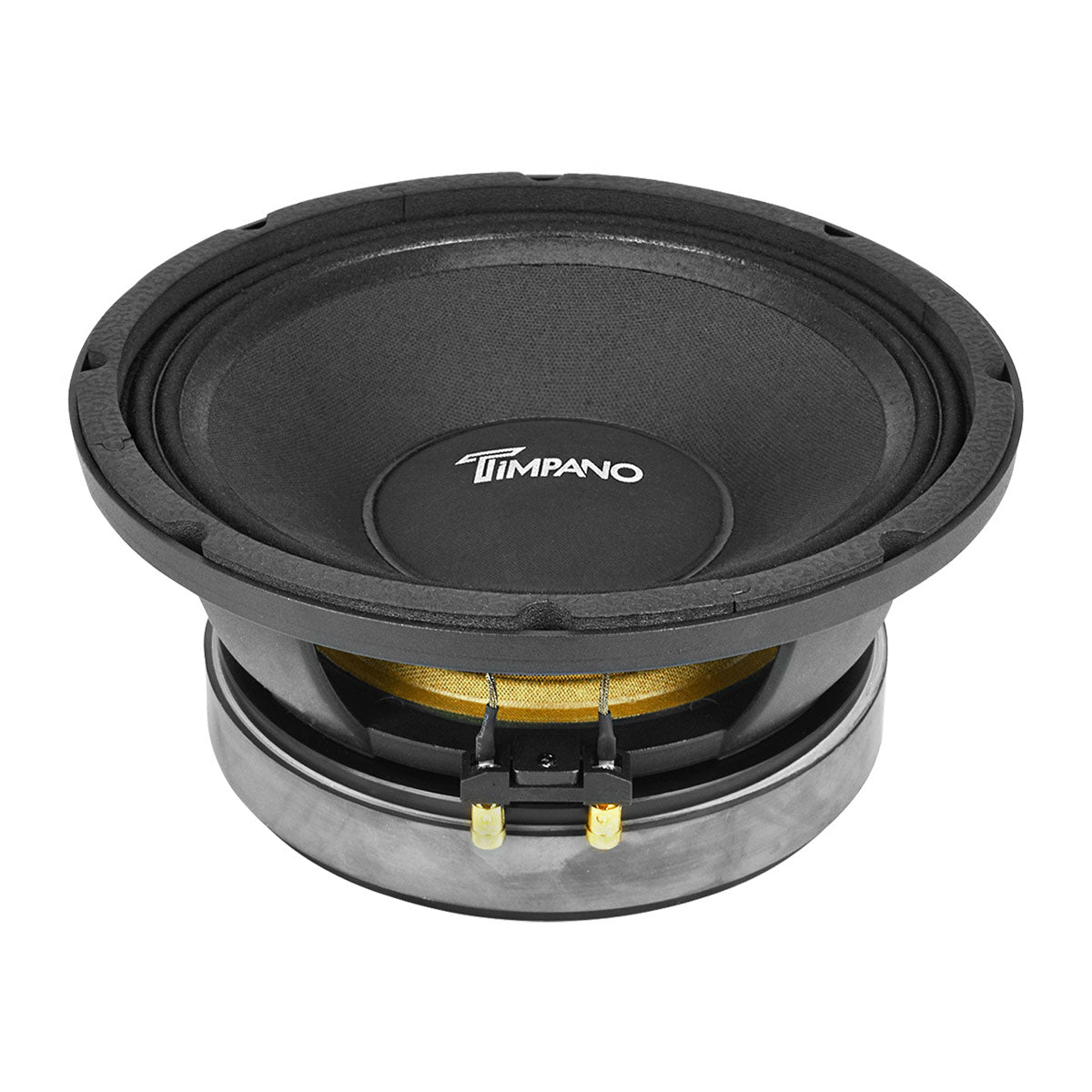

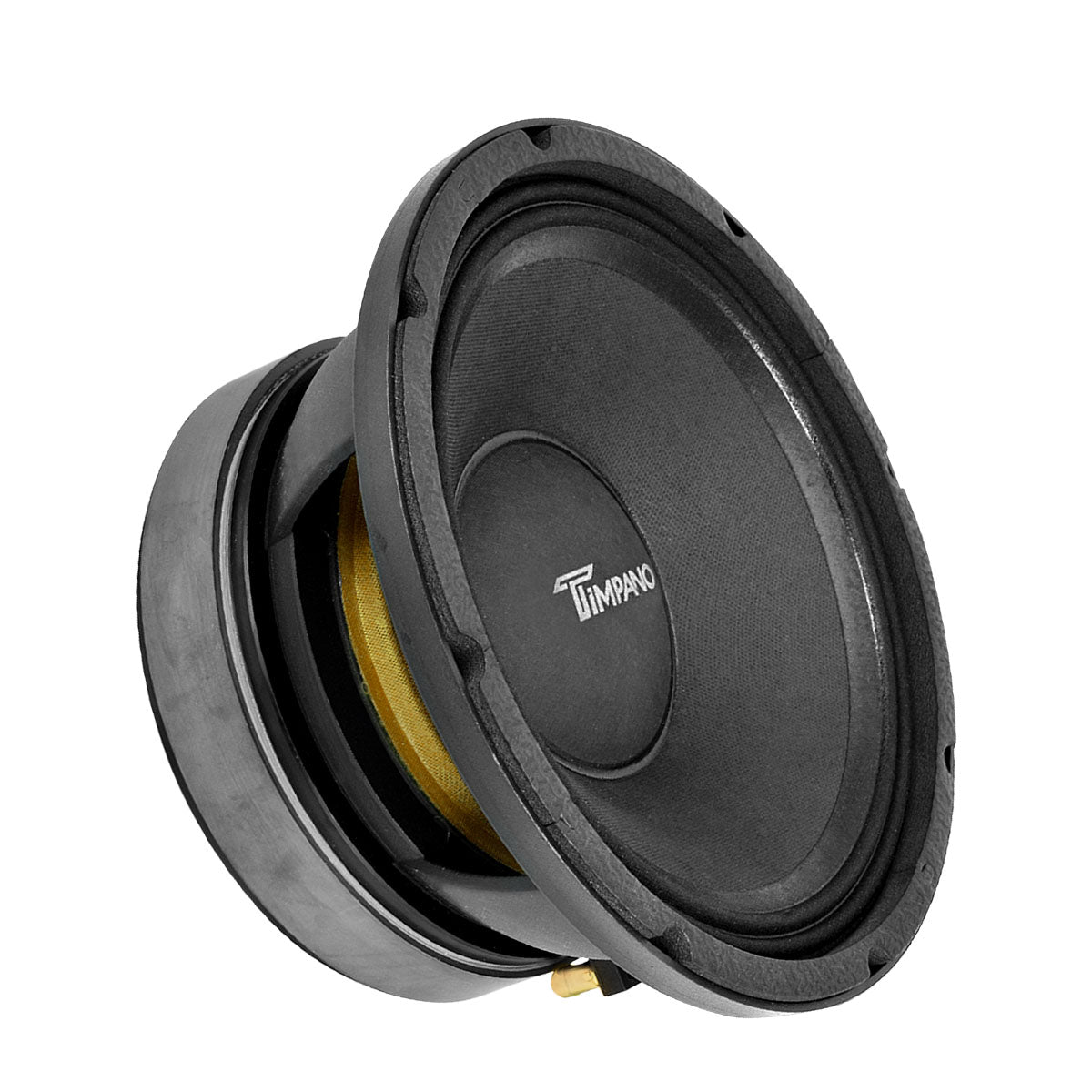

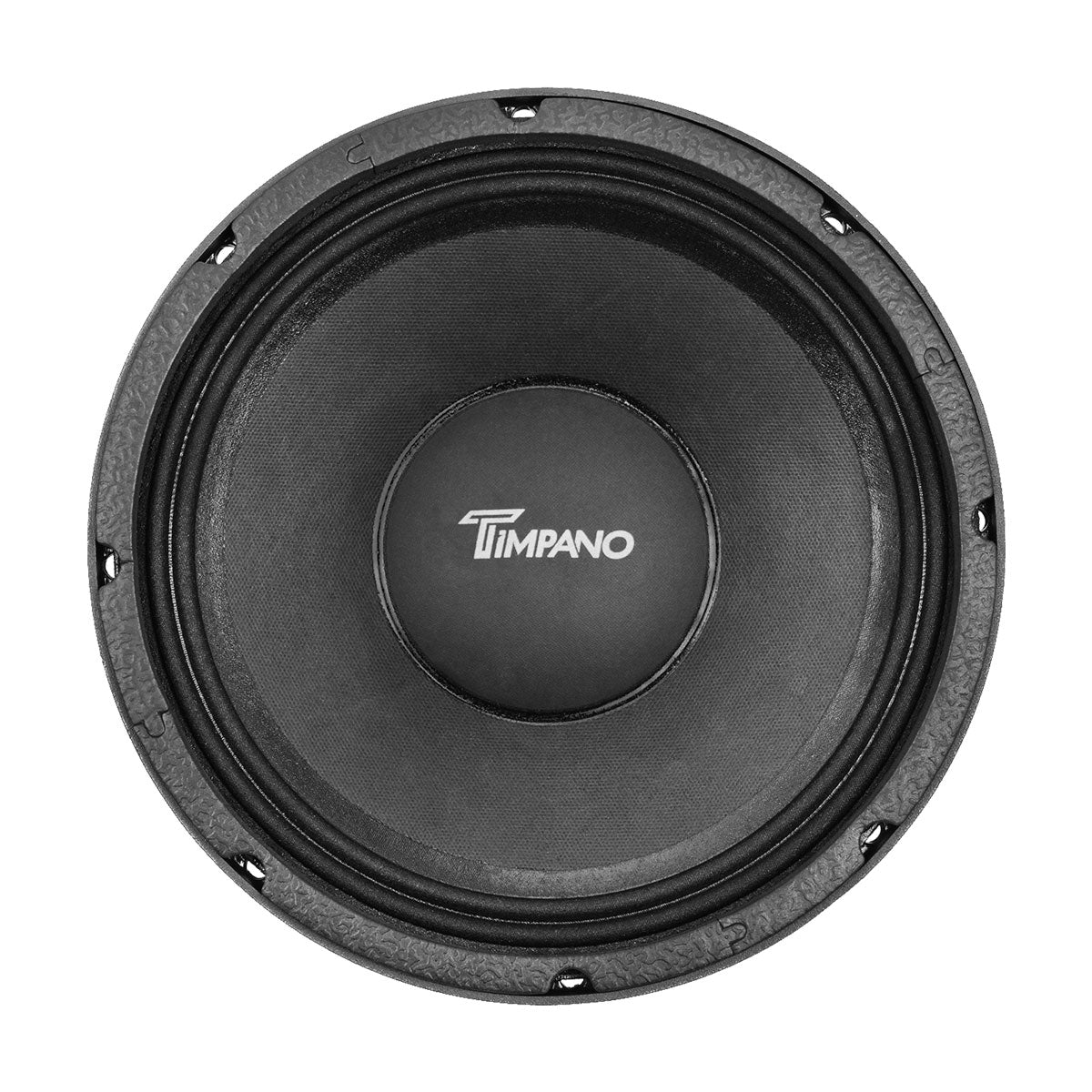

The TPT-MD10 PRO is a very high efficiency 10″ driver for professional midrange speaker applications. It features a 3″ copper voice coil and a low-mass yet stiff cone to help provide clean, detailed and high-impact sound reproduction.

This Italian-Designed 10″ pro PA speaker is built with the finest components available in the pro audio market. Its aluminum demodulation ring in the motor reproduces audio accurately at concert-level volume.

• Capable of handling 1000 Watts
• Impressive 100 dB sensitivity for maximum output

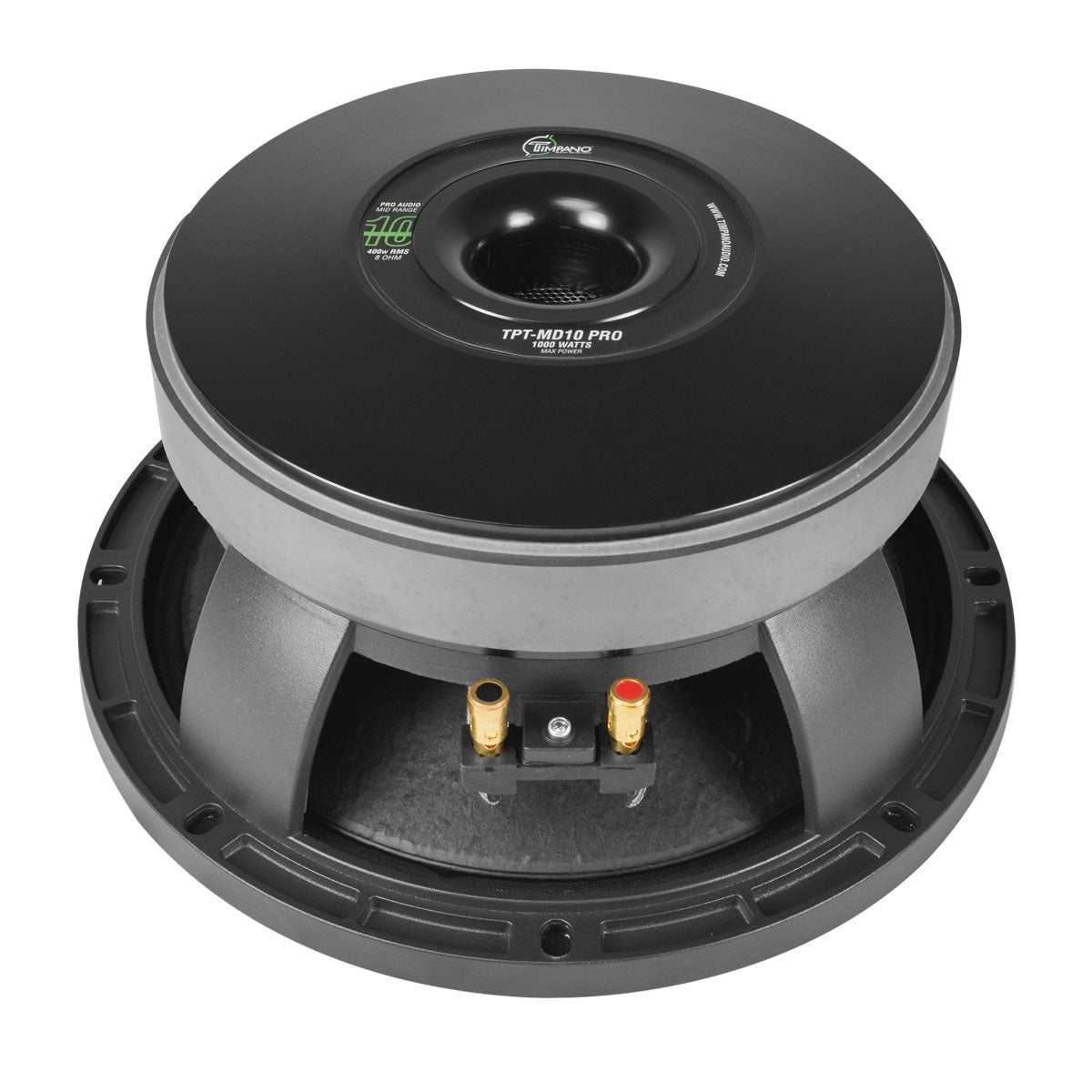

• Large vented ferrite motor for increased output and power handling
• Aluminum demodulating ring allows for a very low distortion output

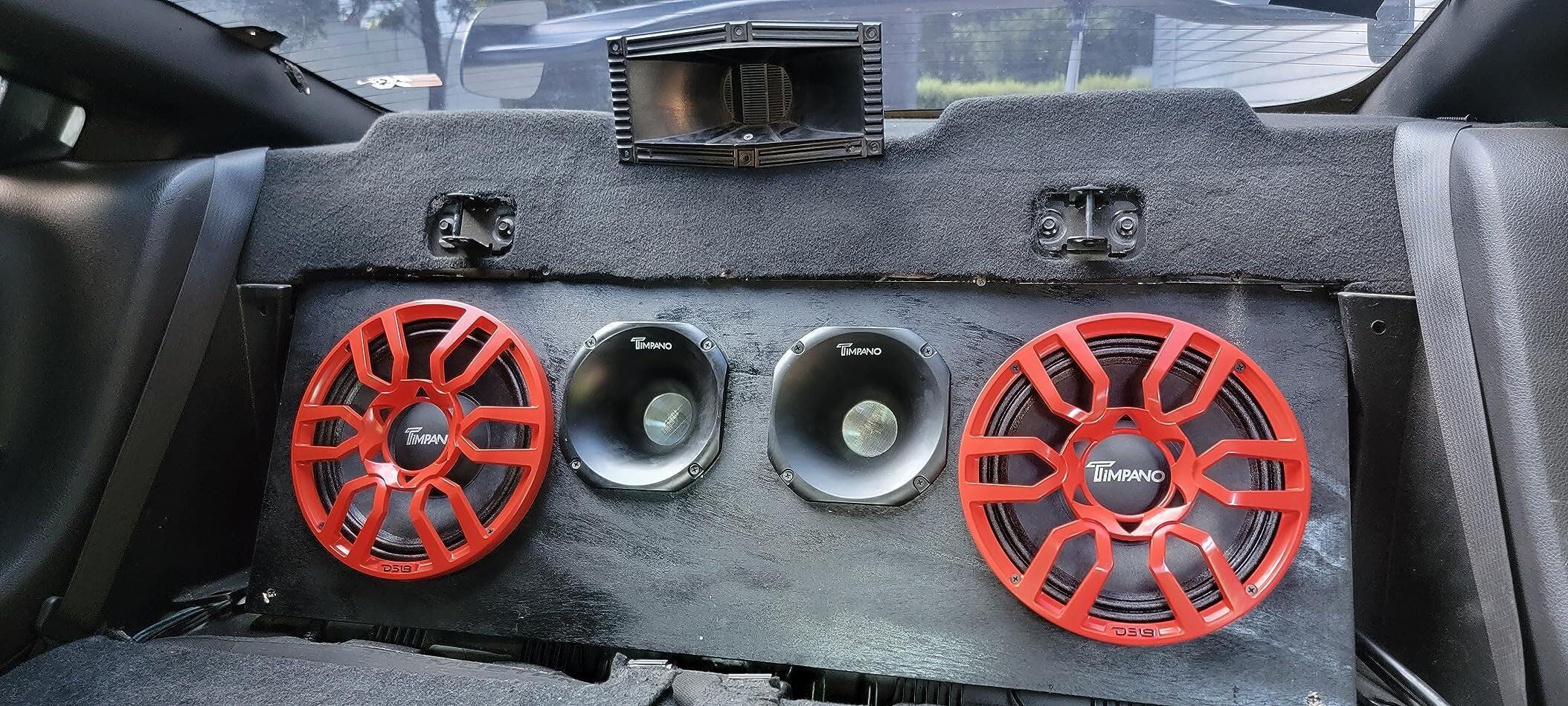

The TPT-MD10 PRO is a popular 10″ midrange speaker built like a professional loudspeaker, but has been designed for use in the car audio market.

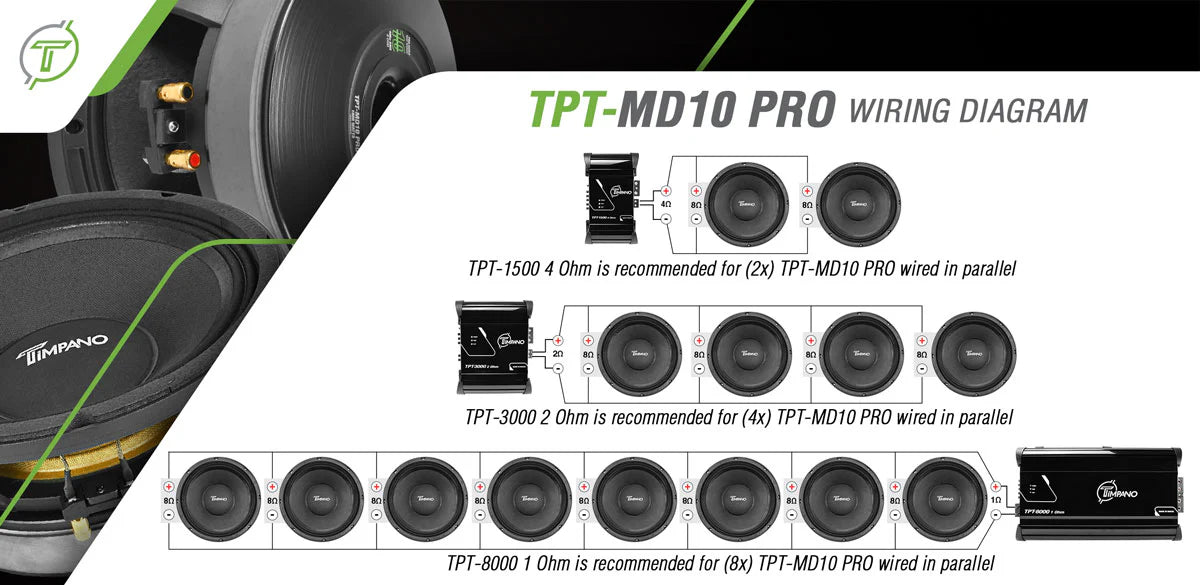

Designated at 8 Ohm impedance to work great with our high power amplifiers, where you can install multiple speakers on a single system amplifier, you can easily wire 8x speakers in parallel to a TPT-8000 at 1 Ohm or 4x speakers into a TPT-3000 at 2 Ohm, and even just 2x speakers into a TPT-1500 4 Ohm.

Taking your custom system to the maximum output level, where you can drive with the windows down and still have your music heard over down on the block.

Specs:
1000 Watts Max Power
400 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 100 dB
Frequency Response: 80 – 4,000Hz
Voice Coil: 3”
Recommended High Pass Filter with TPT-SP4BT DSP:
140 Hz under 1000 Watts of Amplifier RMS Power with 18dB Slope
125 Hz under 500 Watts of Amplifier RMS Power with 12dB Slope

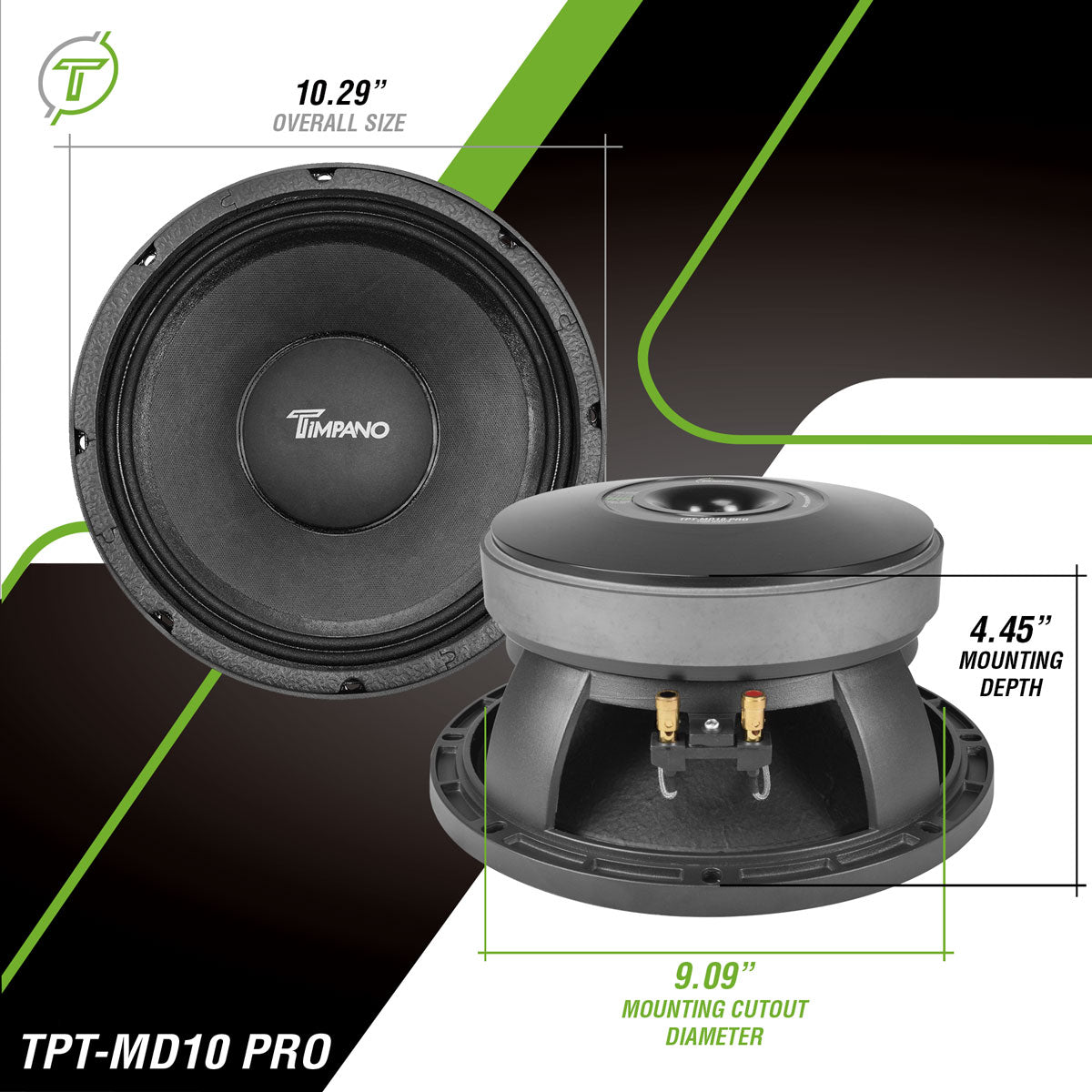

Sizing:
Mounting Depth: 4.45”
Mounting Cutout Diameter: 9.09″
Overall Size: 10.29″ x 10.29″ x 5.06″
Weight: 16.00 Lbs

Original Manufacturer Replacement Recone Kit that Maintain Peak Performance are available: TPT-RPMD10 PRO
