TPT-SP4BT
Description
Description
Bluetooth Car Audio Signal Processor DSP – TPT-SP4BT
We have brought the perfect tools to make your sound system the ultimate music machine!
The compact TPT-SP4BT is signal processor ( DSP ) controlled by bluetooth connection direct from your phone or tablet. This powerful tool allows users to optimize the performance of their custom sound system, regardless of whether they are using a aftermarket unit or factory radio.
The processor’s information can be viewed and configured remotely using smartphones with Android or iOS systems. Its digital signal processor allows real-time modification of equalization, crossover filters, alignment, gain control, phase inversion, limiter, input/output routing, and features such as: Battery Voltmeter, Frequency Generator, Frequency Sweep and Pink Noise. Its exclusive sequencer feature (SEQUENCER) makes it possible to configure the programmed startup and shutdown of up to three products from the remote startup connections (S1, S2, and S3).
In your device’s app store (Play store) or (Apple Store), search for our TIMPANO TPT-SP4BT app or use the links
below to be directed to the app page.
Once installed, open the app to configure and use your audio processor.
Download the app to your device
Technical Specifications
| Number of channels | Input: 2 x RCA (A+B) or 2 x HIGH INPUT (A+B) Output: 4 (1, 2, 3, 4) |
| Graphic equalizer: | 15 Bands (gain ±12dB) |
| Crossover with freq. Variable: | Butterworth: 12/18/24/36 dB/8ª Linkwitz-Riley: 12/18/24/36 dB/8ª |
| Output gain: | -45dB ~ +15dB per output |
| Frequency generator: | 10Hz ~ 22kHz and Level -60 ~ 0dB |
| Battery voltage monitor: | Current, minimum and maximum voltage |
| Frequency response: | 10Hz ~ 22kHz @ 0dB |
| Max. Input voltage: | RCA: 5,6 Vpp (+8,2 dBu) HIGH INPUT: 15 Vpp (+18 dBu) |
| Max. Output voltage: | 5,6 Vpp (+8,2 dBu) |
| Power supply: | 10V ~ 15V DC |
| Max. Output current SEQUENCER: | 180 mA per output |
| Rated current consumption: | 170mA @ 12.6V DC |
| Range: | 15 meters* |
| Compatibility: | Android 5.0 or higher iOS 12 or higher |
| Dimensions (H x W x L): | 1.3” x 3.8” x 7.4” |
| Weight: | 0.40 Lb |
Our crossovers are designed to provide the perfect frequency distribution to ensure the clarity and peak efficiency throughout your custom system.
Timpano TPT-SP4BT Manual Download
⚠️ WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Customer Reviews
This is my first ever DSP and I didn’t realize I needed one until I installed this one. This DSP brings out sounds in your system that you didn’t know existed! Also, it is very usuer friendly and all the controls are on the app at your fingertips! If you need a DSP that’s easy to you and will give you Grade A competition sound. The TPt SP4BT Timpano DSP is right up your alley!
After using many of the TPT-SP4BT for the past few years, I can say is very convenient to use, even on factory radios with its built in HI-LO converter. Especially in systems where you may not have easy access to the unit itself such as for motorcycles and slingshots but work just as well in ANY application. The app is to the point and easy to navigate with plenty of features. One of the most useful features, after the system is fine-tuned using the crossover and among the remote amplifier sequencer allowing you to turn amplifiers on and off right from the app, is the built in Voltage monitor. It can show voltage in real time and even has a graphic showing the voltage dropping and rising while recording highest and lowest voltage for your current session. This can be used to see if your charging system is keeping up with your audio. Take a look at this YouTube video showing all of the features this DSP offers.
Learn how to use the Timpano TPT-SP4BT (Sound Processor)

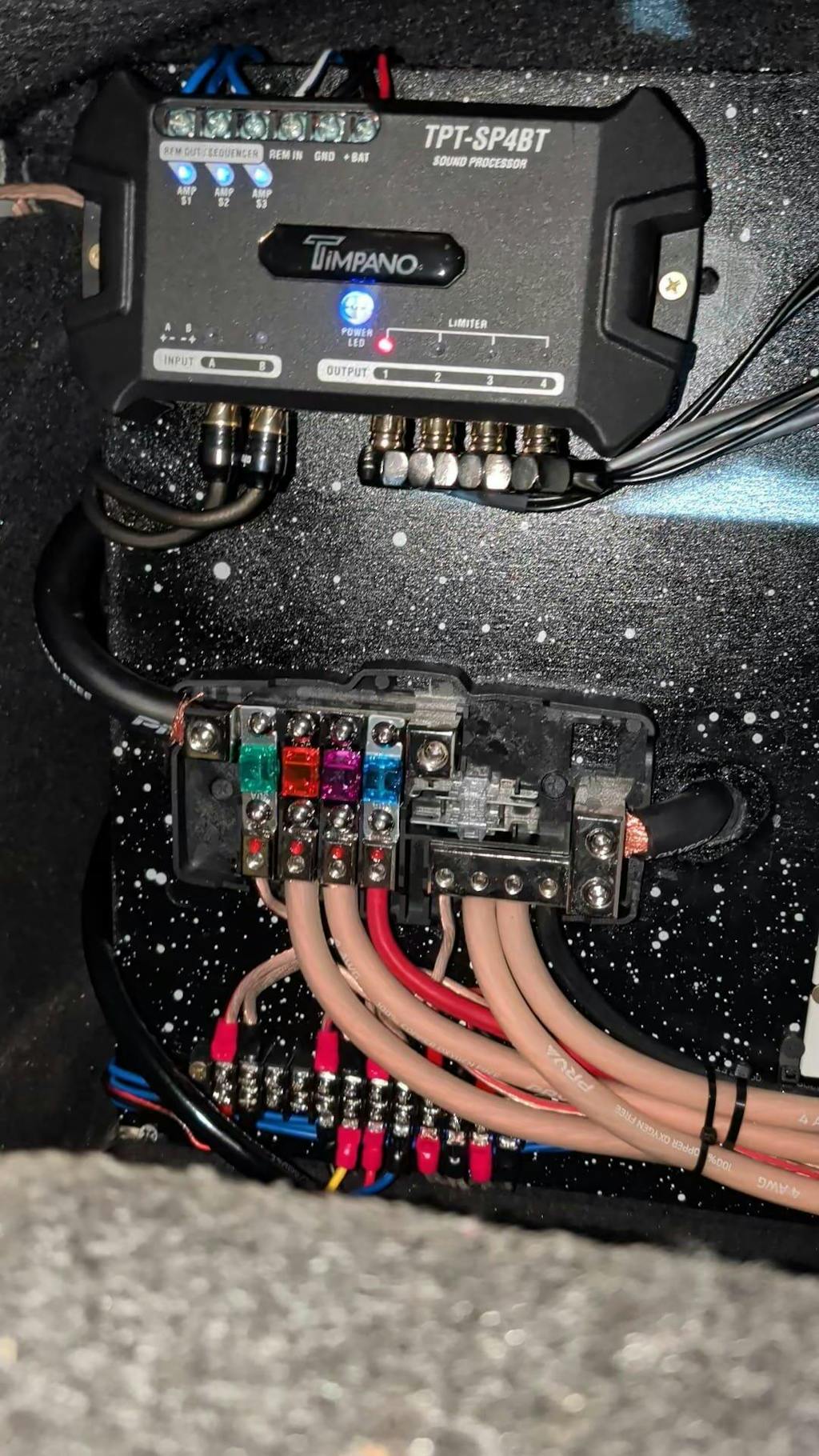

Stock head unit and amp sounded terrible. Added this unit and it makes all the difference. Adjustable on the fly is great too. I listen to all types of music. being able to adjust the eq at any time is an added bonus without having to crawl under the seat
Very easy to work! It works perfectly
