TPT-MD12 PRO

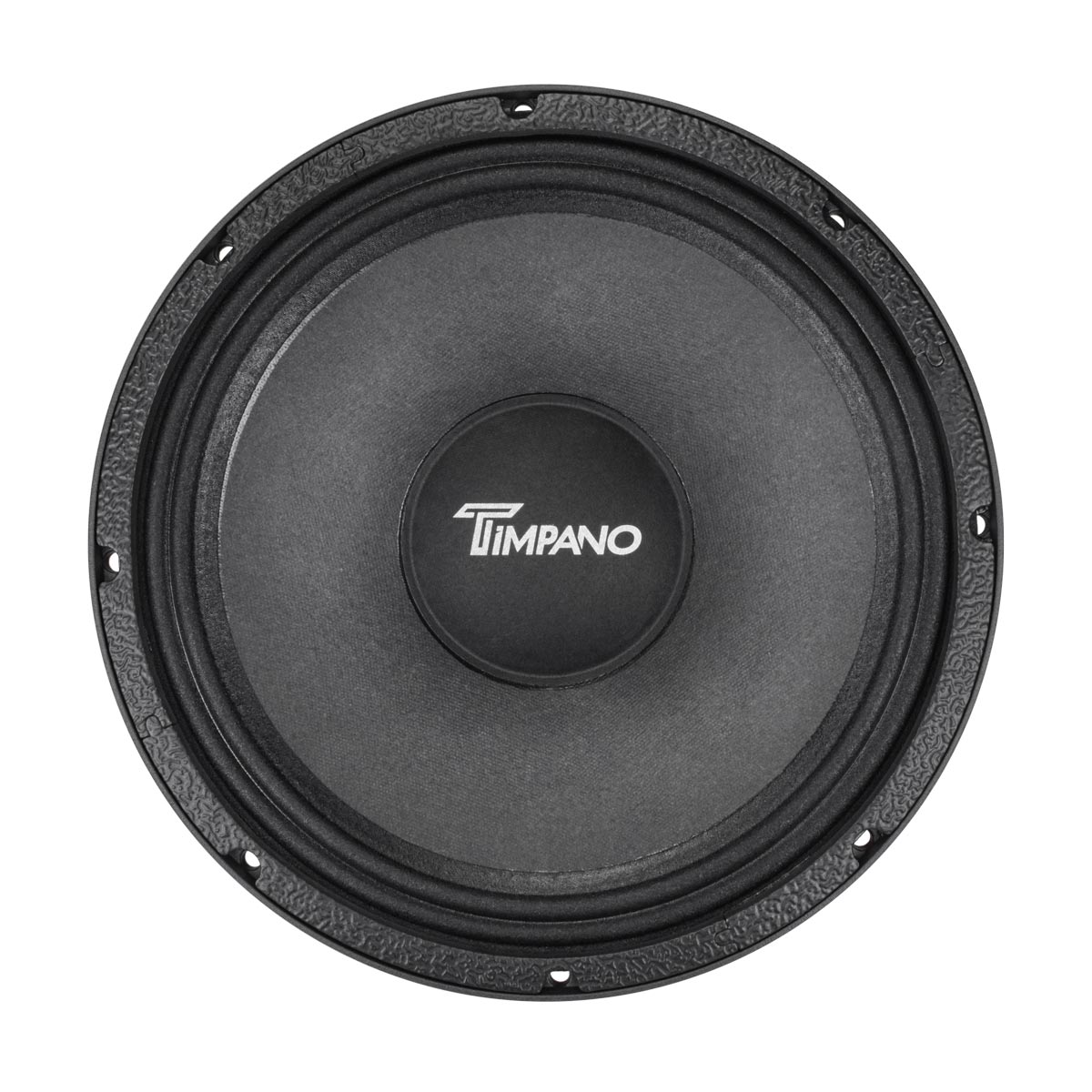

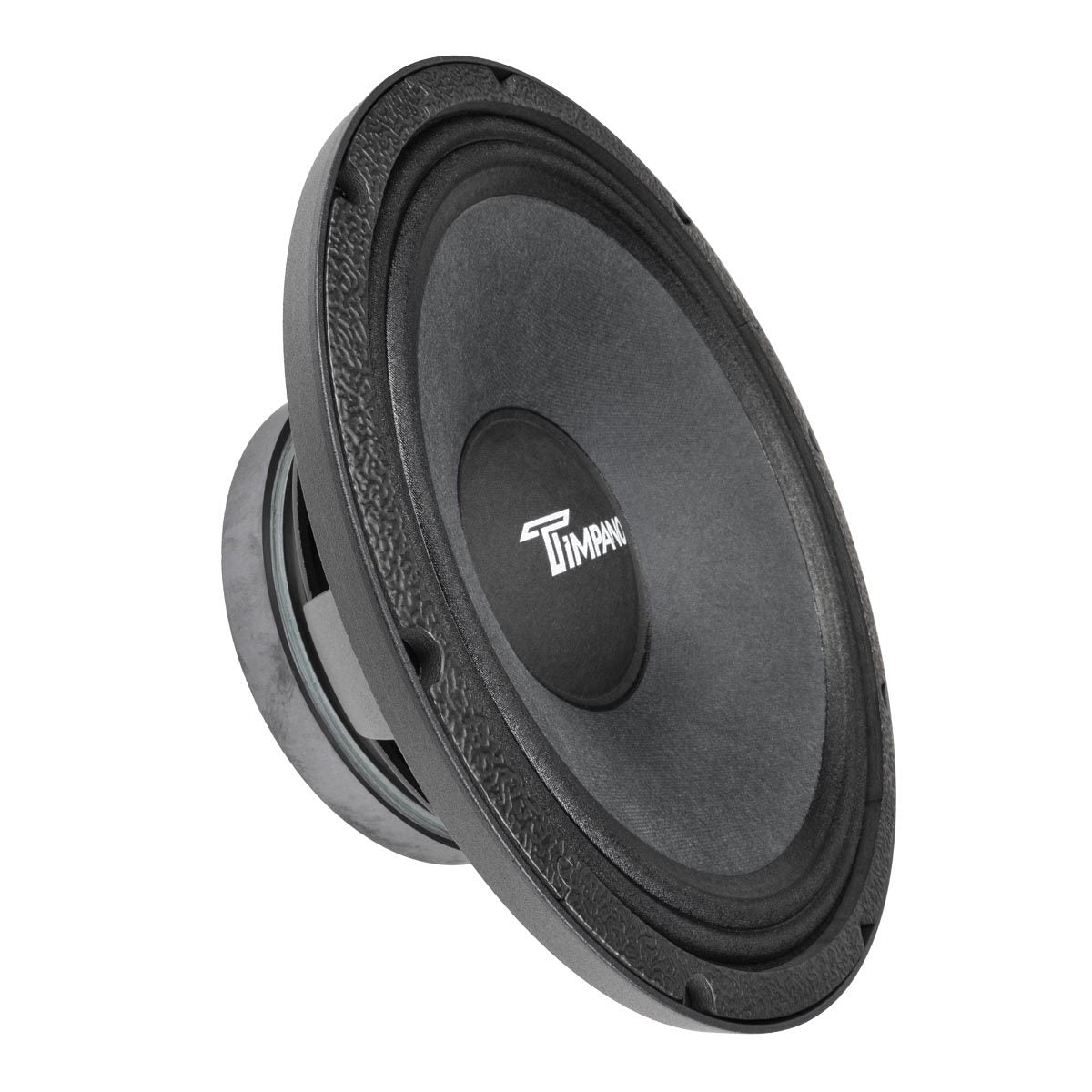

TPT-MD12 PRO 12″ Pro Audio Midrange Loudspeaker

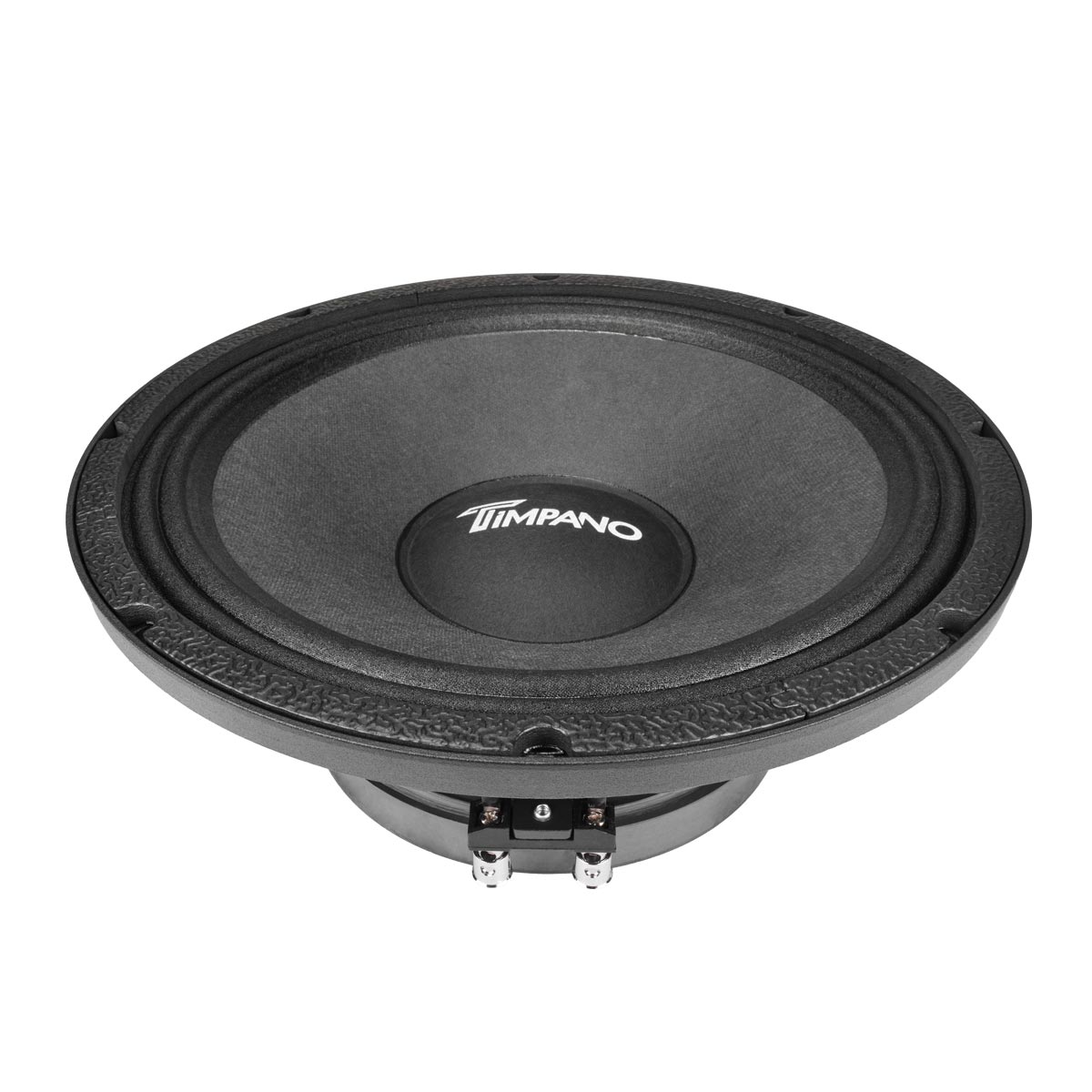

The TPT-MD12 PRO is a very high efficiency 12″ driver for professional midrange speaker applications. It features a 3″ copper voice coil and a low-mass yet stiff cone to help provide clean, detailed and high-impact sound reproduction.

This Italian-Designed 12″ pro PA speaker is built with the finest components available in the pro audio market. Its aluminum demodulation ring in the motor reproduces audio accurately at concert-level volume.

• Capable of handling 1000 watt max musical power for tremendous output levels
• Impressive 101 dB sensitivity for maximum output
• Large vented ferrite motor for increased output and power handling
• Aluminum demodulating ring allows for a very low distortion output

The TPT-MD12 PRO is a popular 12″ midrange speaker built like a professional loudspeaker, but has been designed for use in the car audio market.

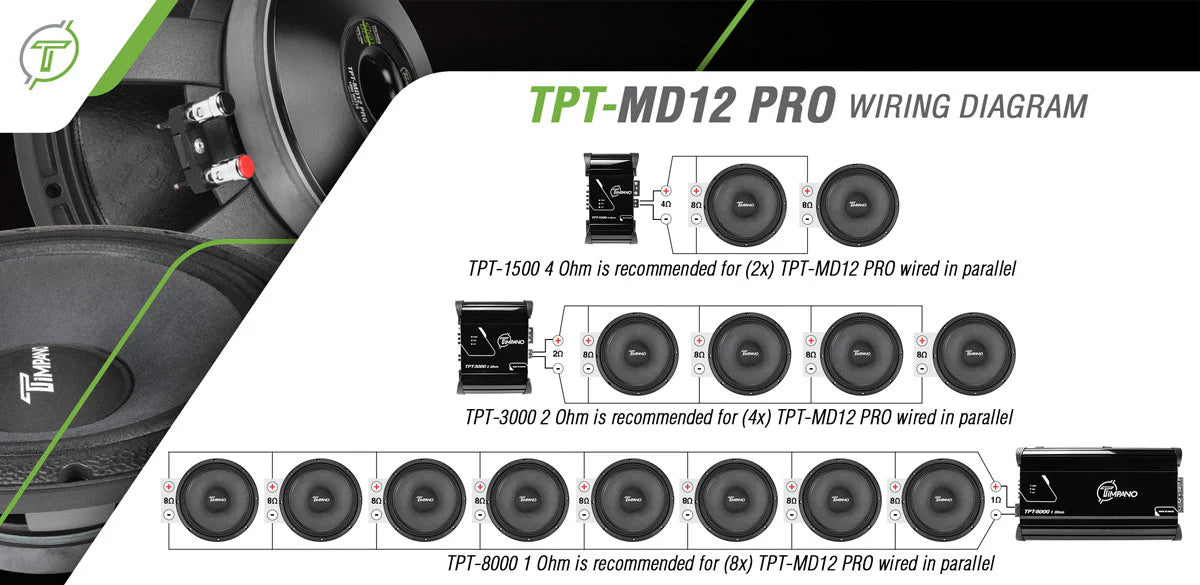

Designated at 8 Ohm impedance to work great with our high power amplifiers, where you can install multiple speakers on a single system amplifier, you can easily wire 8x speakers in parallel to a TPT-8000 at 1 Ohm or 4x speakers into a TPT-3000 at 2 Ohm, and even just 2x speakers into a TPT-1500 4 Ohm.

Taking your custom system to the maximum output level, where you can drive with the windows down and still have your music heard over down on the block.

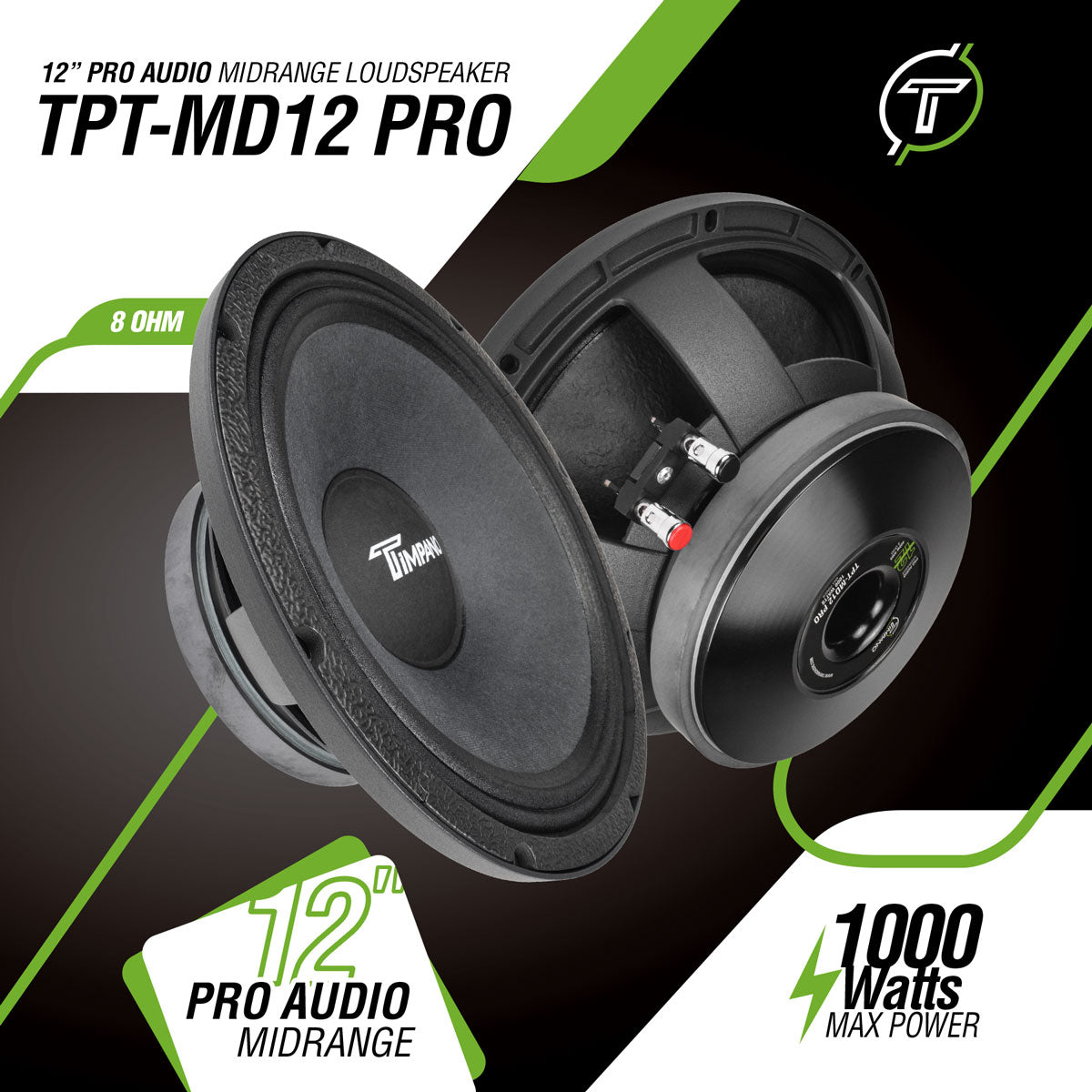

Specs:
1000 Watts Max Power
400 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 101 dB
Frequency Response: 55 – 4,000Hz
Voice Coil: 3”

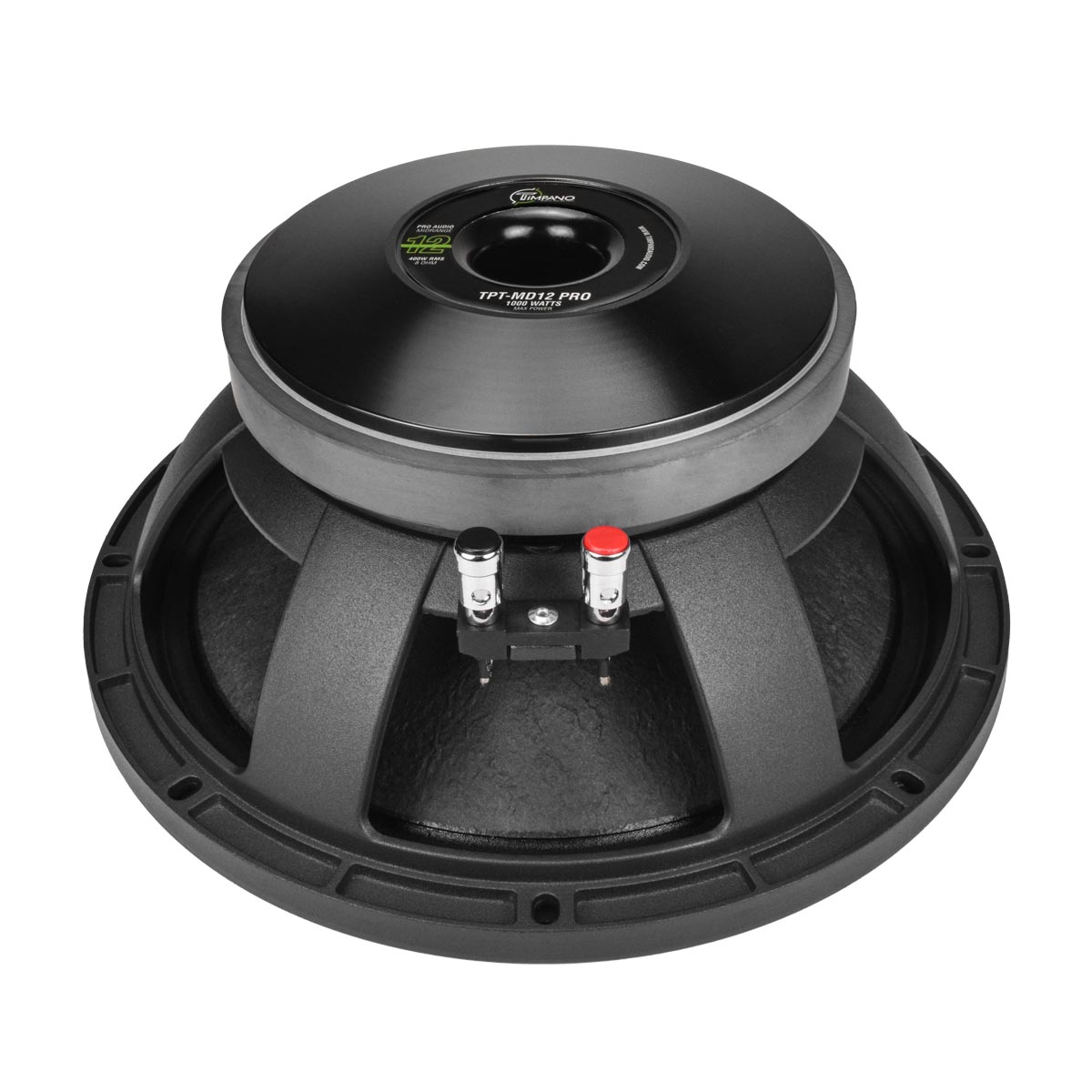

Aluminum Basket with High Strength Ferrite Magnet
Recommended High Pass Filter with TPT-SP4BT DSP:
140 Hz under 1000 Watts of Amplifier RMS Power with 18dB Slope
125 Hz under 500 Watts of Amplifier RMS Power with 12dB Slope

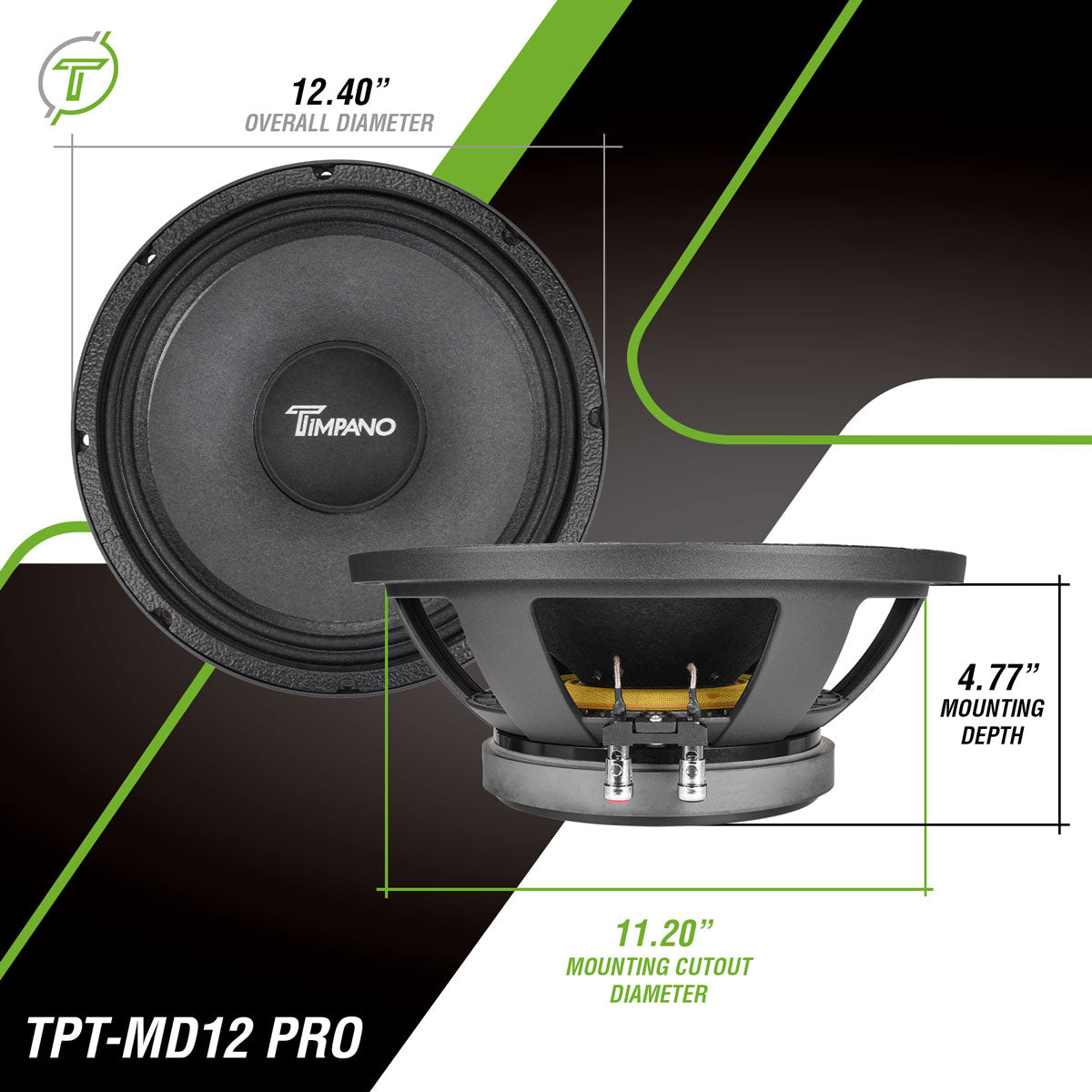

Sizing:
Mounting depth: 4.77”
Mounting Cutout Diameter: 11.20”
Overall Diameter: 12.40”
Weight: 16 Lbs

Original Manufacturer Replacement Recone Kit that Maintain Peak Performance are available: TPT-RPMD12 PRO
