TPT-D3200TI-ND

$129.95 $155.94

Shipping calculated at checkout.

Neodymium Titanium Driver
600 Watts Max Power
1,600 – 19,000 Hz / 110 dB

PRICE FOR SINGLE UNIT

Warranty Information

Timpano Audio warrants all new products from any manufacturing defects in materials or workmanship under normal usage for a period not to exceed (1) year from the original purchase date.

If you need assistance for a warranty claim, please choose visit this page - Warranty Center

Delivery and Shipping

FREE SHIPPING! - 48-States on Orders Over $18 - Order before 1PM EST and Your Order will Ship on the Same Day

Description

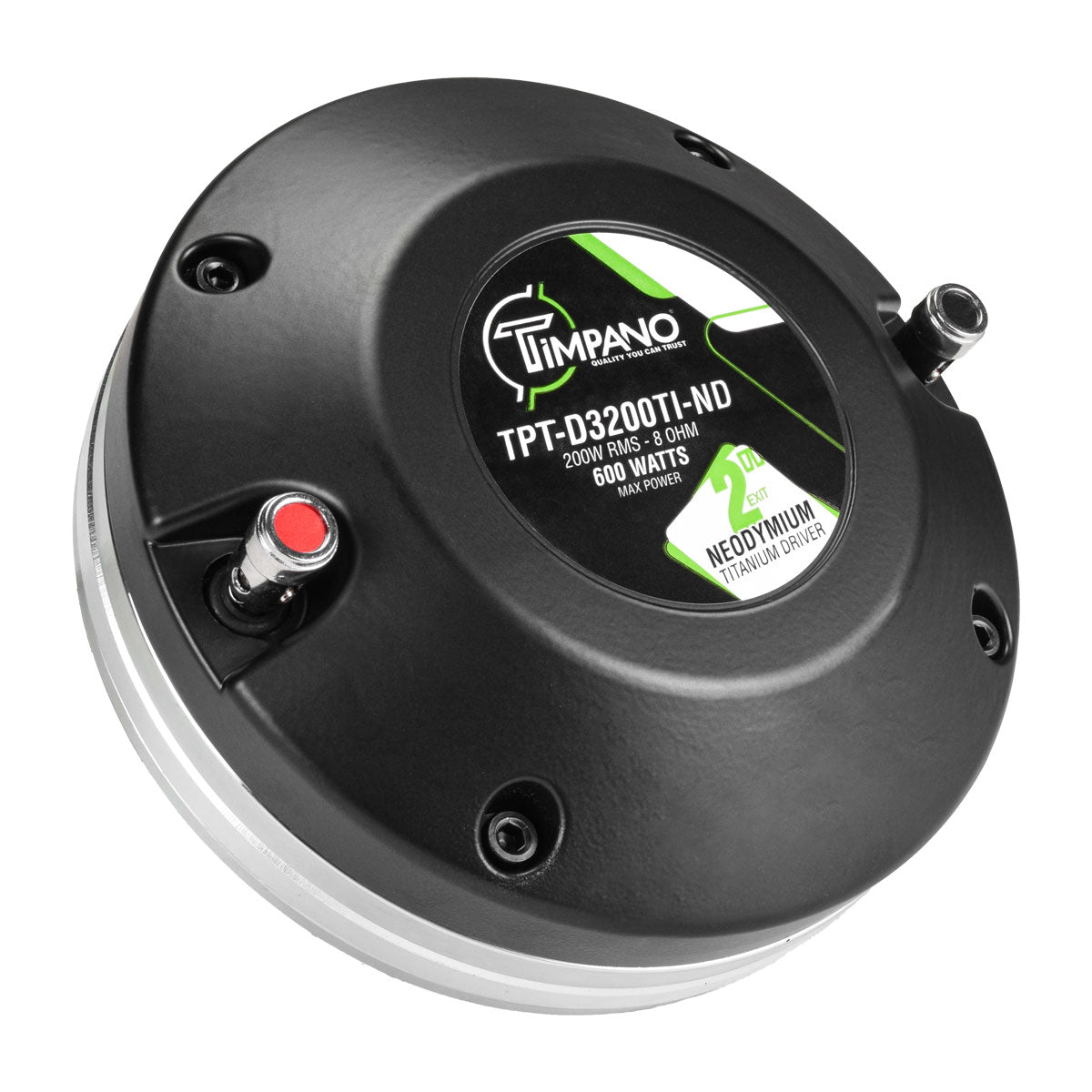

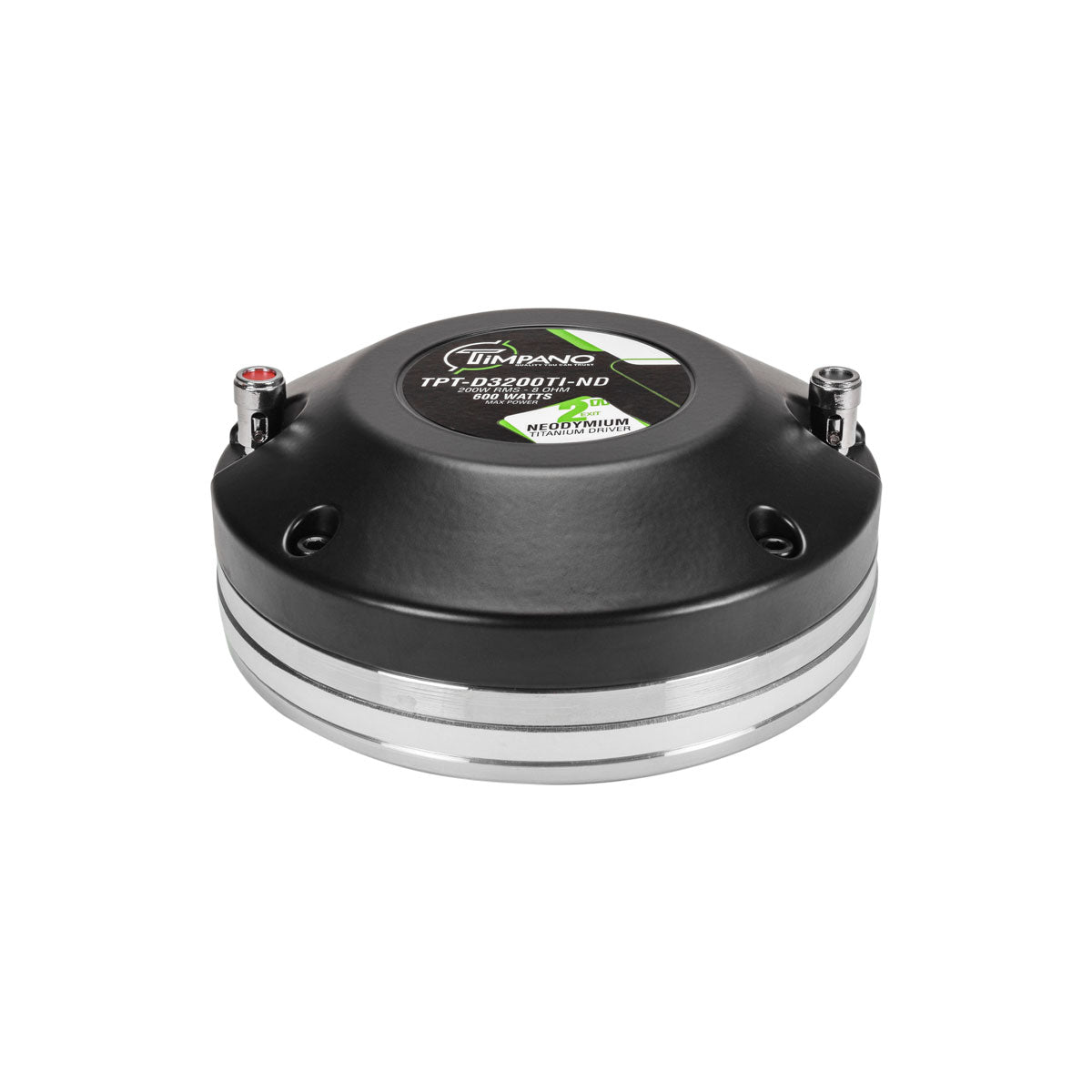

TPT-D3200TI-ND 2″ Exit Neodymium Titanium Compression Driver

For a high output compression driver to be used for the critical mid range high (vocals), choose Timpano’s D3200TI-ND titanium compression driver. A neodymium motor focuses magnet flux into the gap while keeping driver weight below 3.92 pounds.

Titanium diaphragm with a large 3″ voice coil
Impressive 110 dB sensitivity – High output high frequency driver
Powerful and lightweight option for custom doors with TPT-HL14-50 Slim Horn

Compression horn driver uses a neodymium ring motor design to pack as much BL product into the voice coil gap as possible. When combined with the titanium dome diaphragm, to produce crisp sound over a broad range (from 1,200 to 18,000 Hz) with an emphasis on the critical mid range high range.

The high energy motor is also response for output up to 110 dB with only one watt of input power. Designed and Engineered by PRV Audio Group.

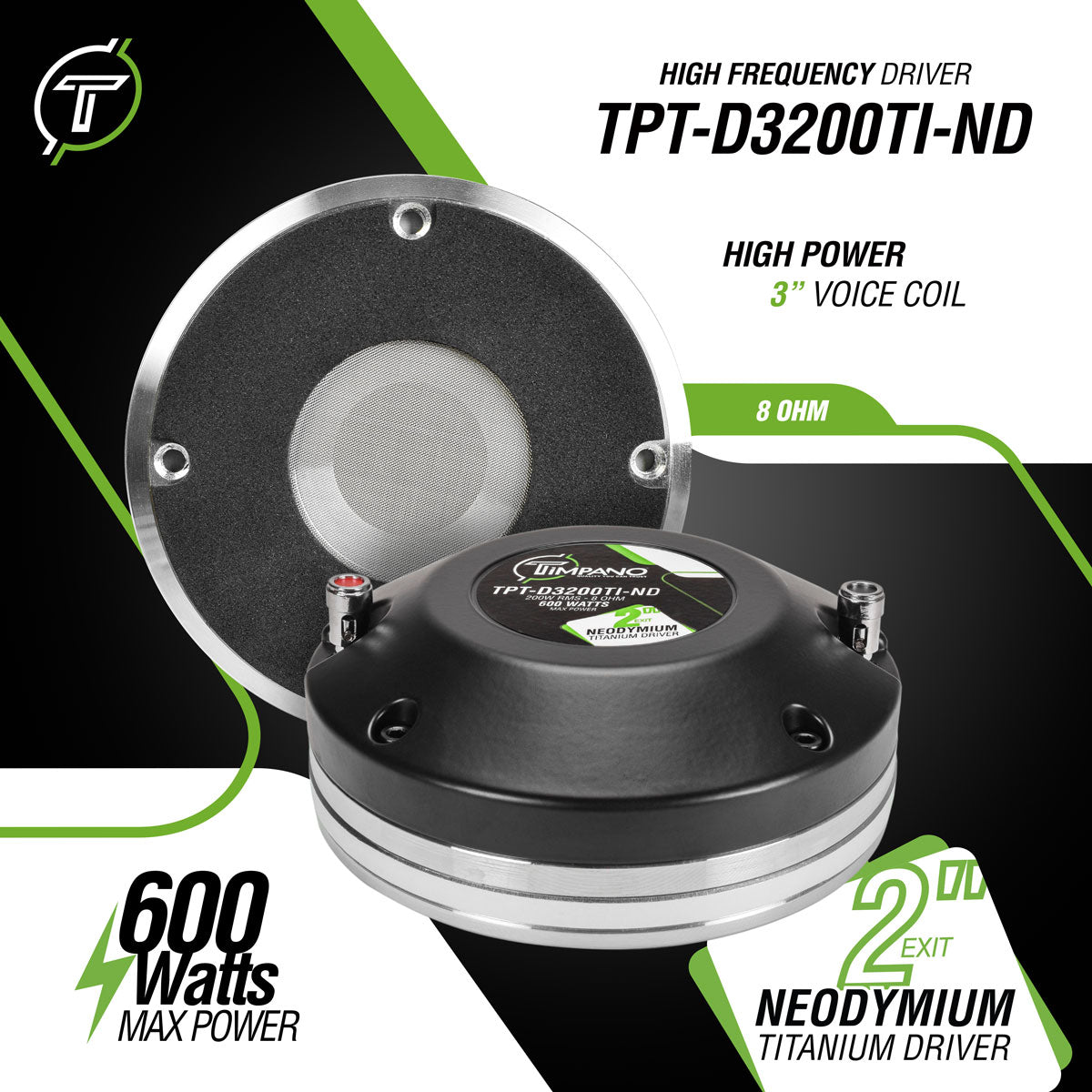

Specs:
600 Watts Max Power
200 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 110 dB
Frequency Response: 1600Hz – 19000Hz

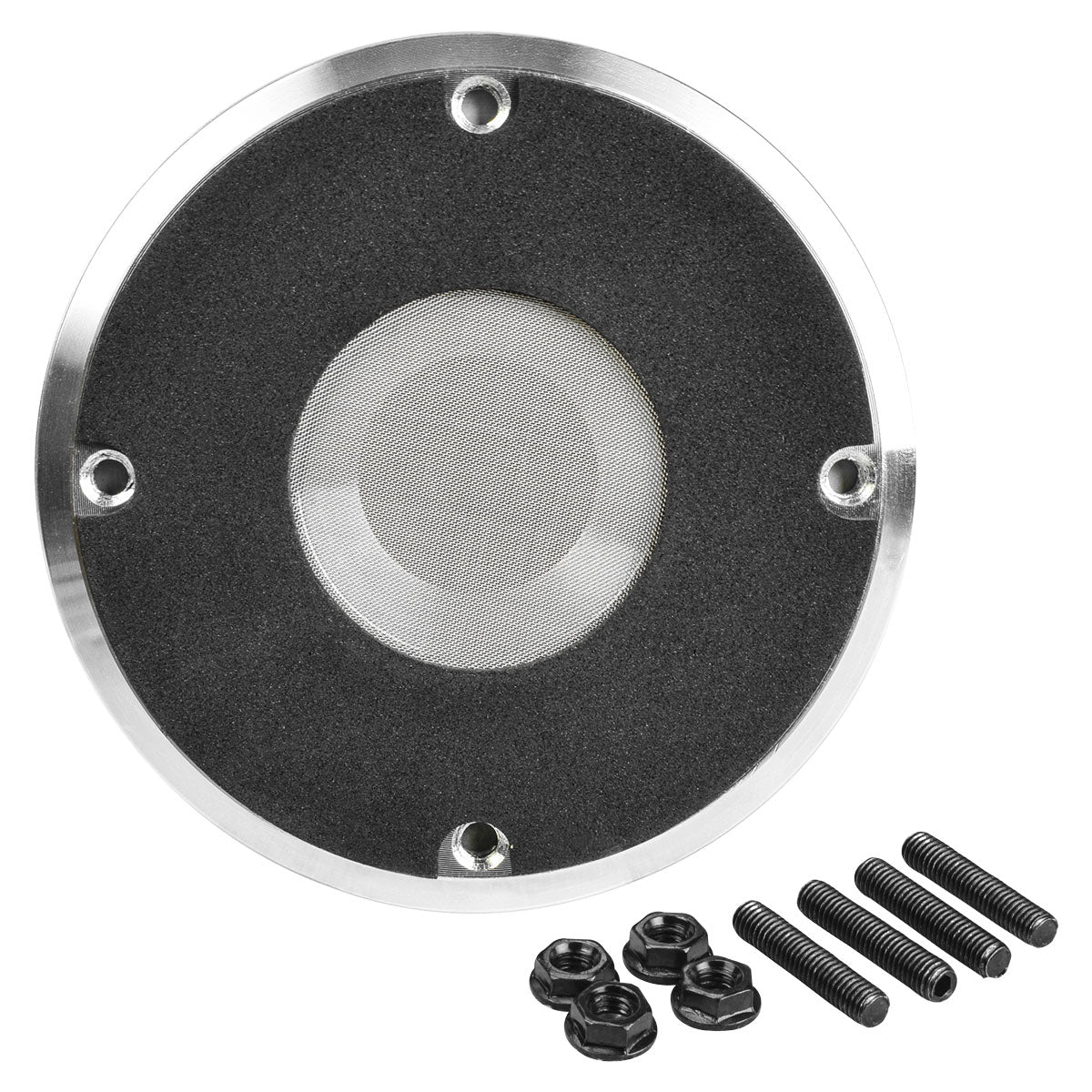

2″ Exit Throat Diameter
3″ Voice Coil
Titanium Diaphragm
Recommended High Pass Filter with TPT-SP4BT DSP:
1400 Hz under 300 Watts of Amplifier RMS Power with 18dB Slope
1600 Hz under 200 Watts of Amplifier RMS Power with 12dB Slope

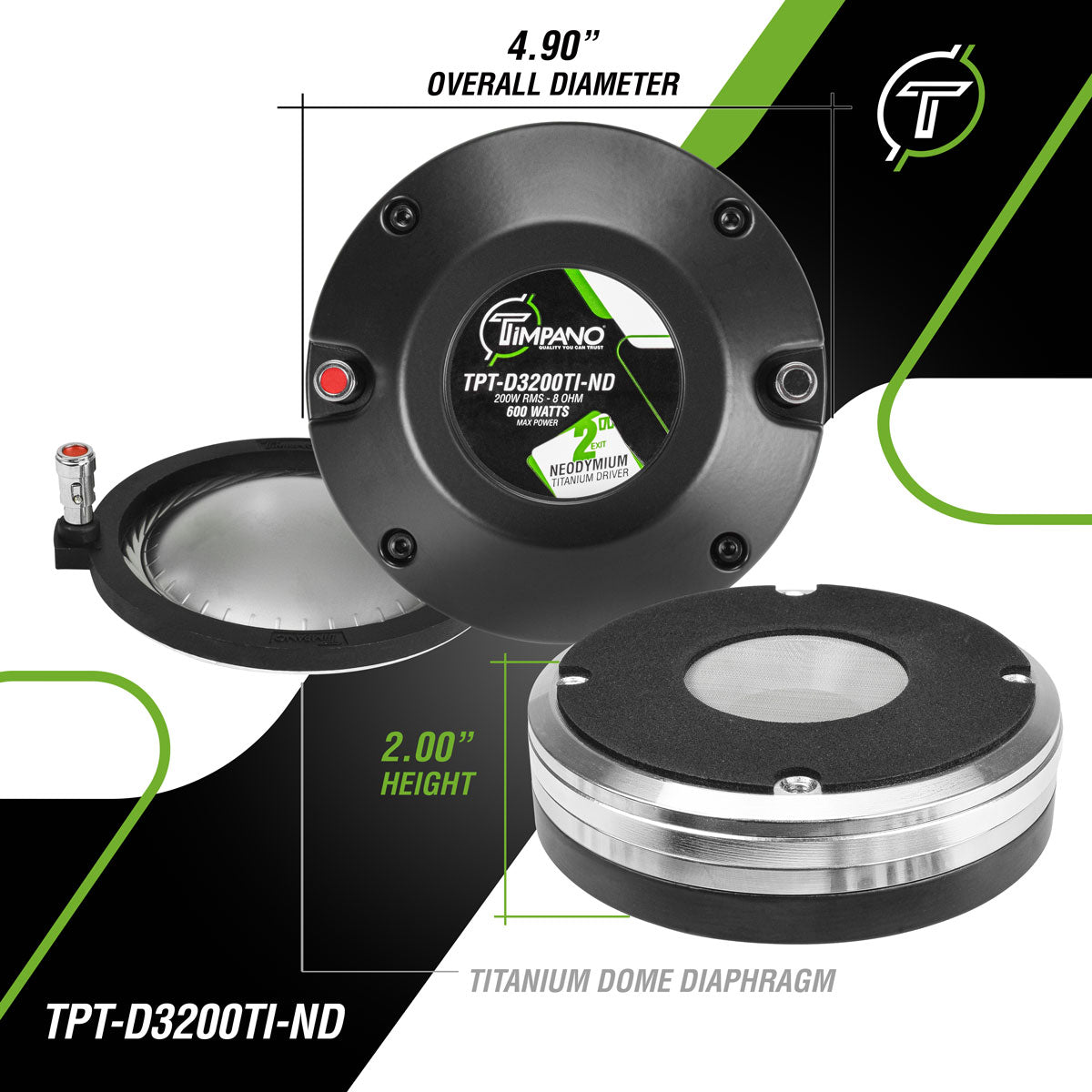

Sizing:
Overall Size: 4.90″ x 4.90″ x 2.00″ Height
Weight: 3.92 Lbs
