TPT-DH175

Timpano Horn Driver TPT-DH175, Car / Pro Audio 250 Watts 8 Ohm 1″ Exit High Frequency Compression Driver

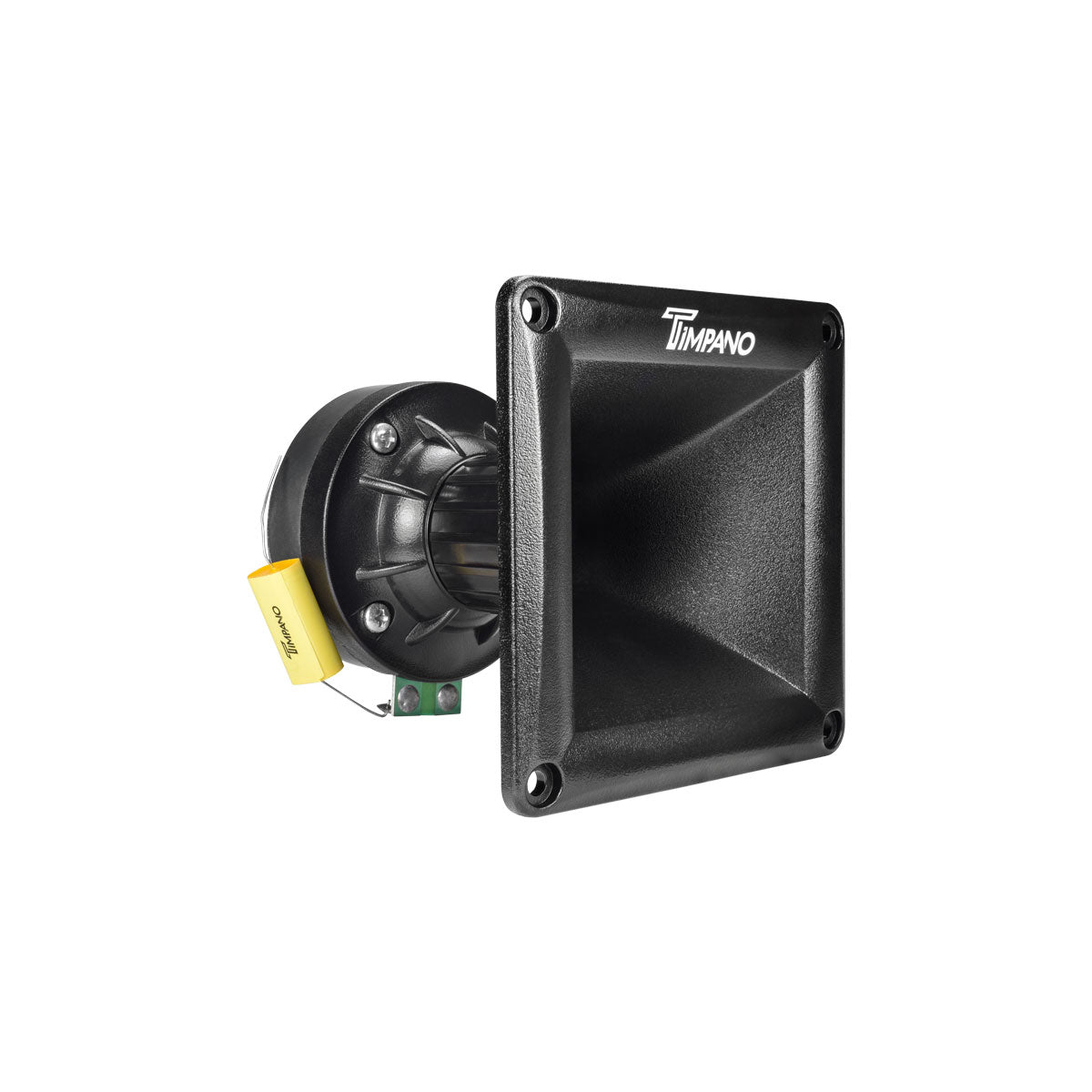

The Timpano TPT-DH175 is a 1″ phenolic dome compression driver specially designed to offer a smooth extended frequency response over a broad band, from mids to highs, with very high efficiency.

Easy to install anywhere, even on car doors. In addition, the small diameter of the compression driver allows simple installation at the front. This horn driver can deliver space filling sound at extremely high SPL levels, a great choice for high output PA, home theater, and car audio systems.

• The wide frequency range ranges from 1,300Hz to 19,000Hz, and the high sensitivity of 108 db makes it a very loud and efficient driver.

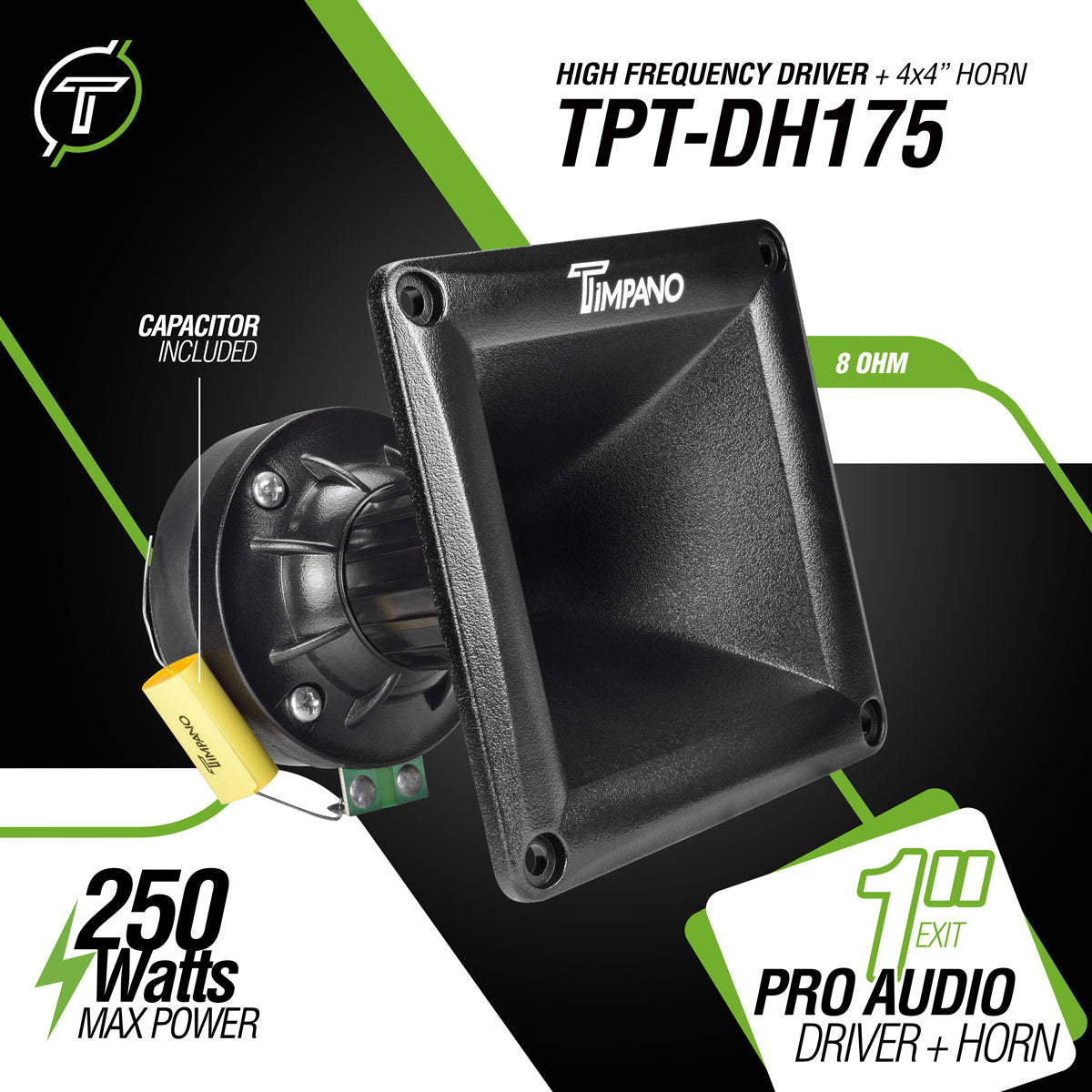

• Handles an impressive 250 Watts Max power and 75w RMS, ensuring that it effortlessly complements your entire audio system. Capacitor included. 8 Ohm Voice Coil.
• Complete your pro audio system with the TPT-DH175. With its 1″ voice coil, this driver maximizes loudness per watt, delivering crisp and clear high frequency range sound.
• Mounting Depth: 4.64”. Extremely loud and clear highs with an amazing frequency response that can even play some mids. Shallow mounting depth for custom car audio door panels.

Ideal for compact 2 or 3-way systems. The 4.5″ x 4.5″ hornTPT-HL11-25 produces a controlled 45° x 45° dispersion pattern to reduce unwanted reflections while still delivering room filling sound. As a replacement for pro audio cabinets, this high frequency horn driver has a common footprint.

Specs:
250 Watts Max Power
75 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 108 dB
Frequency Response: 1.3 kHz – 19 kHz
1″ Voice Coil
Phenolic Diaphragm

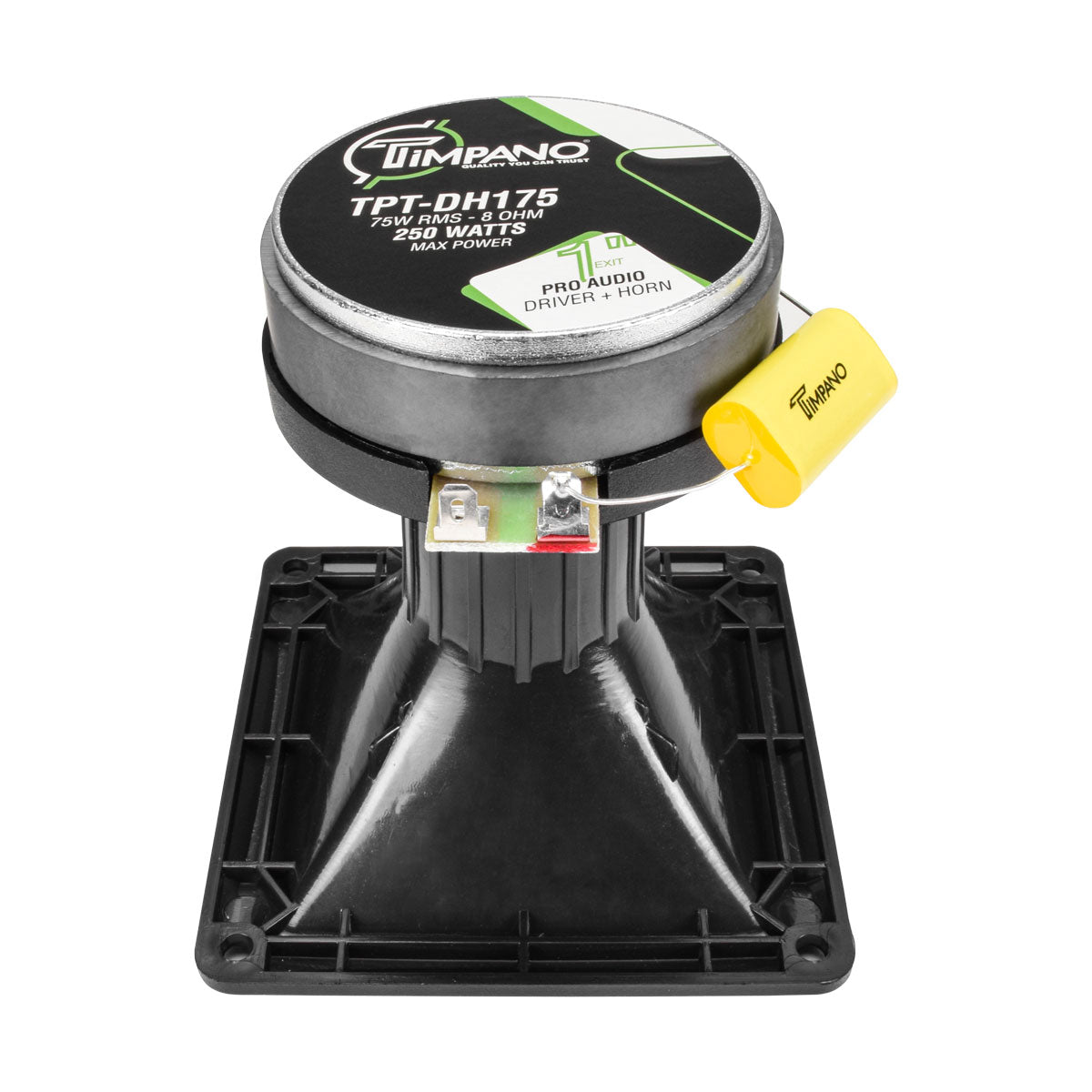

Ferrite Driver
Recommended High Pass Filter on TPT-SP4BT DSP Crossover
1400 Hz under 125 Watts of Amplifier RMS Power with 18dB Slope
1200 Hz under 75 Watts of Amplifier RMS Power with 12dB Slope

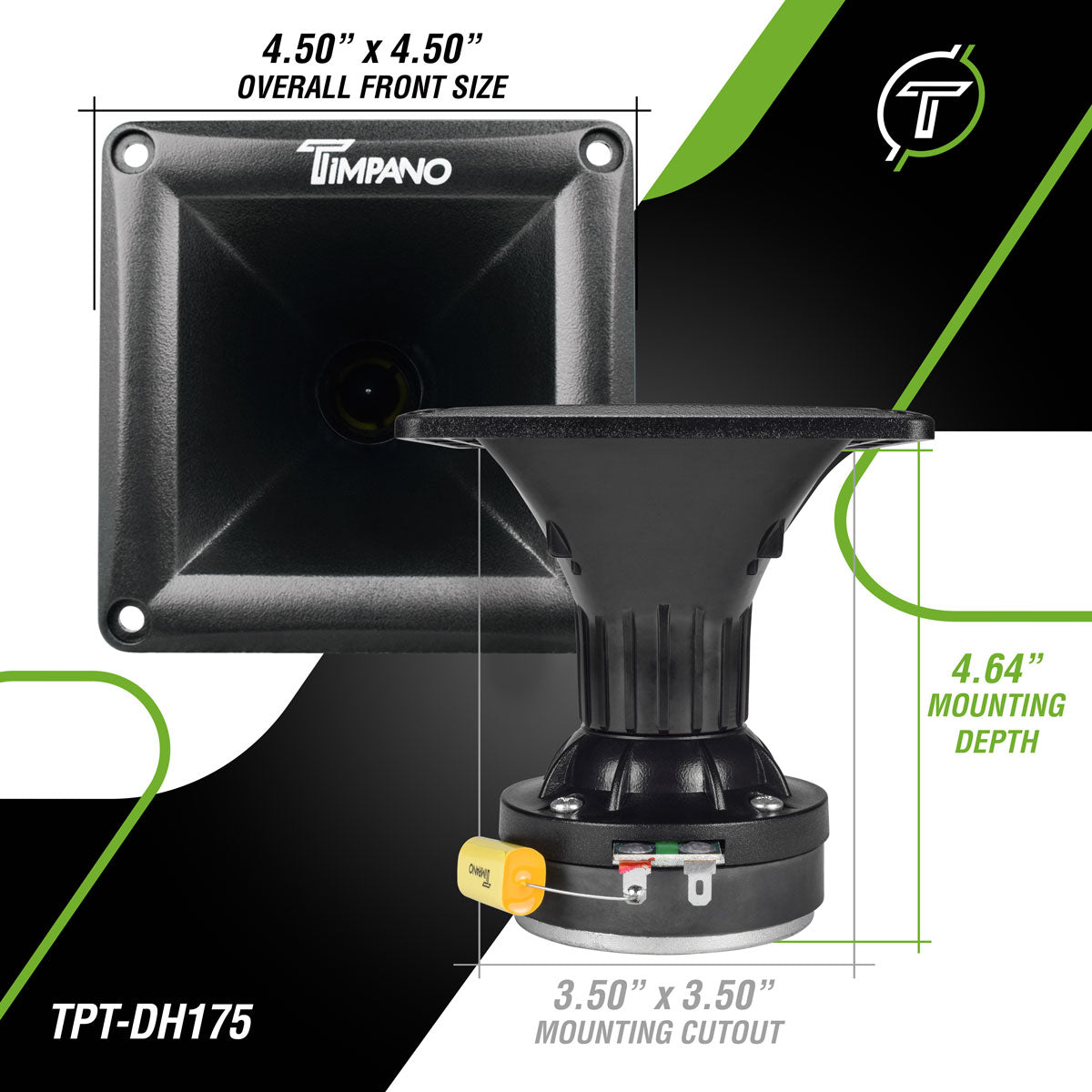

Sizing:
Mounting Depth: 4.64″ (117.8 mm)
Mounting Cutout size: 3.50″ x 3.50″ + Terminal
Overall size: 4.50″ Wide x 4.50″ Length x 4.92″ Height
Weight: 1.15 Lbs

Original Manufacturer Replacement Recone Kit that Maintain Peak Performance are available: TPT-RPDH175
