TPT-T2500-10 D2
TPT-T2500-10 D2 is backordered and will ship as soon as it is back in stock.
PRICE FOR SINGLE UNIT
Couldn't load pickup availability
Warranty Information
Warranty Information
Timpano Audio warrants all new products from any manufacturing defects in materials or workmanship under normal usage for a period not to exceed (1) year from the original purchase date.
If you need assistance for a warranty claim, please choose visit this page - Warranty Center
Delivery and Shipping
Delivery and Shipping
FREE SHIPPING! - 48-States on Orders Over $18 - Order before 1PM EST and Your Order will Ship on the Same Day
TPT-T2500-10 D2
Description
Description

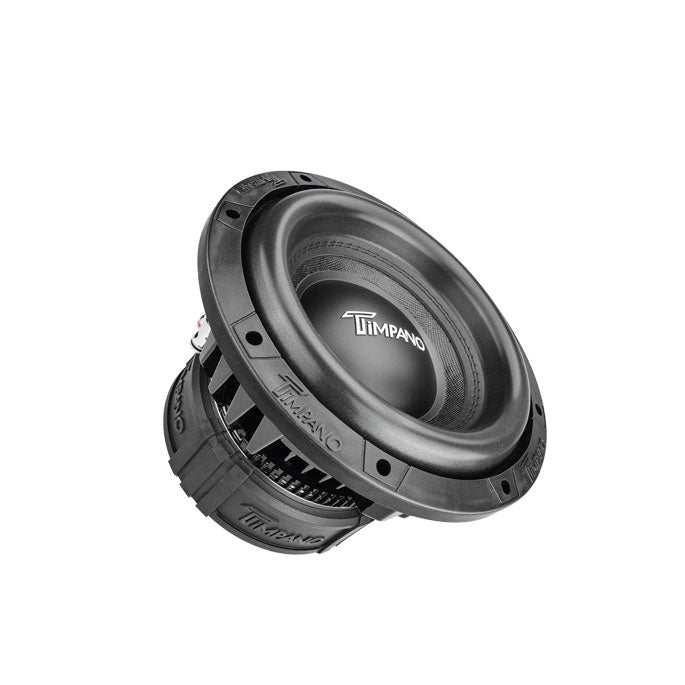

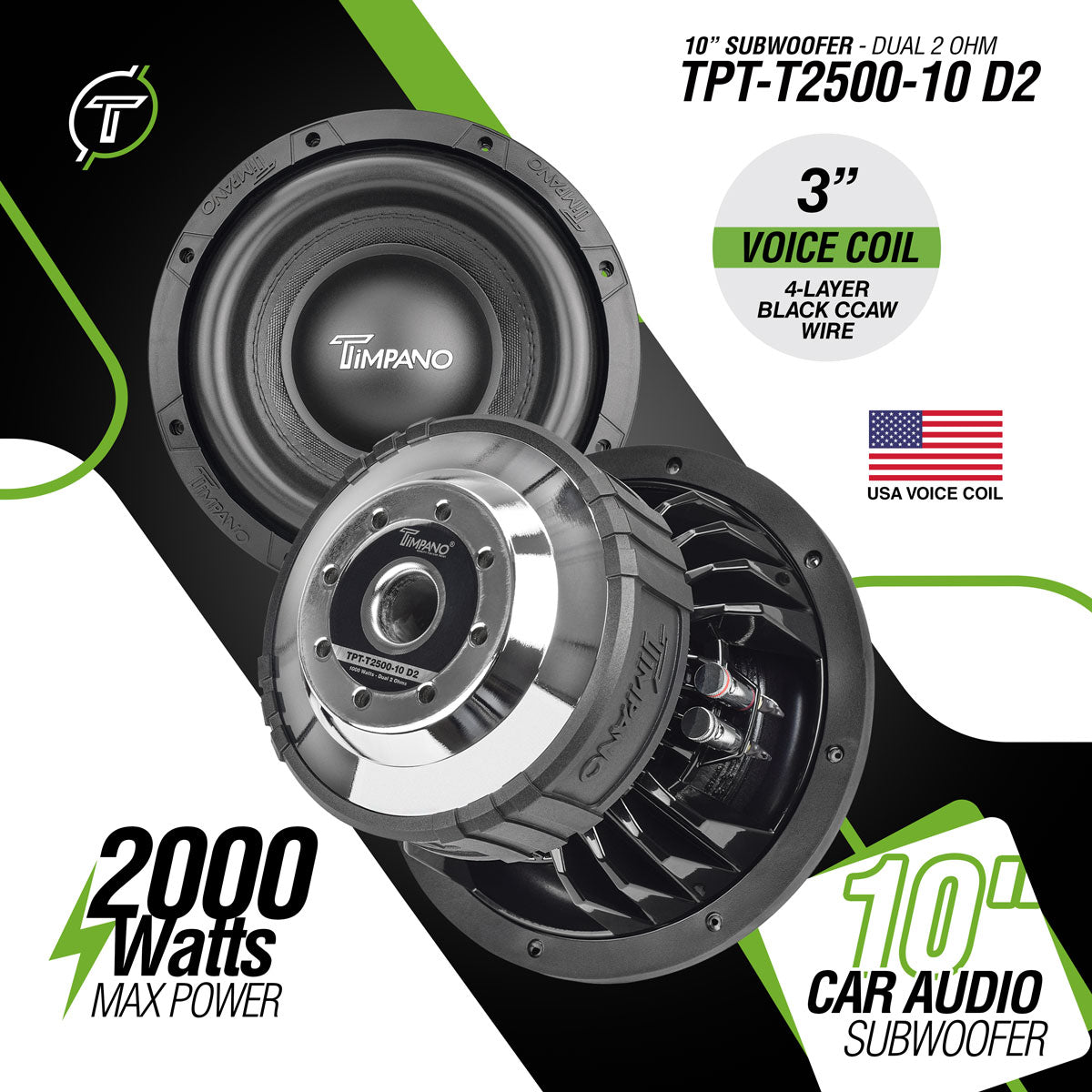

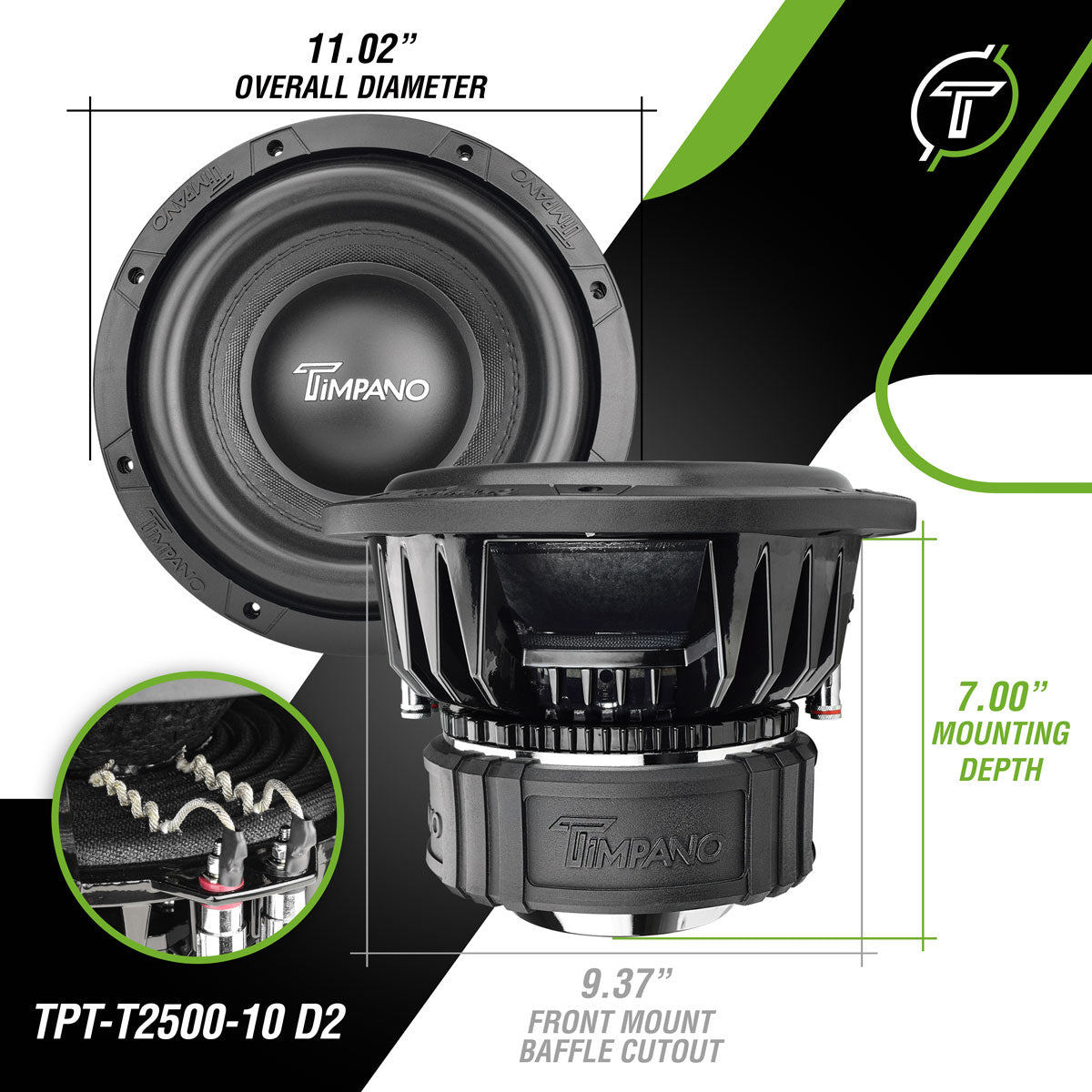

Timpano 10″ Car Audio Subwoofer 2000 Watts Dual 2 Ohm TPT-T2500-10 D2 High Performance
– 4-Layer 3″ Voice Coil Made in USA
– Double Stacked Magnet Competition Grade Series with High Excursion
Entry level competition grade series, for the most extreme customers and the biggest builds!
Timpano T2500 Series was designed to bring the ultimate combination of performance, durability, quality and value. Featuring incredible linear excursion, with top-grade soft parts, American Made voice coils on a colossal cast aluminum styled basket creating a new standard for powerful systems.

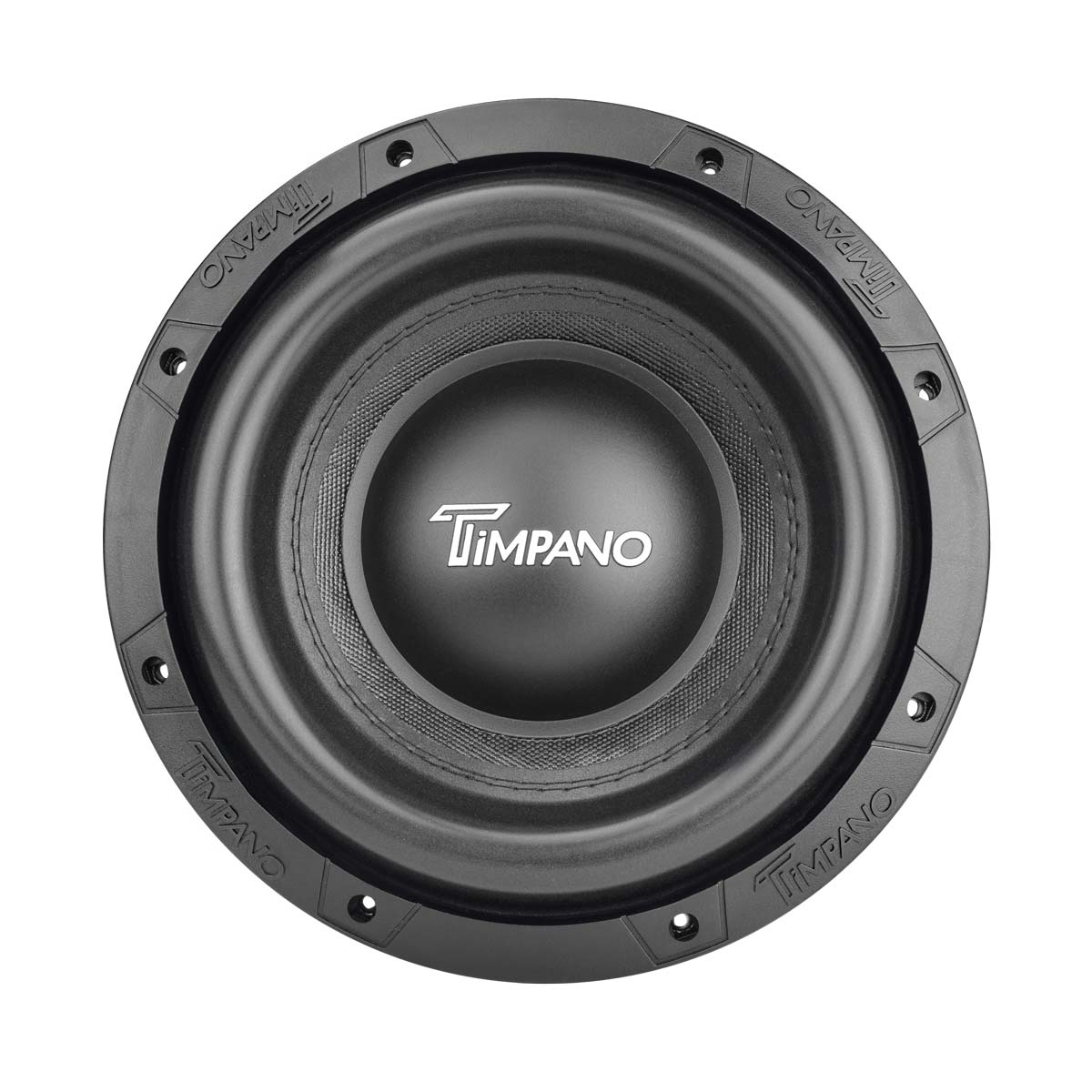

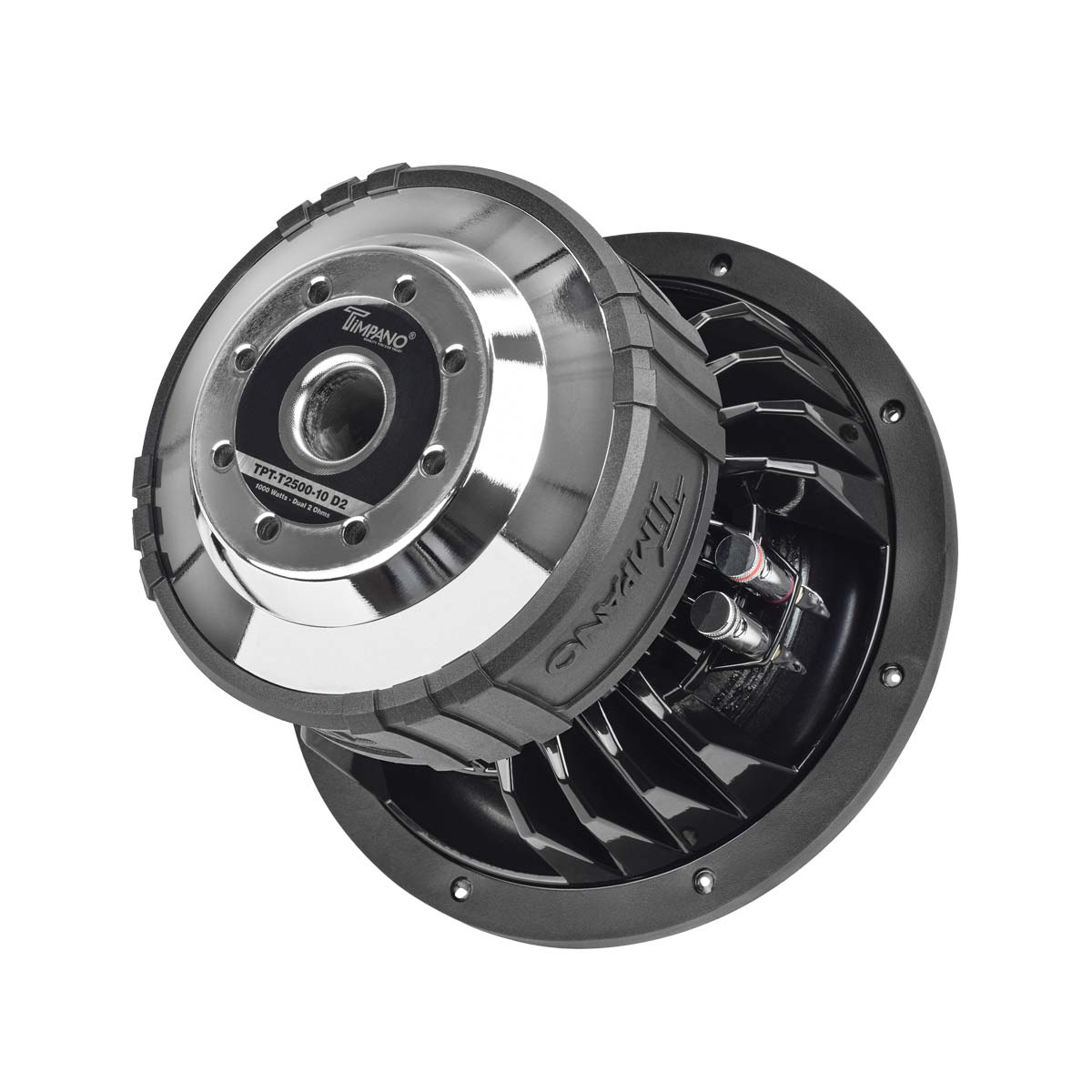

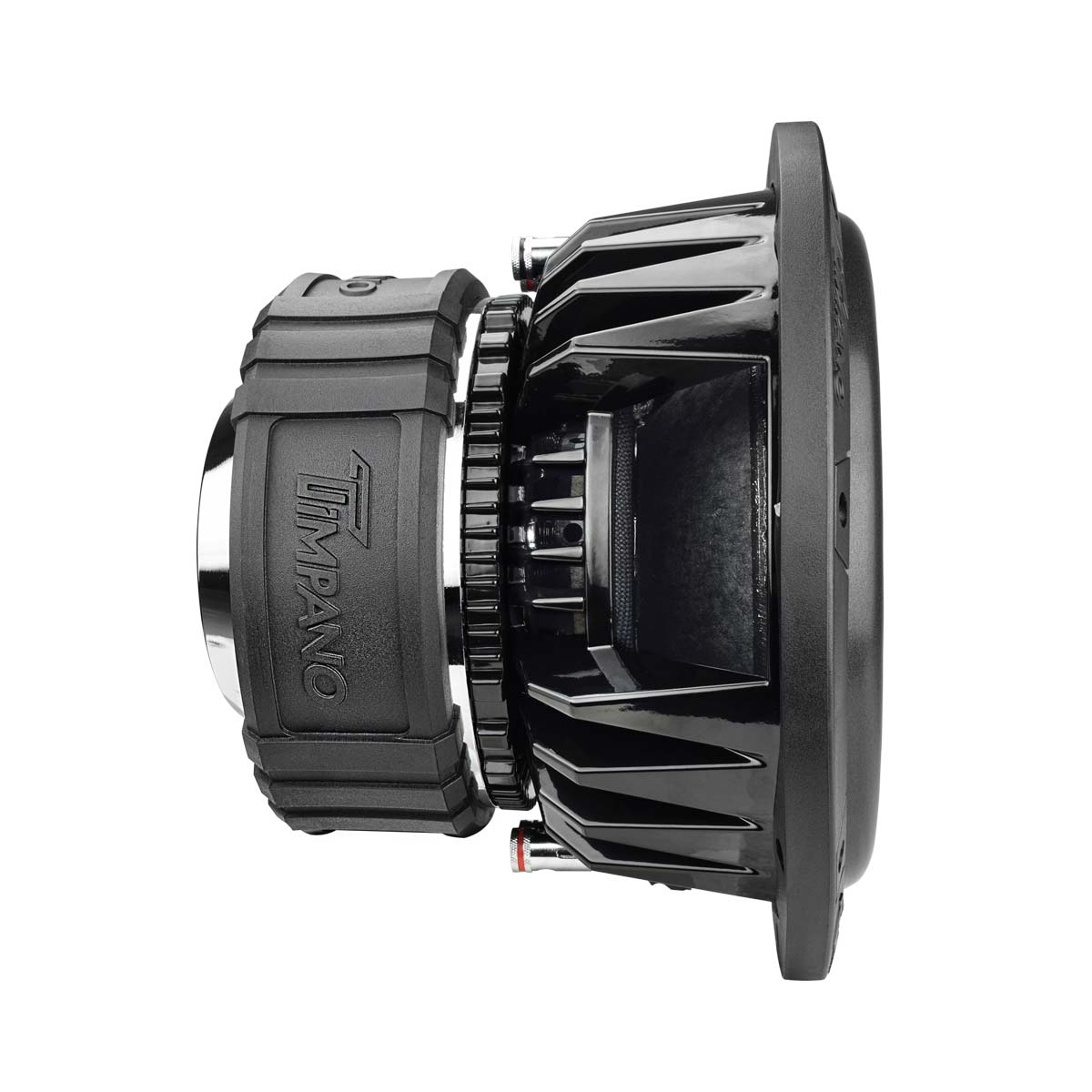

- COMPETITION GRADE COMPONENTS: Its double stacked magnet motor drivers a 3″ American made 4-layer CCAW coil on a black aluminum former all coated with high temperature black adhesive. A stiff reinforced non-pressed treated paper cone & high roll foam surround was used to ensure performance on the lowest tones of bass.

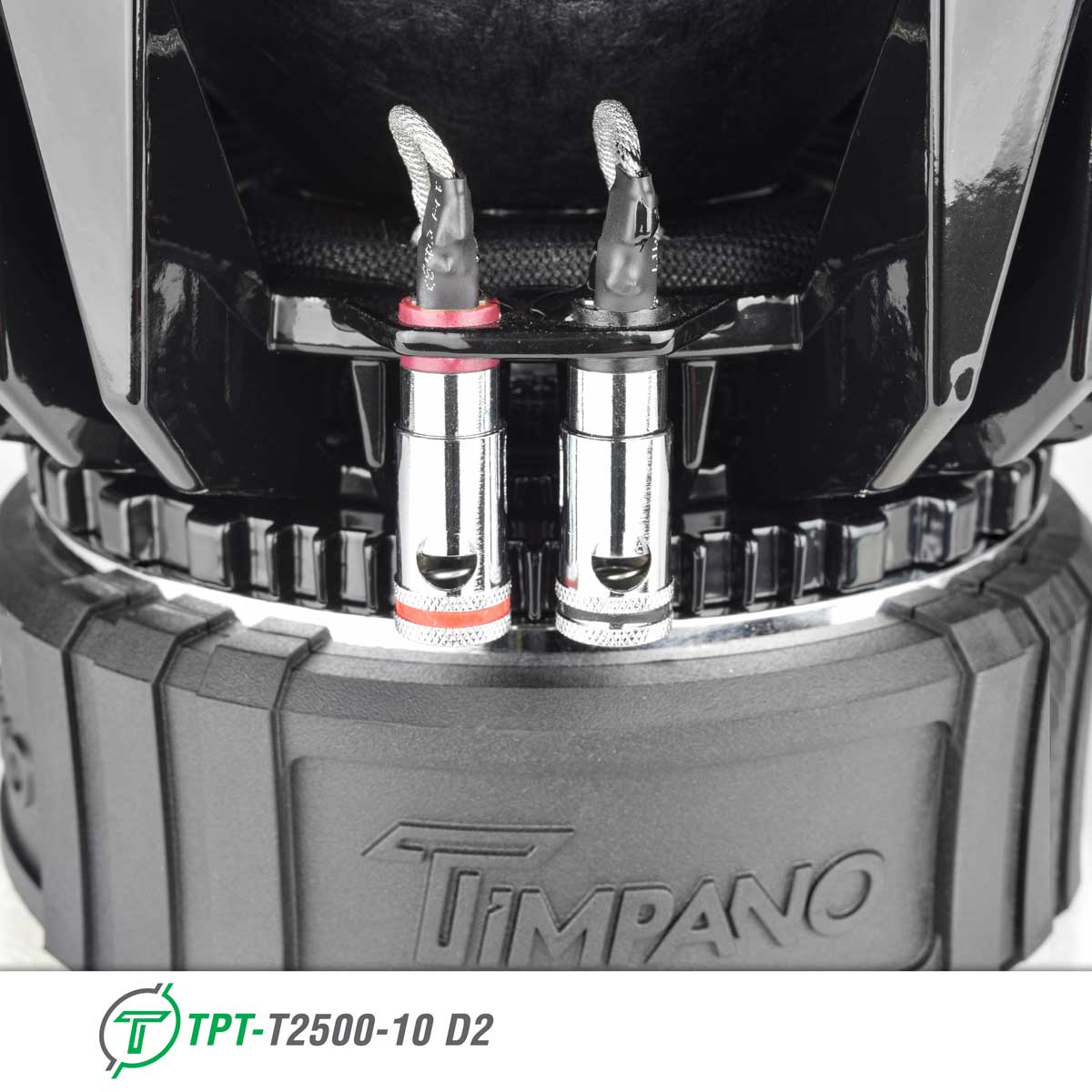

- ENDURANCE: This sub is conservatively rated of 2,000 watts peak power / 1000 watts RMS guaranteeing to put out some crazy output. Equipped with a robust double-layered spider with, stitched-on XL tinsel lead wires, to hold a longer play time, maximizing durability.

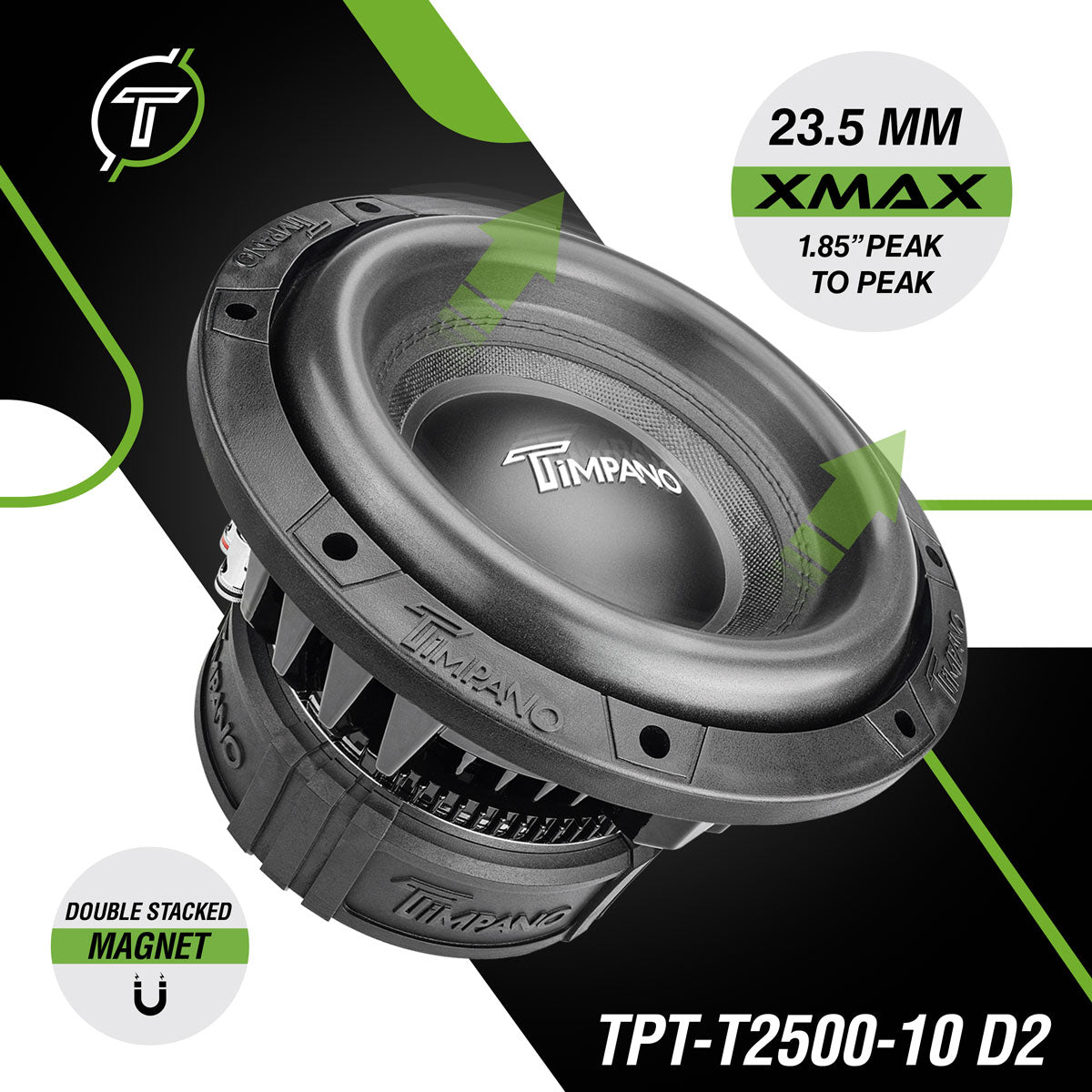

- HIGH EXCURSION: Bassheads searching for more lows! You can look forward to deep, Low, impact bass in a small enclosure with a generous 1.85″ peak-to-peak excursion. Xmax of 23.5 mm one-way and Max Xmech of 32 mm one-way.

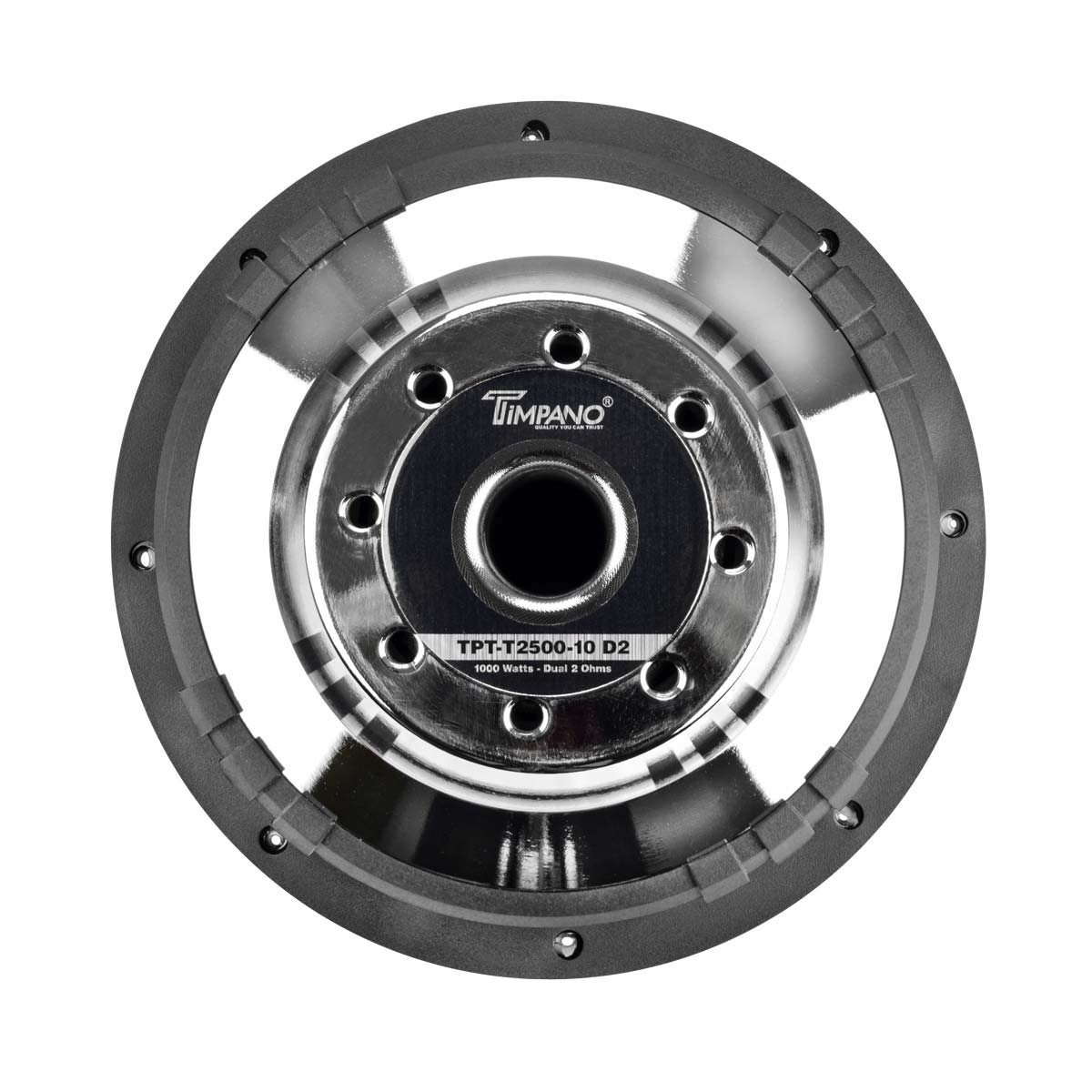

- FEATURES: TPT2500-10 D2 is a quality sub that fits in any audio enthusiast’s budget. Dual 2 Ohm American made voice coils. A chrome vented back plate and unique vented basket design enhances heat dissipation. Stitched cone reinforcement ensures long life.
All the top quality components featured in this sub, as well as its advanced 3-way air flow cooling system, are what ultimately allow for the incredible responsiveness & power handling.
Timpano T2500 series subwoofers will play deeper, with more dynamic range and increase output, after you properly break in your subwoofer. Its suspension is designed to provide a high level of excursion and linear control in ported boxes. A brand new sub will be a little stiff, but with a proper break in, the subwoofer soft parts will stretch out! Which means with less power power you will create the same output with more extended low bass tones.
Additional Information:
THIELE-SMALL PARAMETERS - Wired in Parallel Re 0.9 Ohm
| Free Air Resonance | Fs | 44 Hz |
| Electrical Factor | Qes | 0.77 |
| Equivalent Volume | Vas | 11.59 Liters |
| Total Factor | Qts | 0.77 |
| Mechanical Factor | Qms | 9.81 |
| Linear Excursion | Xmax | 23.5 mm |
| Max Mechanical Excursion | Xmech | 32 mm |
| Bl Factor | Bl | 7.81 Tm |
Box Recommendations:
| Type | Box F3 | Volume | Port Size |
| Compact Sealed Enclosure | 48 Hz | 1.00 ft3 | N/A |
| Compact Ported Enclosure | 37 Hz | 1.15 ft3 | 10" H x 1.50" W x 19" Deep |
| Recommended Ported Enclosure | 30 Hz | 2.00 ft3 | 11” H x 1.75” W x 20” Deep |
Enclosure Recommendations above do include subwoofer and port displacement.
Original Manufacturer Replacement Recone Kit that Maintain Peak Performance are available: TPT-RPT2500-10 D2
⚠️ WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Customer Reviews

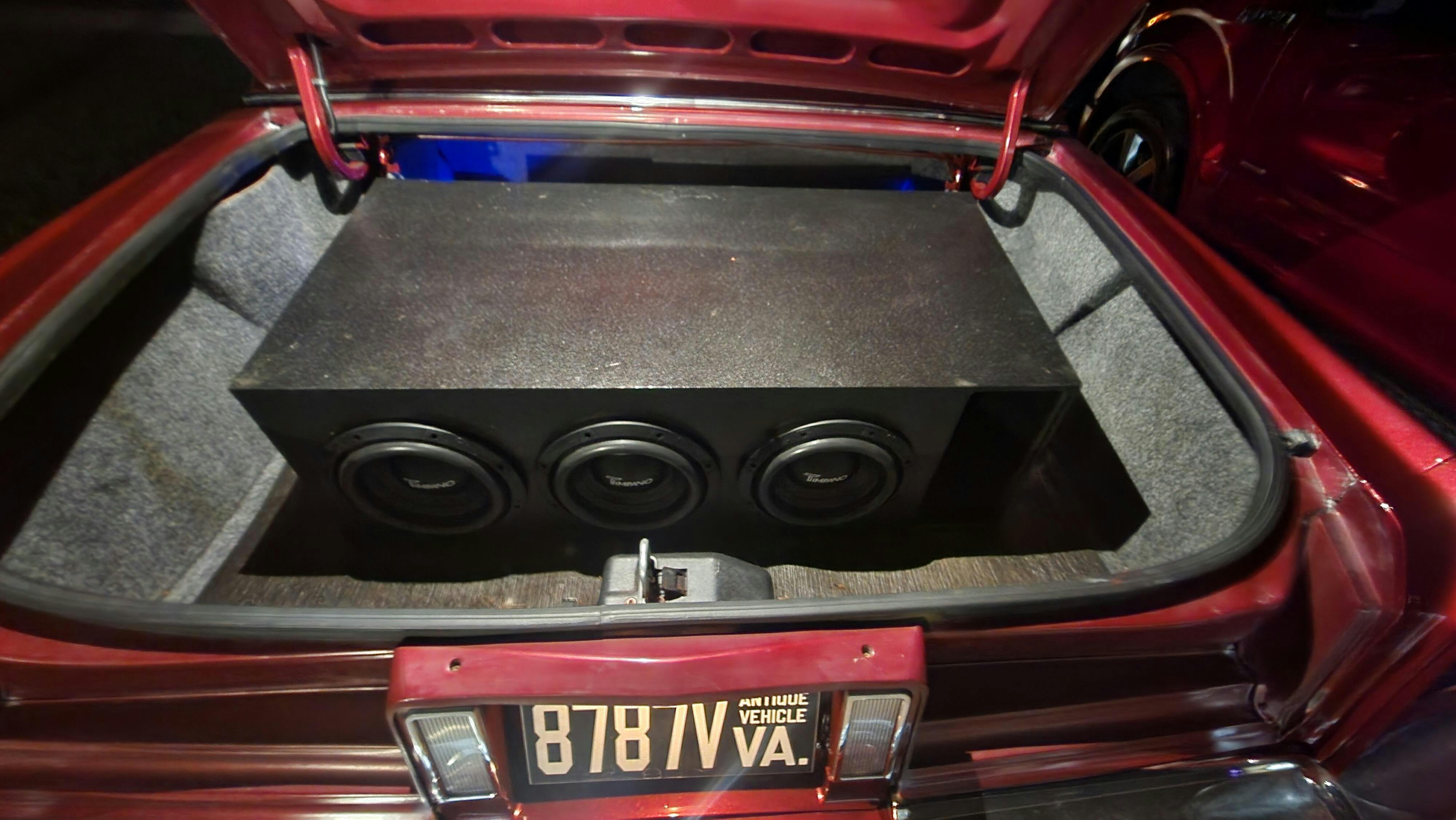

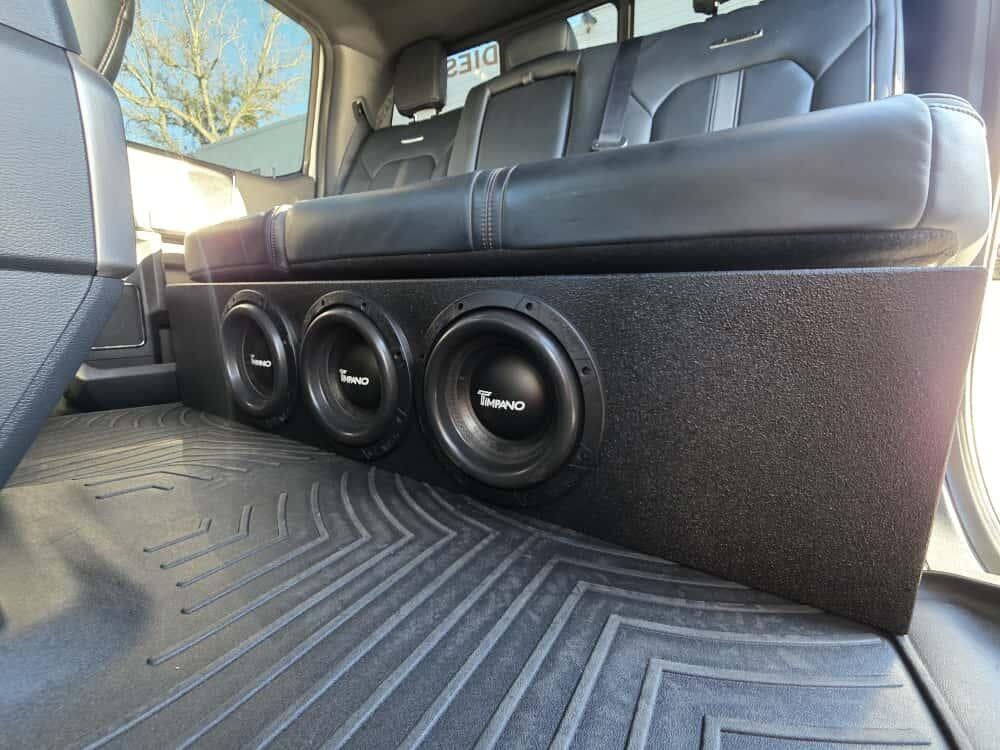

This big 10" surprises me every time and I used it a lot. We put 3 of these on a Timpano TPT-5000 BASS in a 4 cf box under the seat of an F250. Of course we used a seat lift and it filled the whole inside with strong loud bass. These things get down if you don't have a lot of space this 10" is the ticket to big bass in a smaller sub.
They sound great 4me

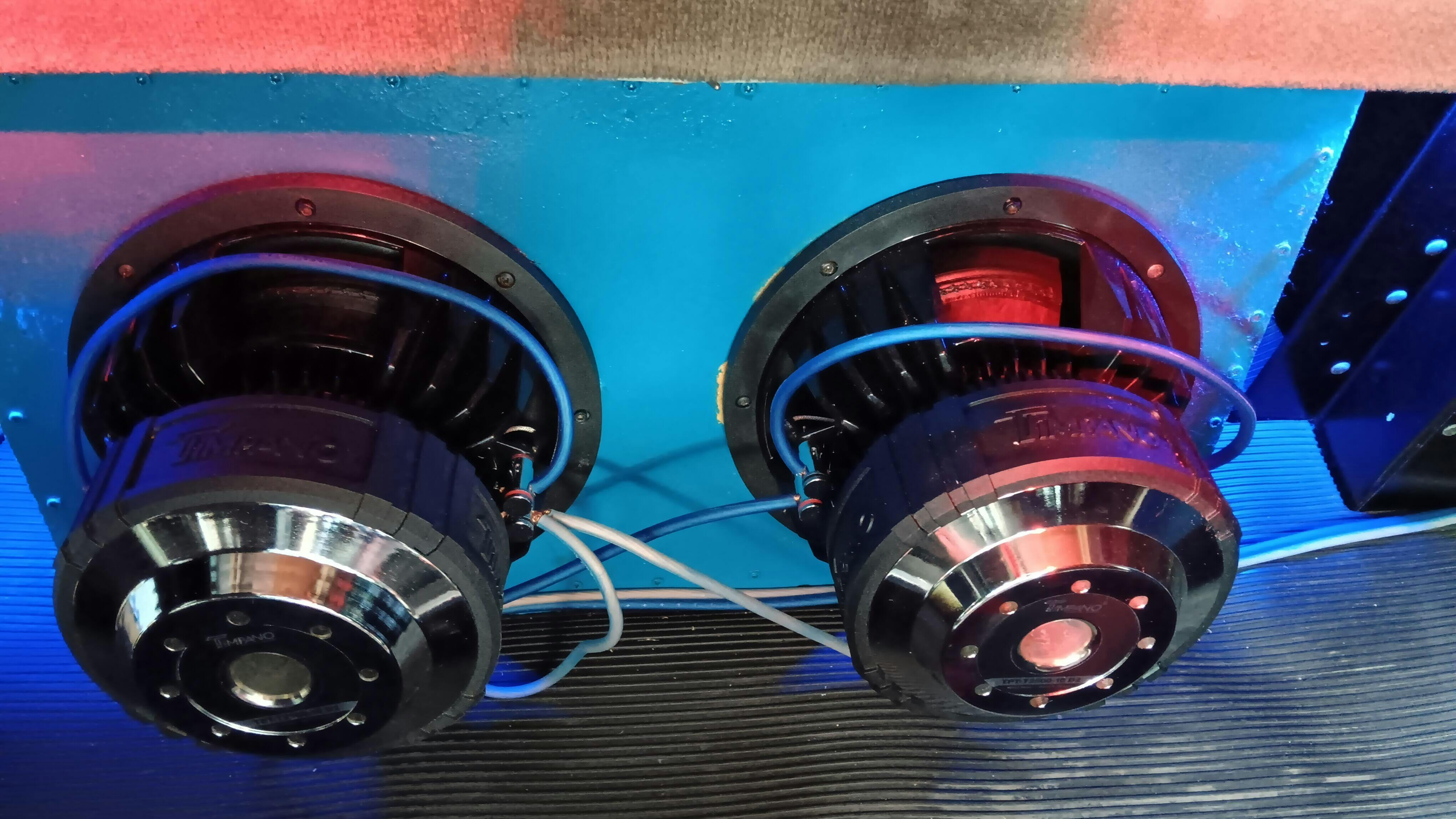

I looked at and reviewed alot of subs before I decided on Tipano. 2 of the selling factors where the low FS and they can go into a sealed box! Based on the music I listen to. Have them wired at 2ohms. I have them running from a CT SOUNDS 2001.D. Even being wired at 2ohms, they get down. Been listening to them about week , and they get better and better. Video's won't do them justice at all. Highly recommended. Put these in my wife's car later on, I'm get the 12 3500 model next.
I built a custom box for a customer using these subs. I tuned them to 34hz with about 1.73cubes per sub. The impact of the bass is brutal and the low notes are just violent. 10 out of 10 recommend on these bad boys
I ordered two of these bad boys, they are loud and very clear. I definitely recommend.
