TPT-5000EQ 2 Ohm
TPT-5000EQ 2 Ohm is backordered and will ship as soon as it is back in stock.
Warranty Information
Warranty Information
Timpano Audio warrants all new products from any manufacturing defects in materials or workmanship under normal usage for a period not to exceed (1) year from the original purchase date.
If you need assistance for a warranty claim, please choose visit this page - Warranty Center
Delivery and Shipping
Delivery and Shipping
FREE SHIPPING! - 48-States on Orders Over $18 - Order before 1PM EST and Your Order will Ship on the Same Day
Description
Description
Timpano 5000 Watts Car Audio Amplifier Fullrange TPT-5000 2 Ohm– 1 Channel Compact 12 volts Monoblock Fullrange Class D Car Amp
Small Footprint Technology! HD Sound Quality!
Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact fullrange amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 80-90% in a compact Class D fullrange amplifier.
Additional Information:
- Number of Channels: 1
- RMS Power at 2 Ohm 12.6 Volts: 5000 Watts RMS
- RMS Power at 4 Ohm 12.6 Volts: 3050 Watts RMS
- Supply Voltage: 9.5 ~ 15 Volts
- Frequency Response: 10Hz ~ 15KHz
- Crossover Low Pass: 50Hz ~ 15KHz
- Crossover High Pass: 10Hz ~ 700Hz
- Signal to Noise: > 90 dB
- Harmonic Distortion: < 0.9 % THD
- Input Sensitivity: 0.2 Volts
- Input Impedance: 26K Ohm
- Impedance Output: 2 Ohm
- Consumption with Signal Musical: 3.1A ~ 240A
- Consumption with Signal Bass: 3.1A ~ 480A

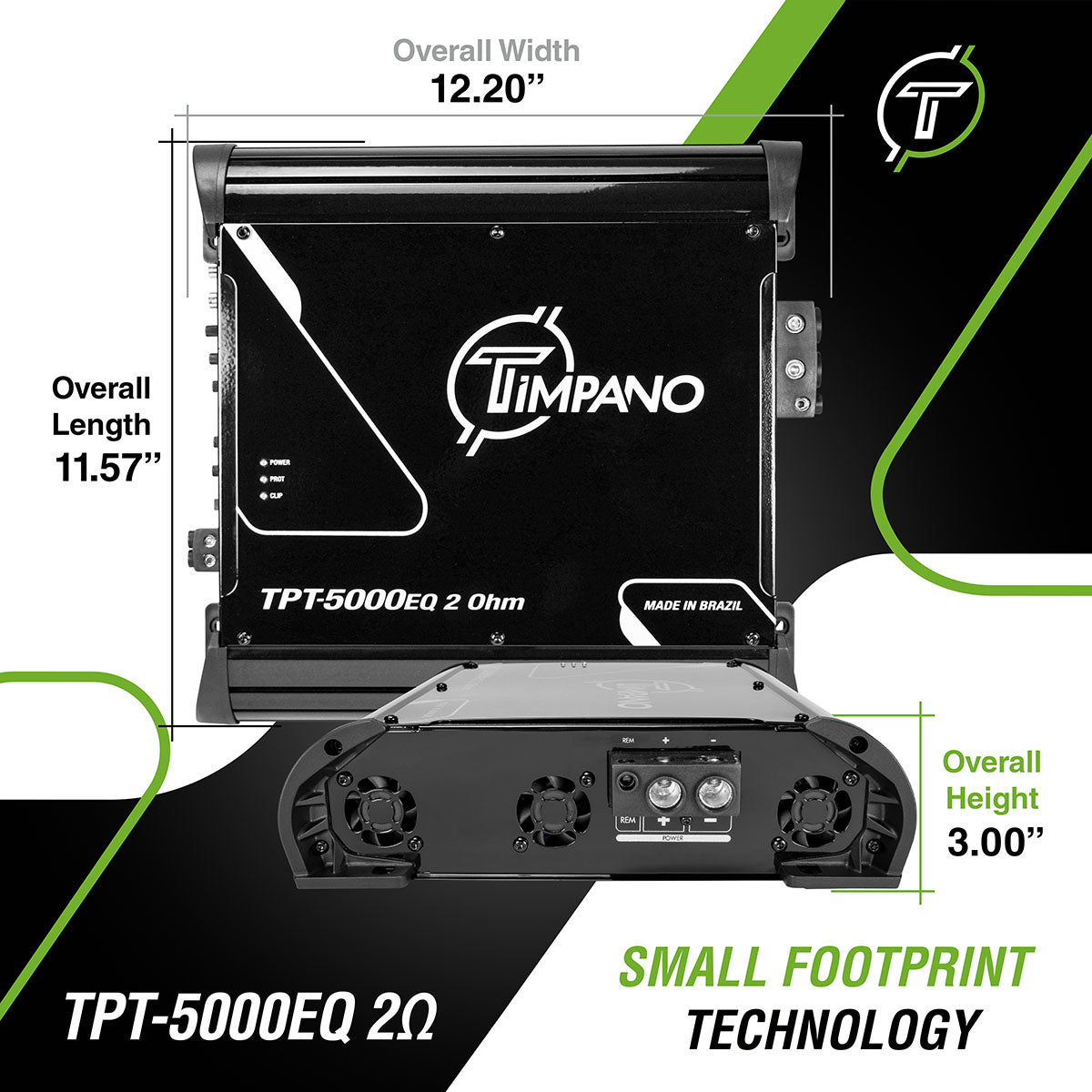

- Dimensions (L x W x H): 11.57” x 12.20” x 3”
- Weight: 9 Lbs
Features:

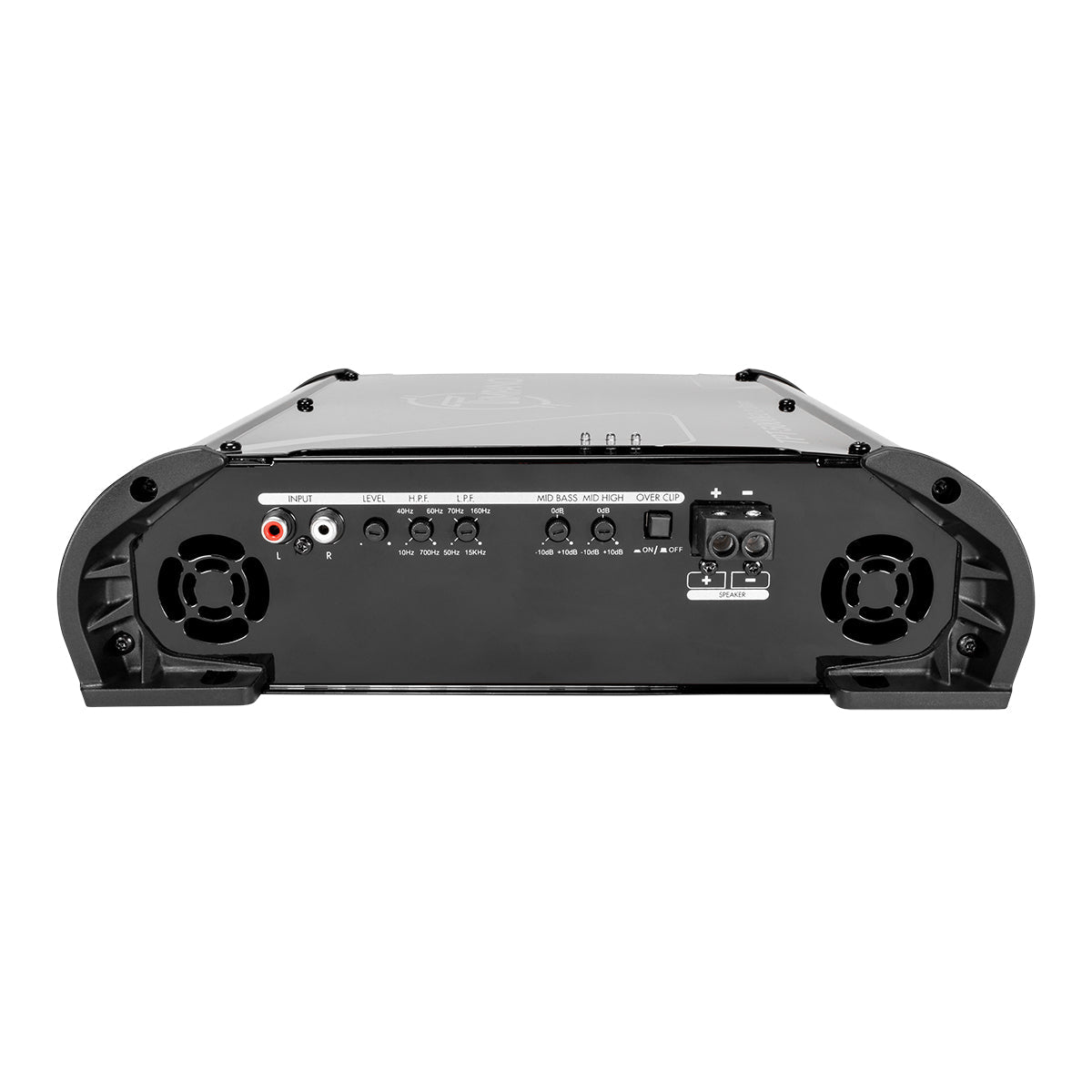

The TPT-5000EQ offer 1 channel with advanced individual equalization features for Midbass and Midhigh, plus the traditional Level, High and Low Pass Filter features. Its Full-range frequency response from 10Hz to 20KHz allows the installation of Subwoofers, Speakers, Drivers and Tweeters.
Use the guide Below for recommended applications, where you can get the full potential of your amplifier.
Before Installing:
You must follow the instructions for the product’s installation and connections to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
• Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to the equipment connected to the amplifier;
• Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;
• Always use 100% Copper cables and good quality connectors. This guarantees the sound’s quality and fidelity;
• To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: Use a 200A fuse 12 inches away from the battery as a safety precaution
The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 100Hz to 1KHz sinusoidal signal and THD <= 10%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.
