TPT-3000 1 Ohm



Number of Channels: 1
3350 Watts RMS Power at 1 Ohm 14.4 Volts
2100 Watts RMS Power at 2 Ohm 14.4 Volts
Frequency Response: 10Hz ~ 20KHz

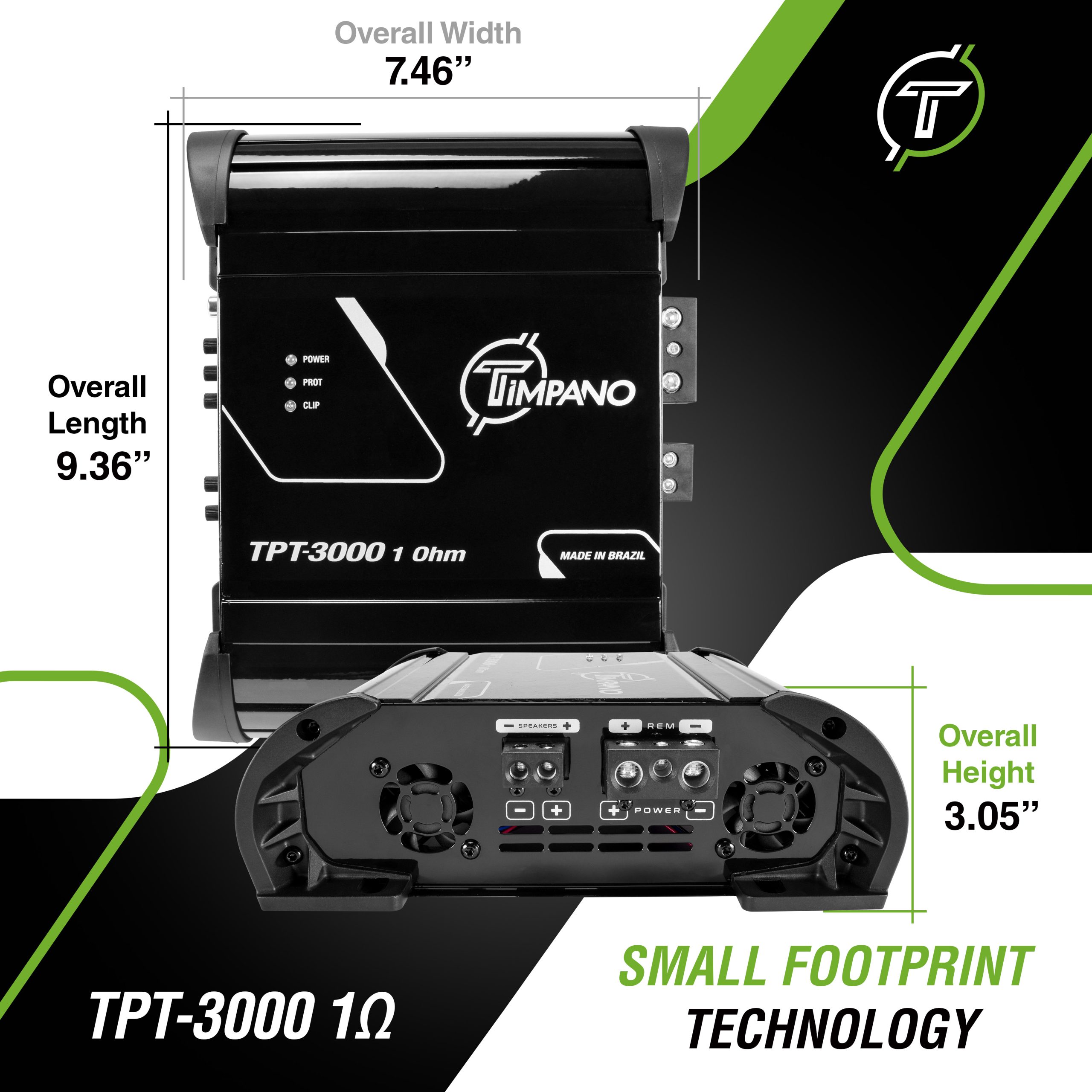

Dimensions (L x W x H): 9.36” x 7.46” x 3.05”
Weight: 3.74 Lbs

In stock


SKU: TPT-3000 1 Ohm Categories: ,


Timpano 3000 Watts Car Audio Amplifier Fullrange TPT-3000 1 Ohm – 1 Channel Compact 12 volts Monoblock Fullrange Class D Car Amp

Small Footprint Technology! HD Sound Quality!

Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact full range amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 80-90% in a compact Class D full range amplifier.

  • COMPACT DESIGN: Digital class D Brazilian technology allows this car audio amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 9.36″ depth x 7.46″ width x 3.05″ height
  • POWER: This monoblock amplifier is designed to run your system with the power it needs to perform! 3000 Watts RMS power output at 1 Ohm 1 channel. Its high efficiency rate of 86% provides more power with less battery consumption.
  • FEATURES: Heavy duty power and speakers terminals. Built-in variable crossover filters for easy tuning! Set setting for your type of speaker with a HPF 10 to 700Hz and LPF 90 to 20,000Hz without a need for an external crossover or DSP. It also includes Variable Gain Control. Level controls are not for adjusting volume. They adjust the amount of signal that is coming into the amplifier from your signal source.
  • TECHNOLOGY: A smart electronic 2-way protection circuit protects the amp if it gets too hot or if speakers fail causing a short! Focusing in sound quality, a full range response of 10 to 20,000Hz was used to give the best sound reproduction on this compact amplifier.

Additional Information:

Number of Channels: 1
3000 Watts RMS Power at 1 Ohm 12.6 Volts
2000 Watts RMS Power at 2 Ohm 12.6 Volts
Supply Voltage: 9V ~ 16V
Frequency Response: 10Hz ~ 20KHz
Crossover Low Pass: 90Hz ~ 20KHz
Crossover High Pass: 10Hz ~ 700Hz
Signal to Noise: > 90 dB
Input Impedance: 7K Ohm
Impedance Output: 1 Ohm
Musical Consumption: 150A
Dimensions (L x W x H): 9.36” x 7.46” x 3.05”
Weight: 4.81 Lbs


The TPT-3000 offer 1 channel with advanced individual equalization features for Mid Bass and Mid High, plus the traditional Level, High and Low Pass Filter features. Its Fullrange frequency response from 10Hz to 20KHz allows the installation of Subwoofers, Speakers, Drivers and Tweeters.

Use the guide Below for recommended applications, where you can get the full potential of your amplifier.



Before Installing:

You must follow the instructions for the product’s installation and connections to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

• Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to the equipment connected to the amplifier;

• Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;

• Always use 100% Copper cables and good quality connectors. This guarantees the sound’s quality and fidelity;

• To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: Use a 150A fuse 12 inches away from the battery as a safety precaution

The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 100Hz to 1KHz sinusoidal signal and THD <= 10%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant  load ) is not recommended.
