TPT-D3000 2″ Exit Titanium Compression Driver – High Frequency 600 Watts 8 Ohm

For a high output compression driver to be used for the critical mid range high (vocals), choose Timpano’s D3000 titanium compression driver. A powerful ceramic ferrite magnet structure provides the high magnetic flux density required for its high efficiency, accuracy, and extended high frequency response.

• Titanium diaphragm with a large 3″ voice coil
• Impressive 109 dB sensitivity – High output high frequency driver
• 2″ throat exit and 4-bolt mount is compatible with many popular horns

With a 2″ throat and standard 4-bolt mount, this driver is compatible with a variety of popular horn designs making it ideal for everything from concert speakers to high SPL car audio systems. All of this makes this high frequency driver perfect for any systems that needs to deliver continuous high output levels while producing the lowest possible distortion.

When combined with the titanium dome diaphragm, to produce crisp sound over a broad range (from 1,500 to 18,000 Hz) with an emphasis on the critical mid range high range.

Specs:
600 Watts Max Power
200 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 109 dB
Frequency Response: 1500Hz – 18000Hz
2″ Exit Throat Diameter
3″ Voice Coil
Titanium Diaphragm
Recommended High Pass Filter:
1400 Hz under 300 Watts of Amplifier RMS Power with 18dB Slope
1600 Hz under 200 Watts of Amplifier RMS Power with 12dB Slope
Sizing:

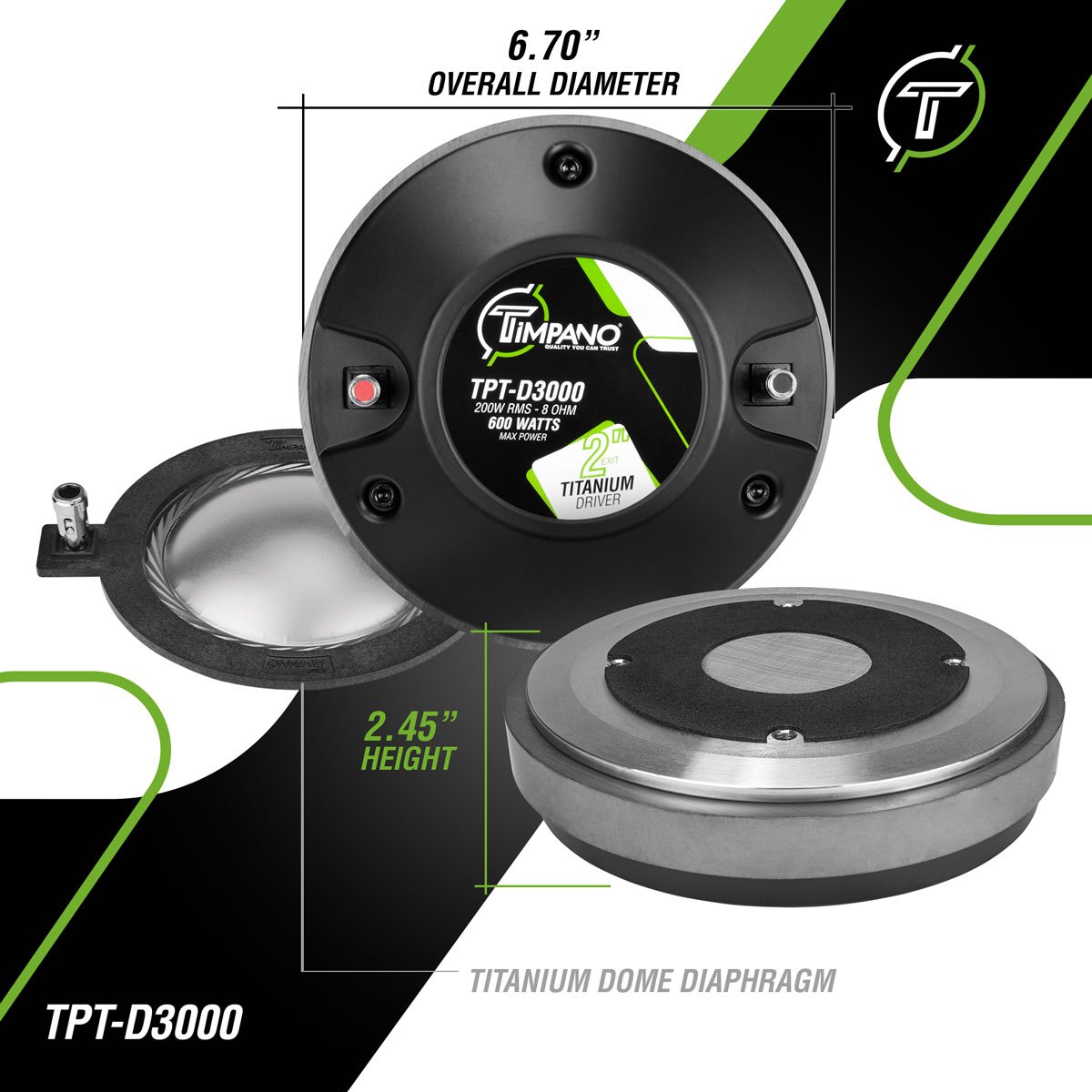

Overall Size: 6.70″ x 6.70″ x 2.45″ Height
Weight: 9.50 Lbs

Original Manufacturer Replacement Diaphragms that Maintain Peak Performance are available:
TPT-RPD3000
