TPT-DH100

$19.95

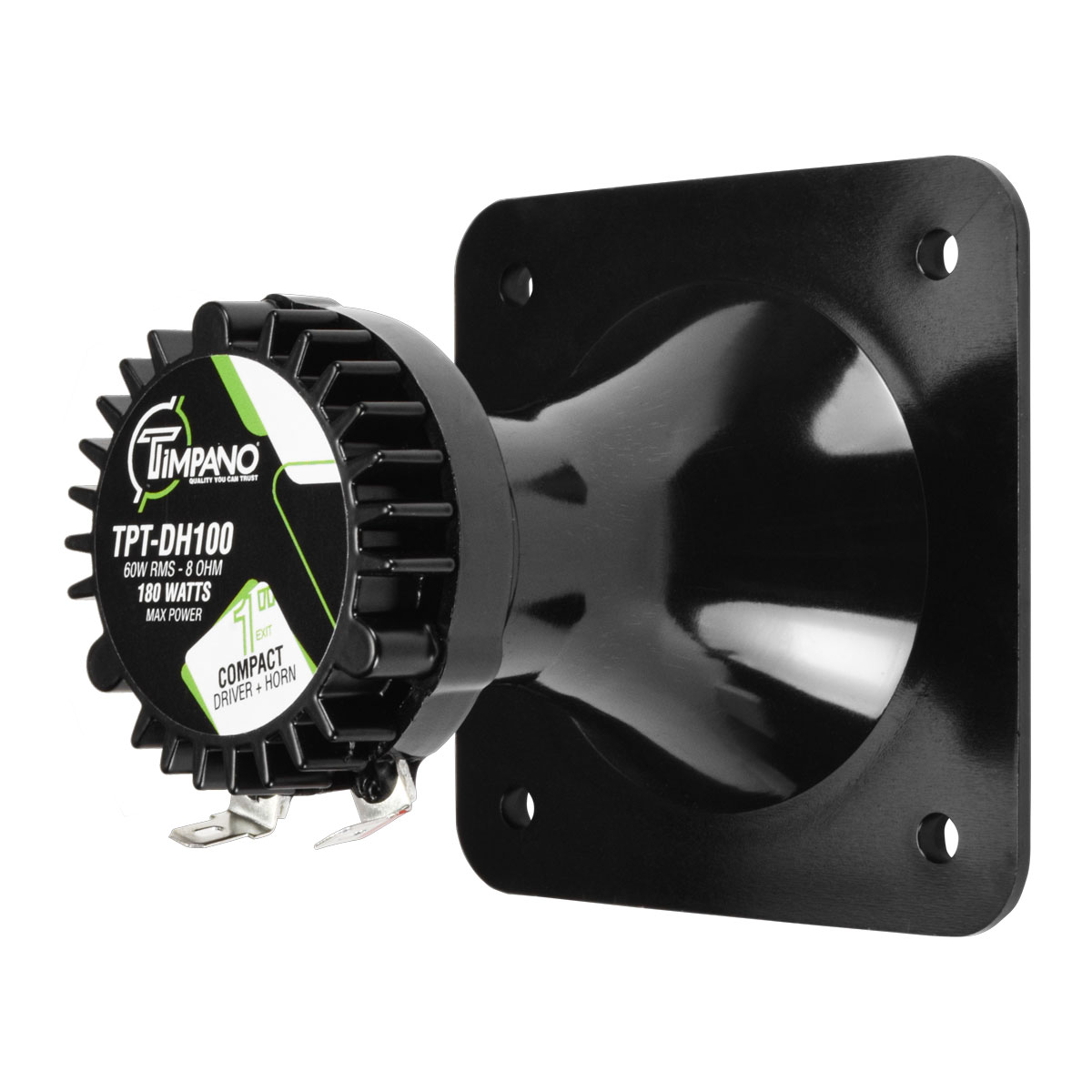

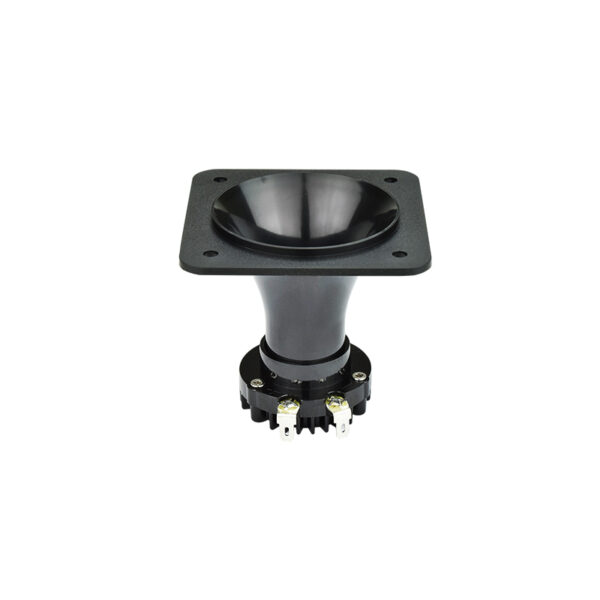

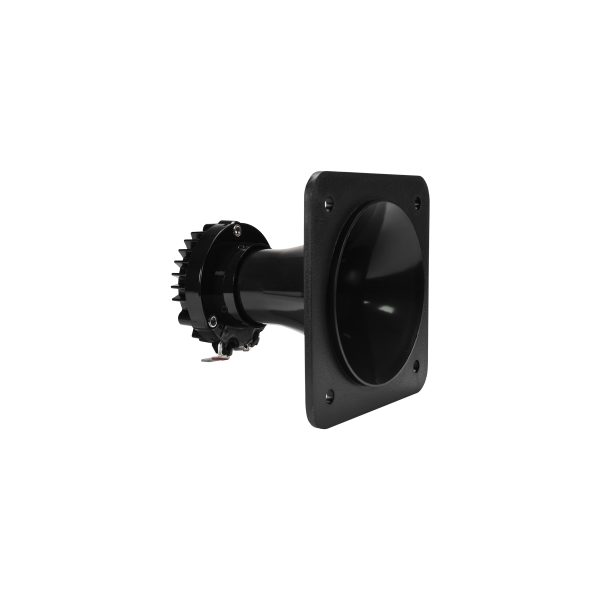

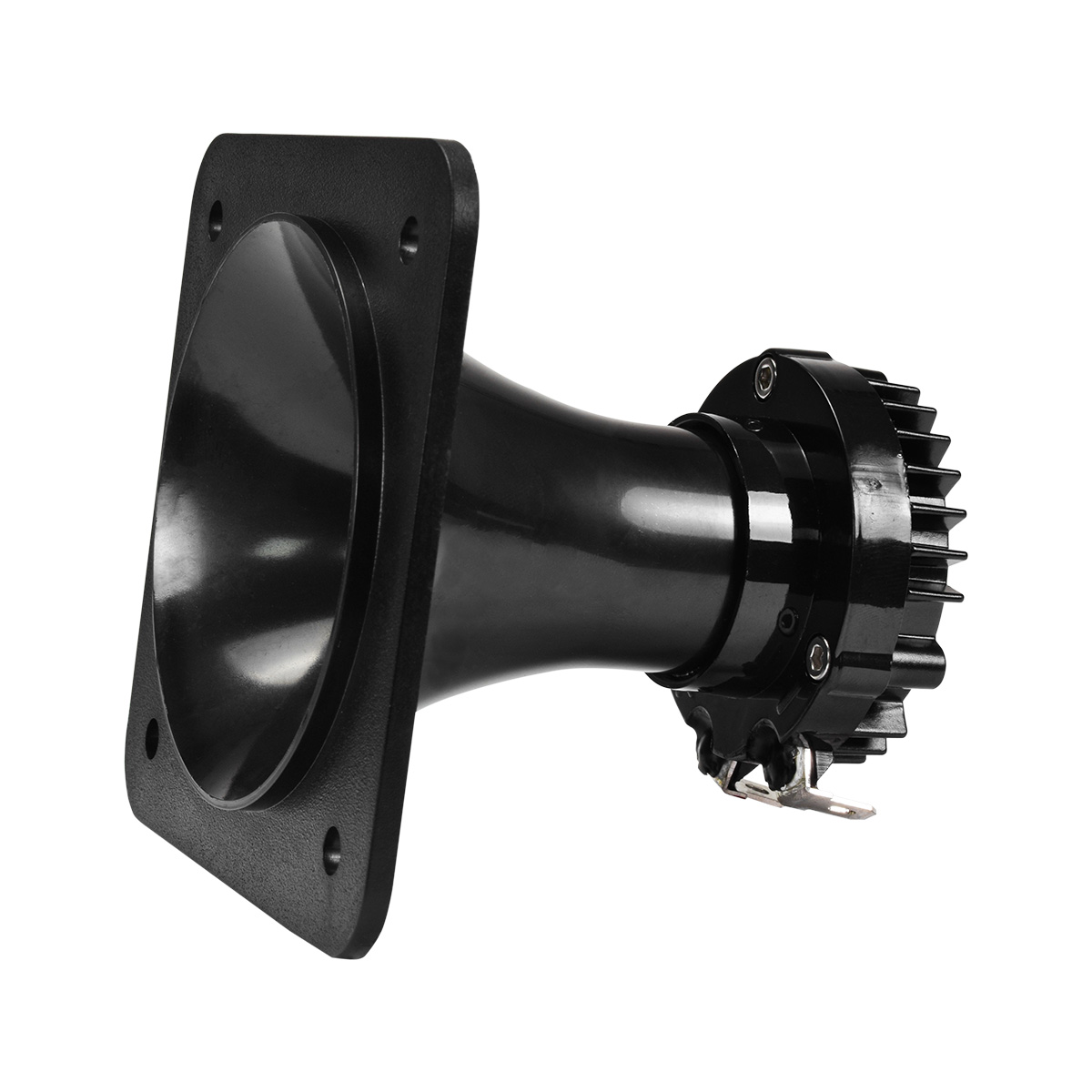

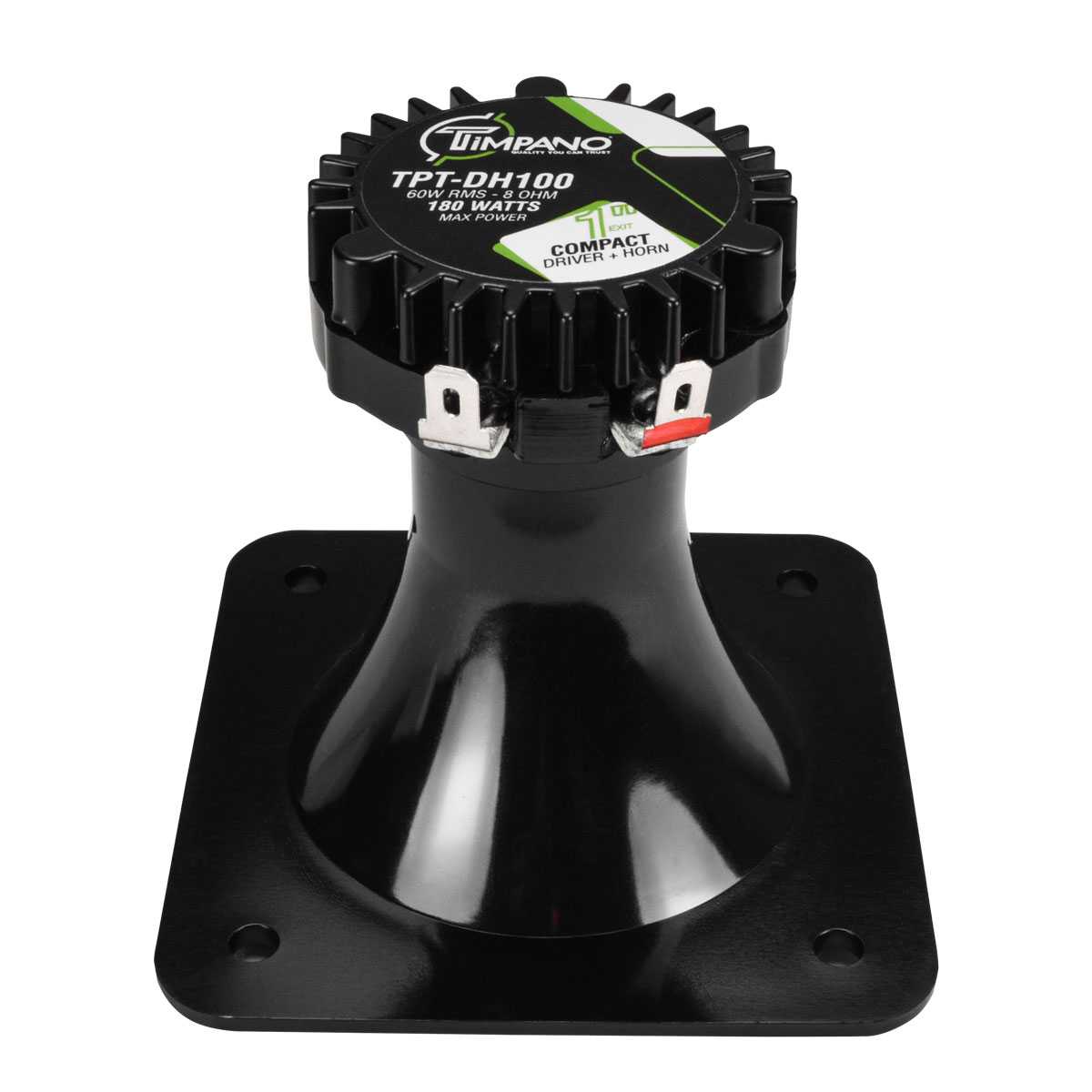

1″ Exit Neodymium Driver + Plastic Horn
200 Watts Max Power
1,500 – 18,000 Hz / 106 dB

In stock

PRICE FOR SINGLE UNIT

SKU: TPT-DH100 Category:

Description

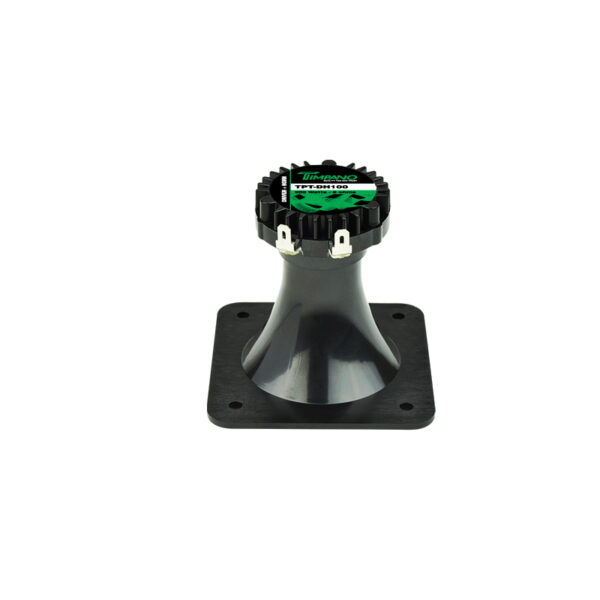

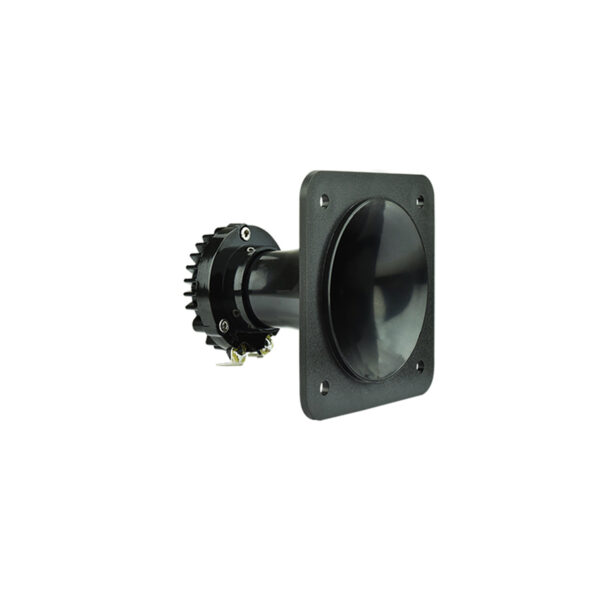

TPT-DH100 1″ Exit Neodymium Driver + Plastic Horn Car Audio | Pro Audio

The TPT-DH100 compact horn loaded tweeter weighs less than 1/2 pound but has enough output capability to keep up with high SPL sound systems. A 1″ phenolic diaphragm is used to produce a smooth and natural response all the way up to 18,000 Hz. The horn loaded design controls dispersion and increases output to put the sound right where you need it.

With a compact neodymium motor, this high frequency driver weighs less than 1/2 pound without sacrificing efficiency or overall output capability. The low weight and compact design make this the ideal tweeter for installation into car doors and trunk lids.

  • Less than 1/2 lb for easy installation in car doors and trunk lids
  • 106 dB sensitivity for high output even with moderate power
  • Naturally damped phenolic diaphragm produces smooth high frequency response

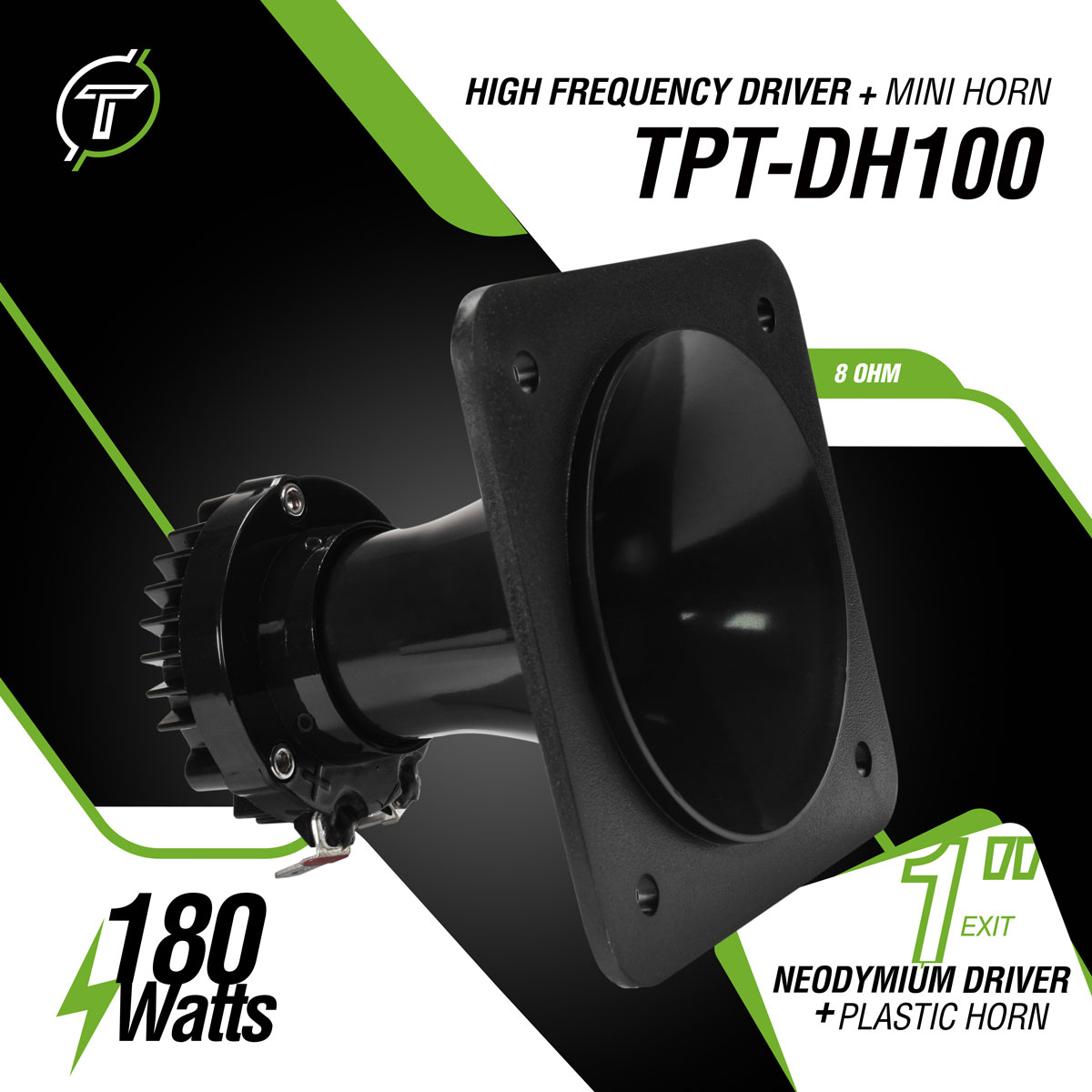

Specs:
200 Watts Max Power
60 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 106 dB
Frequency Response: 1.5KHz – 18KHz
1″ Voice Coil
Phenolic Diaphragm
Recommended High Pass Filter:
1600 Hz under 90 Watts of Amplifier RMS Power with 18dB Slope
1800 Hz under 60 Watts of Amplifier RMS Power with 12dB Slope

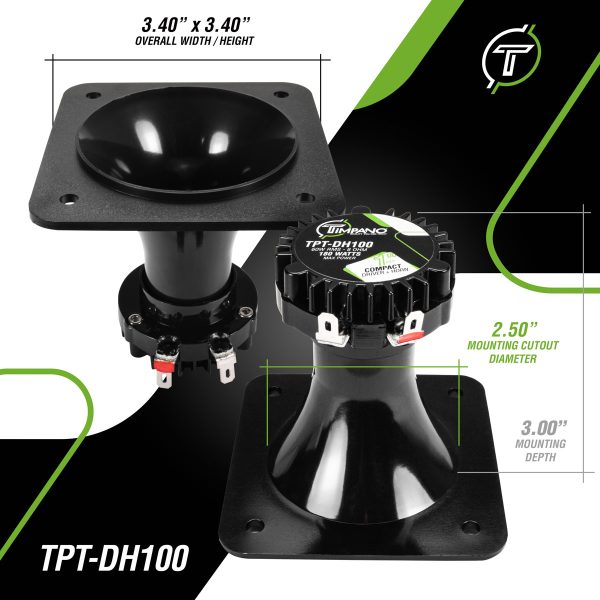

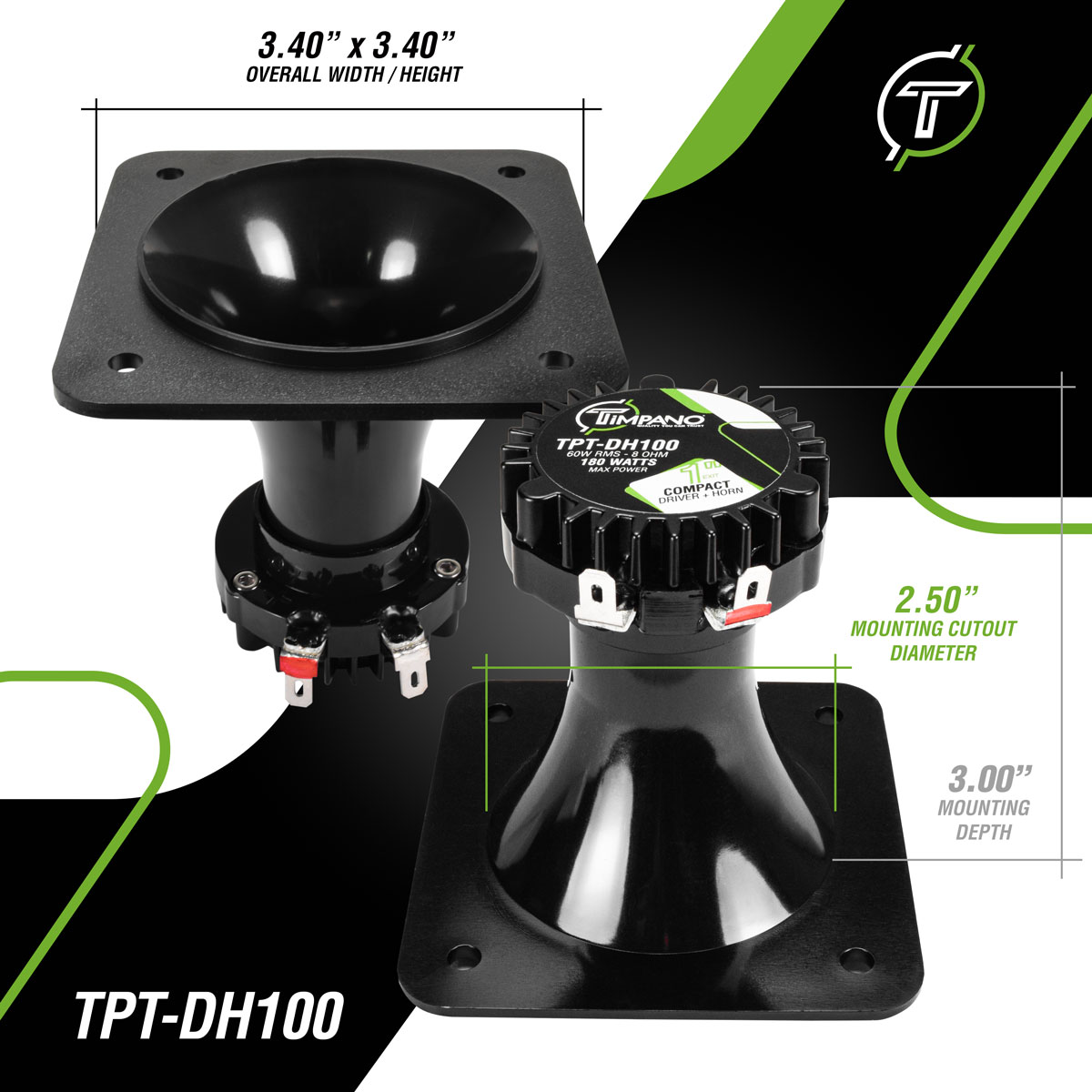

Sizing:
Mounting Depth: 3.00″
Mounting Cutout Diameter: 2.50″
Overall Size: 3.4″ x 3.4″ x 3″
Weight: 0.40 Lbs
