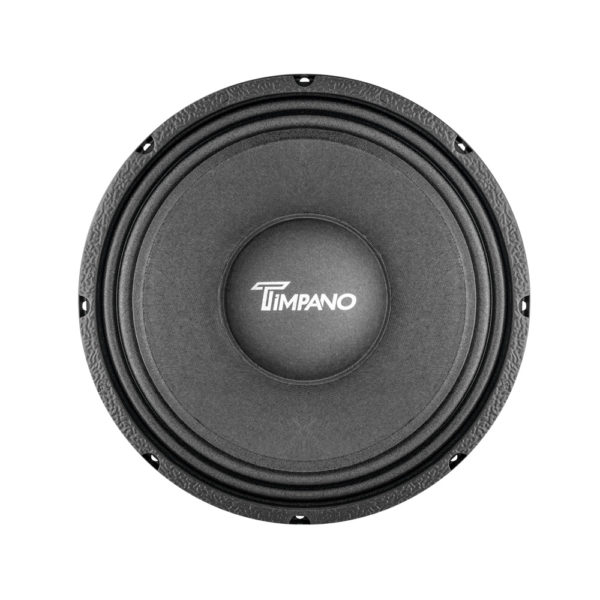

TPT-MD10 – 10″ PRO Audio Midbass Speaker

Timpano’s TPT-MD10 is a midbass loudspeaker designed for use in sealed enclosures, but would also work well in any system where high efficiency or high output is the goal. This driver has been painstakingly voiced to create a natural tone with low distortion at high levels.

When looking for a pro audio midbass speaker, the MD series is the obvious choice; combining power, sound clarity, and reliability.

Excellent for midbass, vocal reproduction, and musical instrument applications, the TPT-MD10 10″ speaker has the power and reliability to cope with any pro sound demand.

• 800 watt max musical power handling for tremendous output levels
• Designed to work great in sealed and vented enclosures
• 97 dB sensitivity – Smooth response through the mid-bass and vocal range

The TPT-MD10 is a popular 10″ midbass speaker built like a professional midbass, but has been designed for use in the car audio market.

Designated at 8 Ohm impedance to work great with our high power amplifiers, where you can install multiple speakers on a single system amplifier, you can easily wire 8x speakers in parallel to a TPT-5000 at 1 Ohm or 4x speaker into a TPT-2200 at 2 Ohm. Taking your custom system to the maximum output level, where you can drive with the windows down and still have your music heard over down on the block.

Specs:
800 Watts Max Power
375 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 97 dB
Frequency Response: 75- 5,500Hz
Voice Coil: 2.5”
Steel Basket with High Strength Ferrite Magnet
Recommended High Pass Filter with TPT-SP4BT DSP:
125 Hz under 500 Watts of Amplifier RMS Power with 18dB Slope
120 Hz under 375 Watts of Amplifier RMS Power with 12dB Slope
Sizing:
Mounting depth: 4.36”
Mounting Cutout Diameter: 9.25”
Overall Diameter: 10.14”
Weight: 10.49 Lbs

Original Manufacturer Replacement recone kit that Maintains Peak Performance are available: TPT-RPMD10
